Description
Description
The Modern Flames Orion Slim Series is a line of linear electric fireplaces engineered for recessed or wall-mounted installation in residential and light commercial interior applications. The series is designed around a slim-profile firebox to accommodate installations where wall cavity depth is limited, while maintaining a wide linear viewing area.
All Orion Slim models operate as electric fireplaces and do not require gas connections, venting, or combustion air. Flame presentation is produced using Heliovision™ Flame Technology, which utilizes layered LED lighting to generate multi-dimensional flame effects. Integrated lighting systems allow independent adjustment of flame and ember bed illumination as supported by the control system.
Each model includes an integrated electric heater rated at 5,000 BTU for supplemental zone heating where permitted. Installation configurations include fully recessed flush-mount installations within framed wall openings or surface wall-mounted installations using manufacturer-approved hardware. Final installation dimensions, framing requirements, electrical specifications, and clearances must be verified against the individual model specification sheets prior to rough-in.

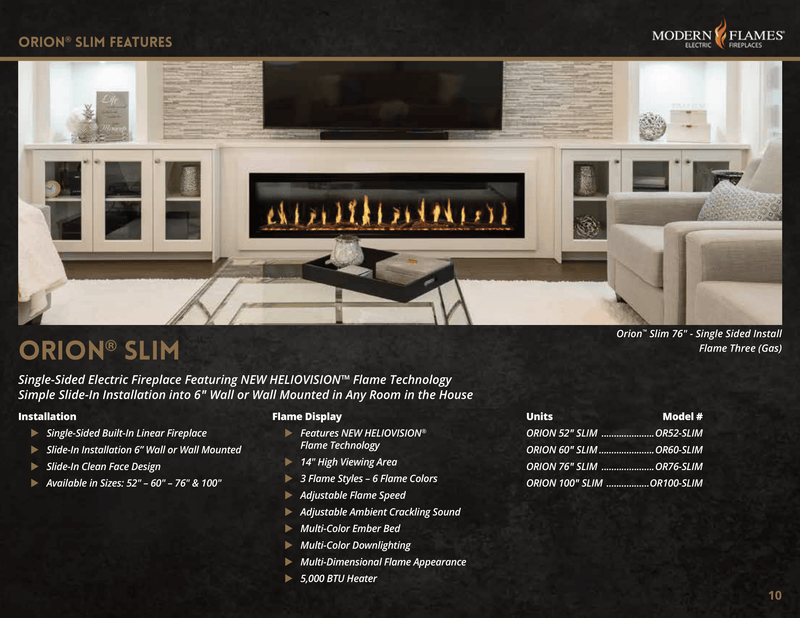

Highlights
- Linear electric fireplace series with multiple width options
- Recessed or wall-mounted installation configurations
- Slim-profile firebox designed for shallow wall applications
- Heliovision™ LED flame technology
- Supplemental electric heater rated at 5,000 BTU
- No venting, gas supply, or combustion air required

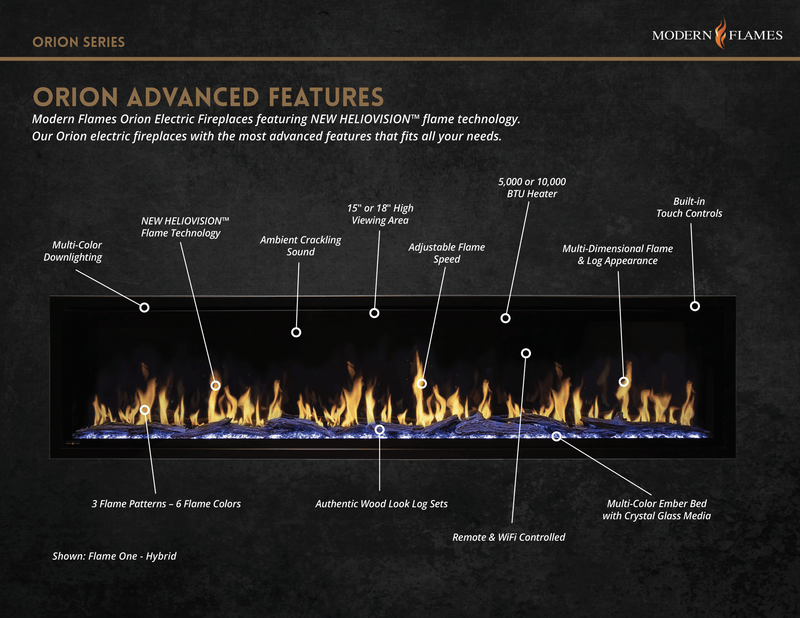

Features
- Electric Fireplace System: Operates using electric flame, lighting, and heating components without combustion.
- Heliovision™ Flame Technology: Layered LED flame system designed to produce depth and dimensionality across the linear viewing area.
- Independent Lighting Control: Flame, ember bed, and downlighting can be adjusted independently as supported by the control system.
- Supplemental Heating: Integrated electric heater rated at 5,000 BTU for zone heating applications.
- Dual Installation Methods: Supports recessed flush-mount or wall-mounted installations.
- Slim Firebox Design: Reduced overall depth to support installations with limited wall cavity depth.

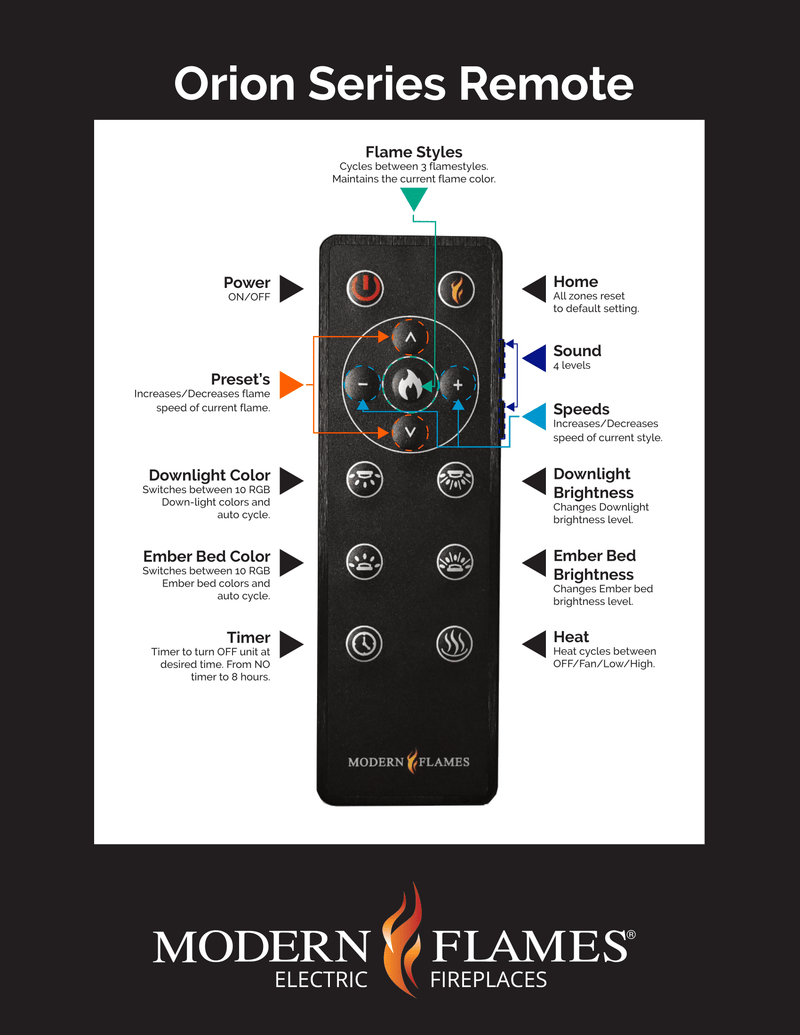

- Control Options: Operable via included remote control and on-unit touch controls as documented.

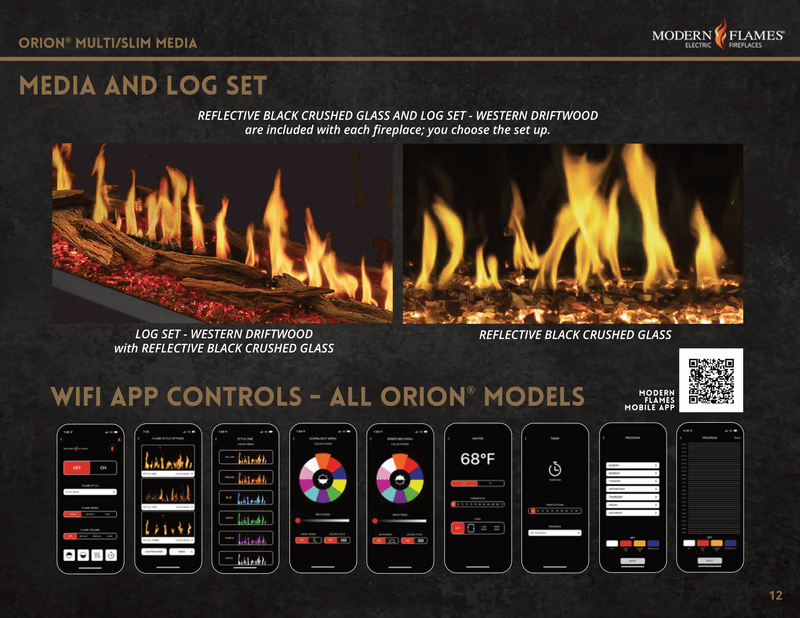

- Included Media: Supplied with manufacturer-approved decorative media as specified per model documentation.

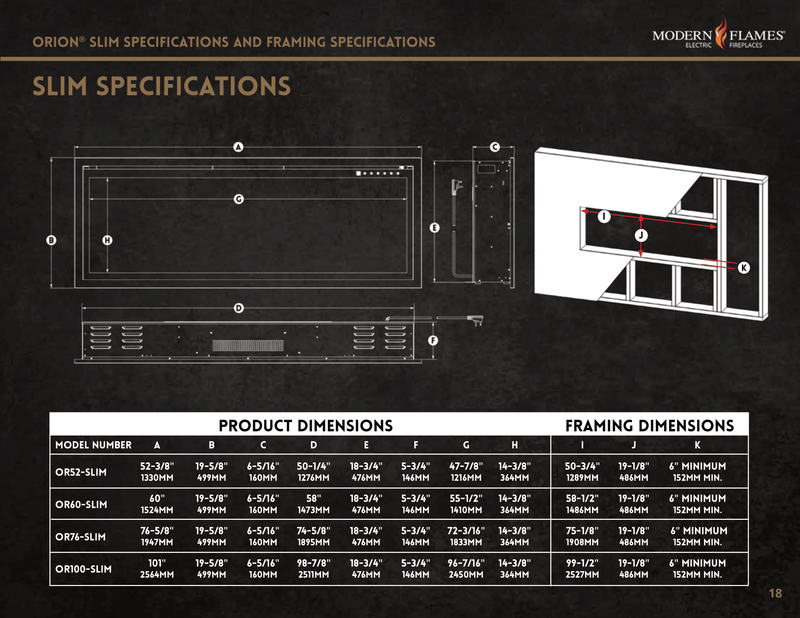

Specifications

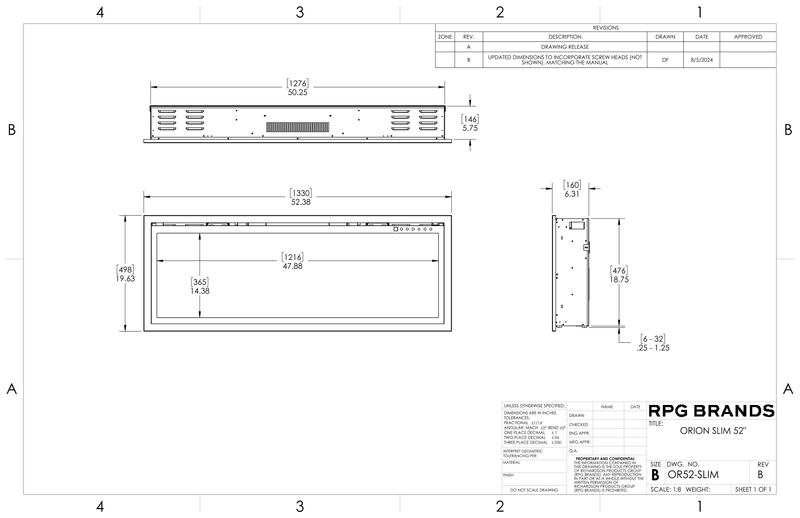

OR52-SLIM
| Nominal Width | 52" |
| Overall Dimensions (W × H × D) | 53.00" × 19.63" × 5.75" |
| Viewing Area Height | 14.38" |
| Framing Dimensions (W × H × D) | 51.50" × 19.13" × 6" |
| Heating Output | 5,000 BTU |
| Electrical | 120V, 60Hz |

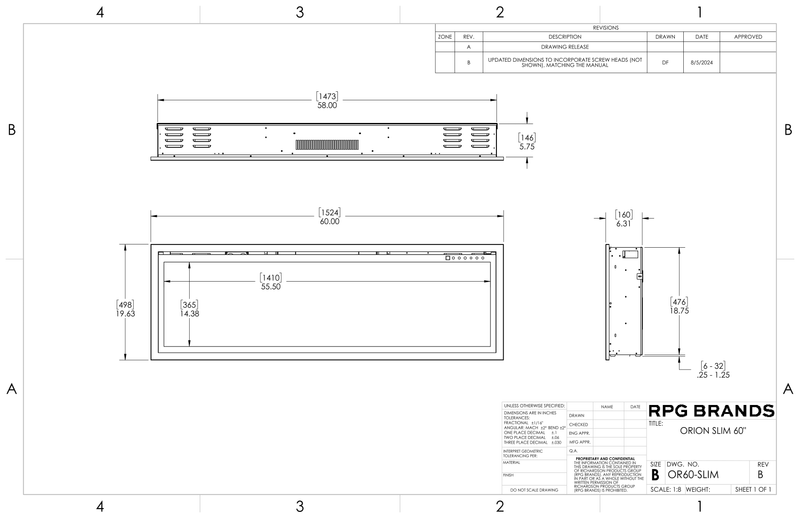

OR60-SLIM
| Nominal Width | 60" |
| Overall Dimensions (W × H × D) | 61.00" × 19.63" × 5.75" |
| Viewing Area Height | 14.38" |
| Framing Dimensions (W × H × D) | 59.50" × 19.13" × 6" |
| Heating Output | 5,000 BTU |
| Electrical | 120V, 60Hz |

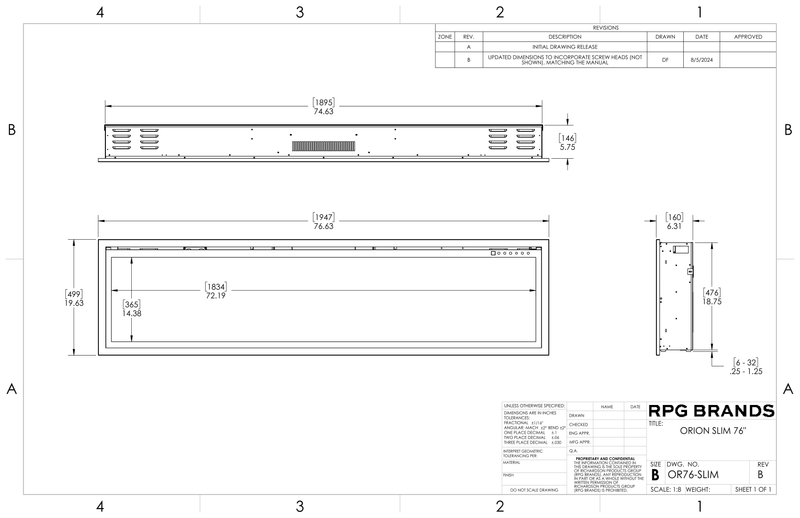

OR76-SLIM
| Nominal Width | 76" |
| Overall Dimensions (W × H × D) | 77.00" × 19.63" × 5.75" |
| Viewing Area Height | 14.38" |
| Framing Dimensions (W × H × D) | 75.50" × 19.13" × 6" |
| Heating Output | 5,000 BTU |
| Electrical | 120V, 60Hz |

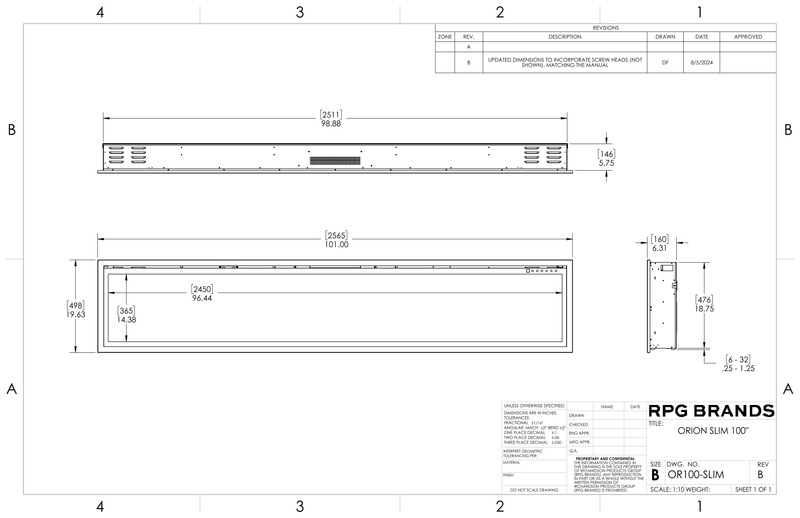

OR100-SLIM
| Nominal Width | 100" |
| Overall Dimensions (W × H × D) | 101.00" × 19.63" × 5.75" |
| Viewing Area Height | 14.38" |
| Framing Dimensions (W × H × D) | 99.50" × 19.13" × 6" |
| Heating Output | 5,000 BTU |
| Electrical | 120V, 60Hz |
All dimensions, electrical requirements, clearances, and installation constraints must be verified against the model-specific documentation prior to installation.
