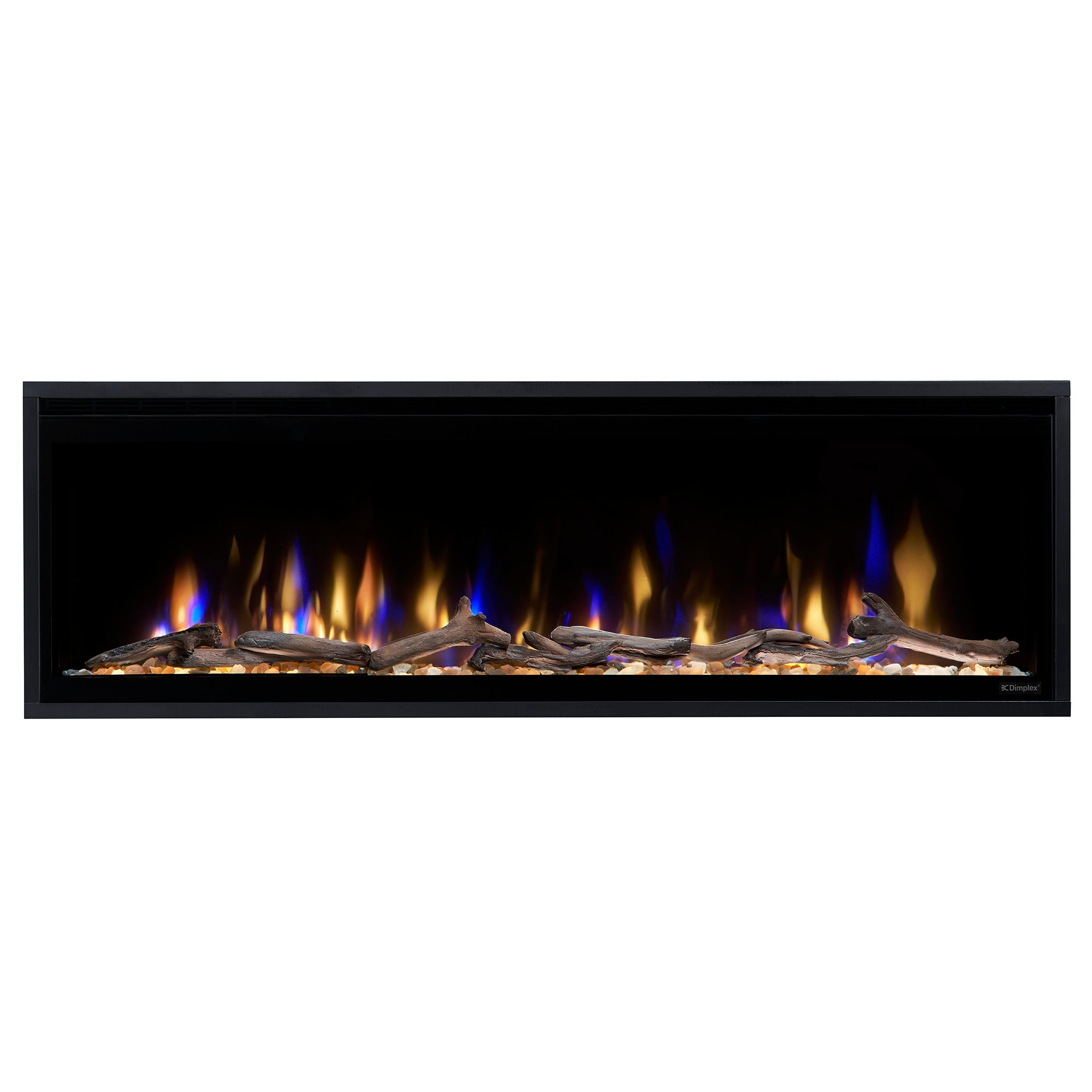

Dimplex Ignite Evolve Built In Linear Electric Fireplace
Dimplex Ignite Evolve Built In Linear Electric Fireplace
Original price
$4,099.99
Original price
$4,099.99
-
Original price
$5,739.99
Original price
$4,099.99
Current price
$3,599.99
$3,599.99
-
$5,239.99
Current price
$3,599.99
Create a clean edgeless fireplace with vivid Multi-Fire flames, lifelike driftwood, and customizable lighting that keeps the focus on the fire instead of the frame.
Available to order
Talk to a Specialist Now
Speak with a product specialist before you order.
Description
Dimplex Ignite Evolve Built In Linear Electric Fireplace is a linear electric fireplace available in 50", 60", 74", and 100" sizes for indoor or sheltered outdoor installation. The firebox fully recesses into 2x6 construction for an edge-to-edge appearance and can also be partially recessed into 2x4 framing. It supports 120V plug-in or hardwired installation and 240V hardwired installation, requires no venting, and includes trim for drywall and tile applications.
The Ignite Evolve combines the Multi-Fire flame effect with adjustable flame speed, seven flame themes, customizable ember-bed lighting, and an ambient light sensor that adjusts fireplace lighting to surrounding conditions. Comfort$aver heating provides supplemental heat for up to 1,000 sq. ft., while flame effects can operate independently from the heater for year-round use. Settings are controlled through the Flame Connect app, multifunction remote, or hidden touch controls, with integrated self-diagnostics for operating and maintenance feedback.
What’s Included
- Multifunction IR remote control, medium and large acrylic crystals, driftwood logs, tumbled glass embers, mirrored glass, front glass, standard finishing trim for drywall and tile applications, power cord, installation hardware, bubble level, wire connectors, wire ties, and installation/user guide. EVO60, EVO74, and EVO100 also include a suction cup for glass handling.
Features
- Indoor and Outdoor Installation – Certified for indoor use and sheltered outdoor installation when installed according to Dimplex outdoor requirements.
- Built In 2x6 Installation – Fully recesses into 2x6 construction for an integrated edge-to-edge installation.
- Partially Recessed 2x4 Installation – Can be partially recessed into 2x4 framing, with model-specific XLF trim kits available for the protruding portion.
- Multi-Fire Flame Effect – Uses Dimplex Multi-Fire technology with seven selectable flame themes.
- Five Flame Speeds – Adjust the flame movement through five different speed settings.
- Customizable Media Lighting – Eight mood settings provide multiple colors, cycling effects, and a Midnight mode.
- Ambient Light Sensor – Automatically adjusts fireplace lighting brightness according to ambient room light.
- Comfort$aver Heating – Provides on-demand supplemental heating for up to 1,000 sq. ft. while automatically adjusting heater operation around the thermostat setting.
- Four Heat Modes – Choose Normal, Heat Boost, Eco, or fan-only operation.
- Year-Round Flame Operation – Flame and media effects can operate independently from the heater.
- Flame Connect App Control – Control and personalize fireplace settings through the Dimplex Flame Connect mobile app.
- Remote and Hidden Controls – Includes a multifunction remote along with hidden touch controls built into the fireplace.
- Smart Self-Diagnostics – Integrated technology provides operating and maintenance feedback.
- 120V or 240V Connection – Supports 120V plug-in or hardwired installation and 240V hardwired installation.

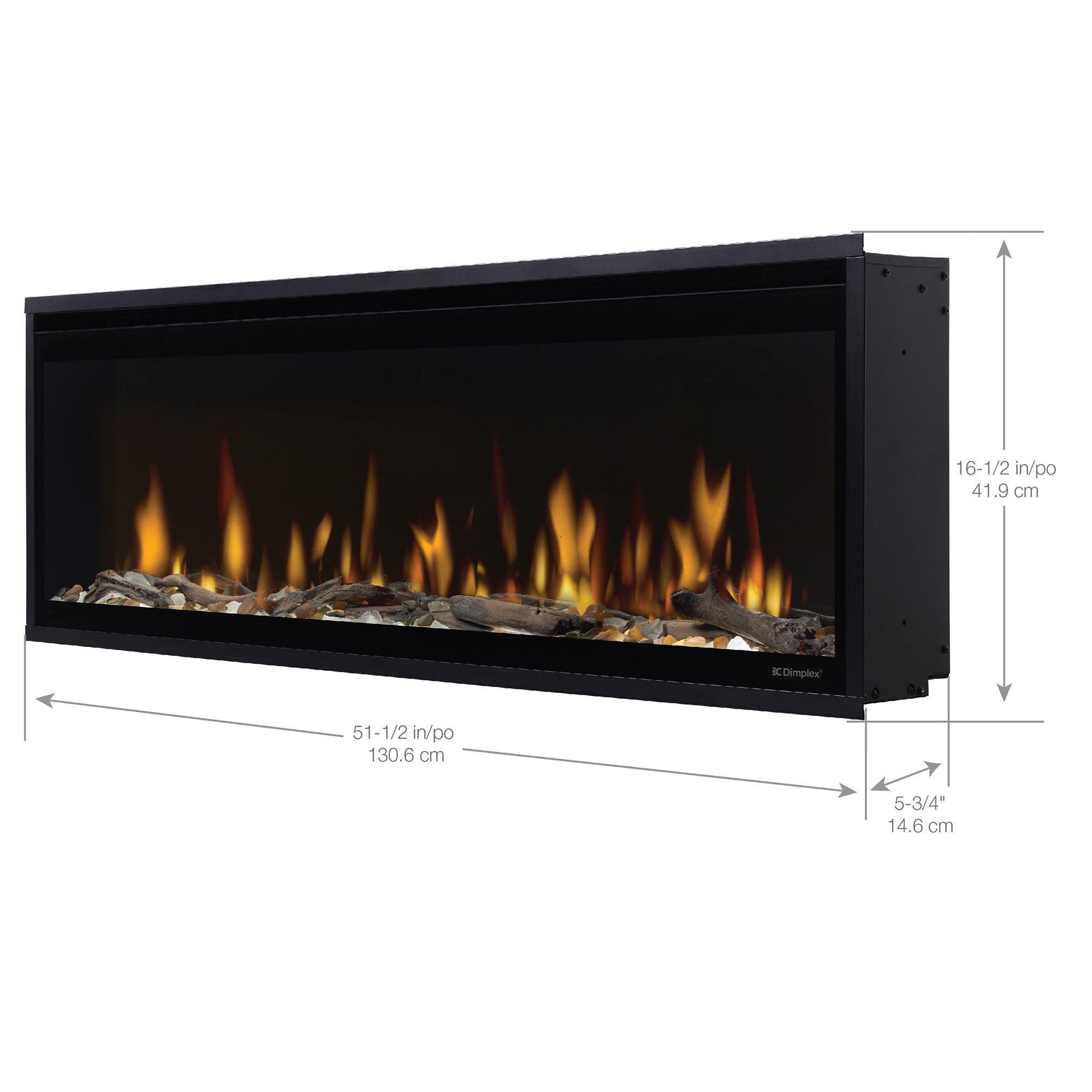

Dimensions
Model EVO50 - 50"
- Overall Dimensions
- 51-3/8" W X 16-1/2" H X 5-3/4" D
- Framing Dimensions
- 50-5/8" W X 16" H X 3-1/2" D (2x4) / 5-1/2" D (2x6)
- Viewing Area
- 48-3/4" W X 11-3/4" H
- Width
- 50"
Model EVO60 - 60"
- Overall Dimensions
- 61-1/4" W X 16-1/2" H X 5-3/4" D
- Framing Dimensions
- 60-5/8" W X 16" H X 3-1/2" D (2x4) / 5-1/2" D (2x6)
- Viewing Area
- 58-3/4" W X 11-3/4" H
- Width
- 60"
Model EVO74 - 74"
- Overall Dimensions
- 75-3/8" W X 16-1/2" H X 5-3/4" D
- Framing Dimensions
- 74-5/8" W X 16" H X 3-1/2" D (2x4) / 5-1/2" D (2x6)
- Viewing Area
- 72-3/4" W X 11-3/4" H
- Width
- 74"
Model EVO100 - 100"
- Overall Dimensions
- 101-3/8" W X 16-1/2" H X 5-3/4" D
- Framing Dimensions
- 100-5/8" W X 16" H X 3-1/2" D (2x4) / 5-1/2" D (2x6)
- Viewing Area
- 98-3/4" W X 11-3/4" H
- Width
- 100"
Specifications
Model EVO50 - 50"
- Fuel Type
- Electric
- Installation Type
- Built In, Partially Recessed
- Style
- Linear
- Weight
- 84.9 lbs
- BTU Output
- 5,118 - 8,530 BTU
- Heating Capacity
- Heats up to 1,000 sq. Ft.
- Electrical Requirements
- 120V Plug-In, 120V Hardwired, 240V Hardwired
- Voltage
- 120V / 240V
- Amps
- 12.5 Amps at 120V / 10.4 Amps at 240V
- Watts
- 1,500W at 120V / 2,500W at 240V
- Flame Effect
- Multi-Fire
- Flame Themes
- 7
- Flame Speed
- 5 Settings
- Media Bed Mood Themes
- 8
- Brightness Modes
- High, Low, High with Flicker, Low with Flicker
- Ambient Light Sensor
- Yes
- Thermostat Range
- 45°F–86°F
- Heat Modes
- Normal, Heat Boost, Eco, Fan
- Heat-Free Operation
- Yes
- Heat-Only Operation
- Yes
- Control Methods
- Flame Connect App, Multifunction IR Remote, Hidden Touch Controls
- Timer
- 30 Minutes–8 Hours in 30-Minute Intervals
- Smart Self-Diagnostics
- Yes
- Liner
- Steel
- Heating Type
- Louver-Less Fan-Forced Circulation
- Recommended Circuit
- Dedicated Properly Fused 15 Amp Circuit
- Standard Finish Installation
- Trim Included for Drywall and Tile
- Solid Finish Installation
- Can Install Without Trim to Stone, Brick, and Other Solid Finish Materials
- Outdoor Installation Requirement
- Sheltered by an Overhang to Protect Against Direct Water Ingress
Model EVO60 - 60"
- Fuel Type
- Electric
- Installation Type
- Built In, Partially Recessed
- Style
- Linear
- Weight
- 99.7 lbs
- BTU Output
- 5,118 - 8,530 BTU
- Heating Capacity
- Heats up to 1,000 sq. Ft.
- Electrical Requirements
- 120V Plug-In, 120V Hardwired, 240V Hardwired
- Voltage
- 120V / 240V
- Amps
- 12.5 Amps at 120V / 10.4 Amps at 240V
- Watts
- 1,500W at 120V / 2,500W at 240V
- Flame Effect
- Multi-Fire
- Flame Themes
- 7
- Flame Speed
- 5 Settings
- Media Bed Mood Themes
- 8
- Brightness Modes
- High, Low, High with Flicker, Low with Flicker
- Ambient Light Sensor
- Yes
- Thermostat Range
- 45°F–86°F
- Heat Modes
- Normal, Heat Boost, Eco, Fan
- Heat-Free Operation
- Yes
- Heat-Only Operation
- Yes
- Control Methods
- Flame Connect App, Multifunction IR Remote, Hidden Touch Controls
- Timer
- 30 Minutes–8 Hours in 30-Minute Intervals
- Smart Self-Diagnostics
- Yes
- Liner
- Steel
- Heating Type
- Louver-Less Fan-Forced Circulation
- Recommended Circuit
- Dedicated Properly Fused 15 Amp Circuit
- Standard Finish Installation
- Trim Included for Drywall and Tile
- Solid Finish Installation
- Can Install Without Trim to Stone, Brick, and Other Solid Finish Materials
- Outdoor Installation Requirement
- Sheltered by an Overhang to Protect Against Direct Water Ingress
Model EVO74 - 74"
- Fuel Type
- Electric
- Installation Type
- Built In, Partially Recessed
- Style
- Linear
- Weight
- 116.8 lbs
- BTU Output
- 5,118 - 8,530 BTU
- Heating Capacity
- Heats up to 1,000 sq. Ft.
- Electrical Requirements
- 120V Plug-In, 120V Hardwired, 240V Hardwired
- Voltage
- 120V / 240V
- Amps
- 12.5 Amps at 120V / 10.4 Amps at 240V
- Watts
- 1,500W at 120V / 2,500W at 240V
- Flame Effect
- Multi-Fire
- Flame Themes
- 7
- Flame Speed
- 5 Settings
- Media Bed Mood Themes
- 8
- Brightness Modes
- High, Low, High with Flicker, Low with Flicker
- Ambient Light Sensor
- Yes
- Thermostat Range
- 45°F–86°F
- Heat Modes
- Normal, Heat Boost, Eco, Fan
- Heat-Free Operation
- Yes
- Heat-Only Operation
- Yes
- Control Methods
- Flame Connect App, Multifunction IR Remote, Hidden Touch Controls
- Timer
- 30 Minutes–8 Hours in 30-Minute Intervals
- Smart Self-Diagnostics
- Yes
- Liner
- Steel
- Heating Type
- Louver-Less Fan-Forced Circulation
- Recommended Circuit
- Dedicated Properly Fused 15 Amp Circuit
- Standard Finish Installation
- Trim Included for Drywall and Tile
- Solid Finish Installation
- Can Install Without Trim to Stone, Brick, and Other Solid Finish Materials
- Outdoor Installation Requirement
- Sheltered by an Overhang to Protect Against Direct Water Ingress
Model EVO100 - 100"
- Fuel Type
- Electric
- Installation Type
- Built In, Partially Recessed
- Style
- Linear
- Weight
- 159.3 lbs
- BTU Output
- 5,118 - 8,530 BTU
- Heating Capacity
- Heats up to 1,000 sq. Ft.
- Electrical Requirements
- 120V Plug-In, 120V Hardwired, 240V Hardwired
- Voltage
- 120V / 240V
- Amps
- 12.5 Amps at 120V / 10.4 Amps at 240V
- Watts
- 1,500W at 120V / 2,500W at 240V
- Flame Effect
- Multi-Fire
- Flame Themes
- 7
- Flame Speed
- 5 Settings
- Media Bed Mood Themes
- 8
- Brightness Modes
- High, Low, High with Flicker, Low with Flicker
- Ambient Light Sensor
- Yes
- Thermostat Range
- 45°F–86°F
- Heat Modes
- Normal, Heat Boost, Eco, Fan
- Heat-Free Operation
- Yes
- Heat-Only Operation
- Yes
- Control Methods
- Flame Connect App, Multifunction IR Remote, Hidden Touch Controls
- Timer
- 30 Minutes–8 Hours in 30-Minute Intervals
- Smart Self-Diagnostics
- Yes
- Liner
- Steel
- Heating Type
- Louver-Less Fan-Forced Circulation
- Recommended Circuit
- Dedicated Properly Fused 15 Amp Circuit
- Standard Finish Installation
- Trim Included for Drywall and Tile
- Solid Finish Installation
- Can Install Without Trim to Stone, Brick, and Other Solid Finish Materials
- Outdoor Installation Requirement
- Sheltered by an Overhang to Protect Against Direct Water Ingress
