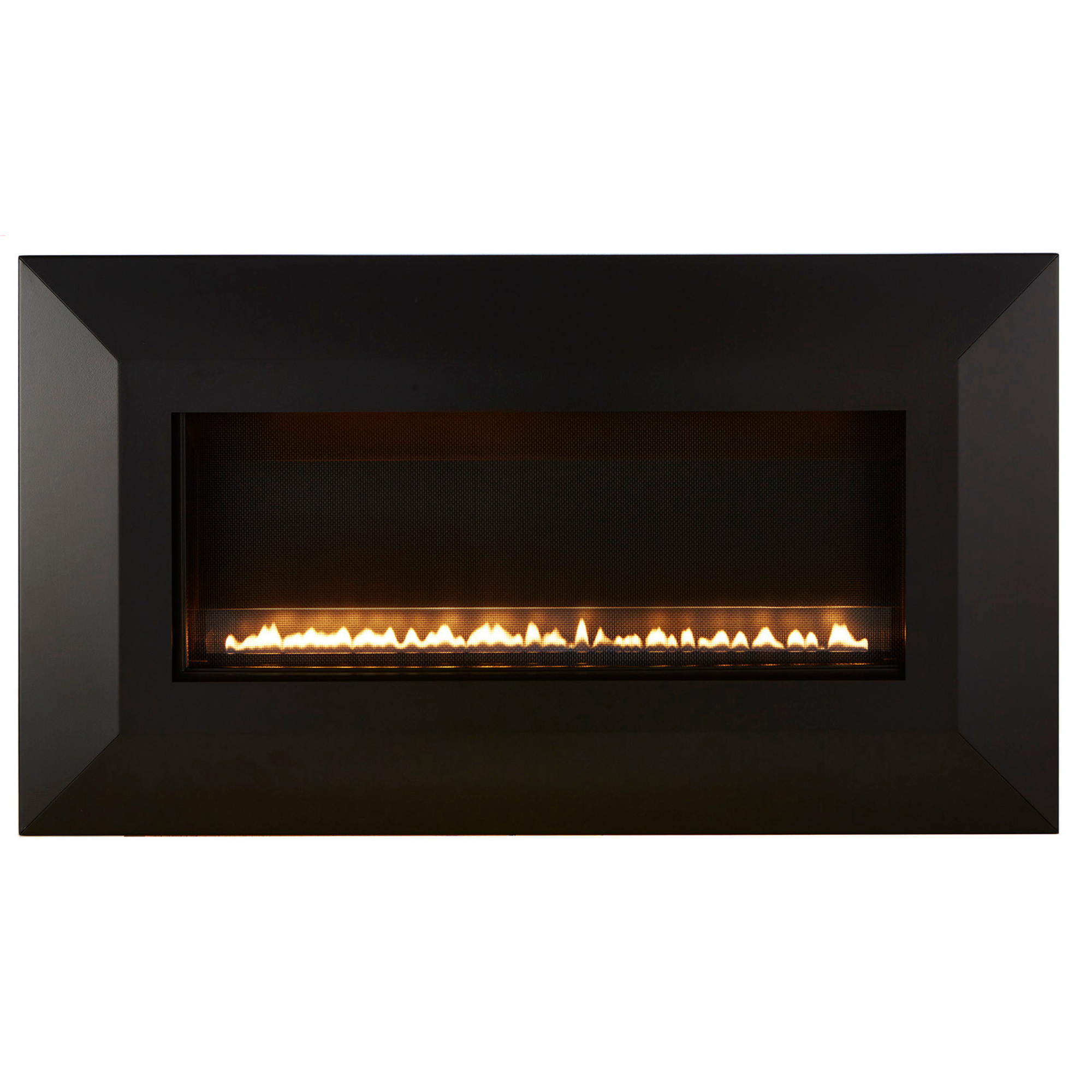

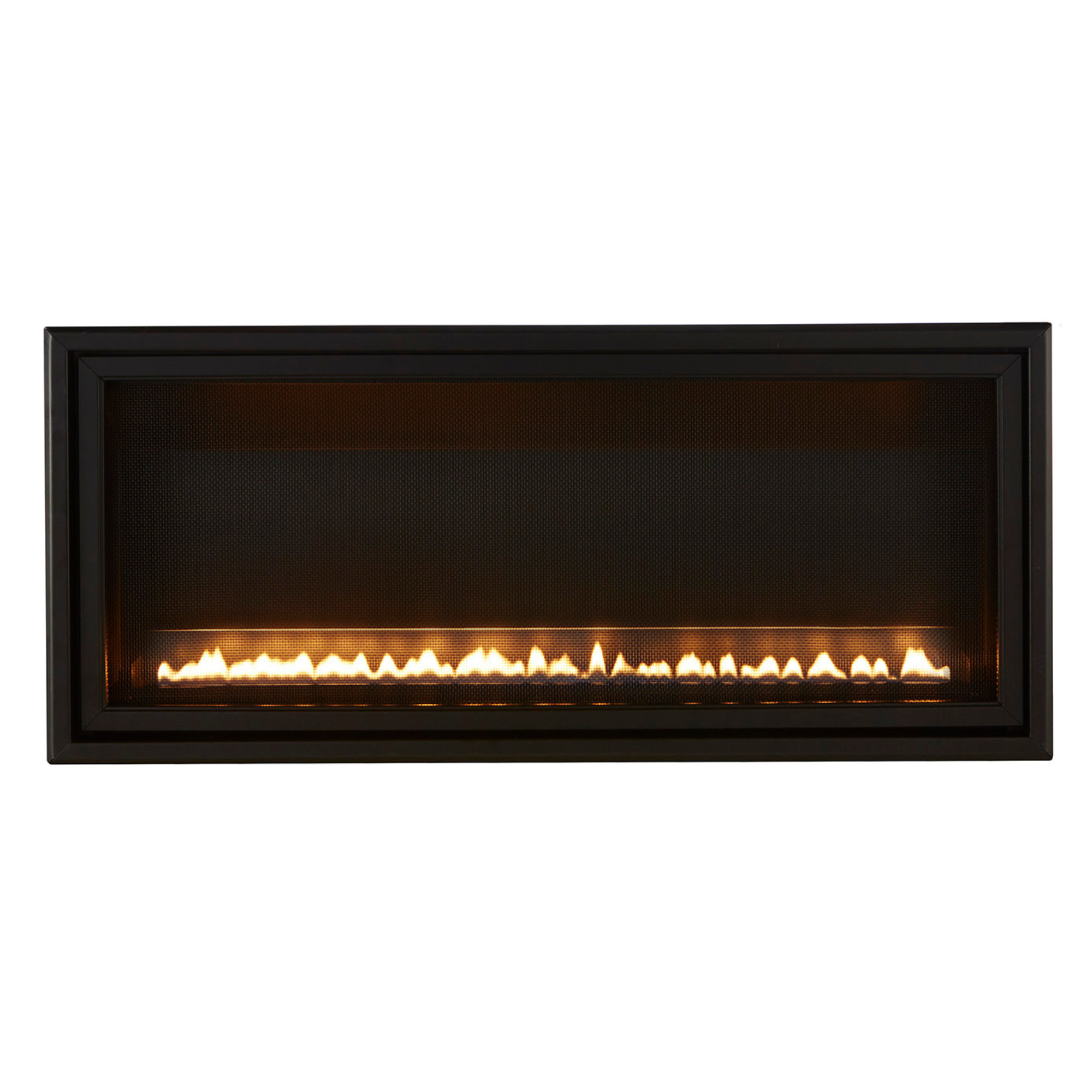

Empire Boulevard Slim Line 30" Linear Vent Free Gas Fireplace
Empire Boulevard Slim Line 30" Linear Vent Free Gas Fireplace
Description
The Empire Boulevard Slim Line 30" Linear Vent Free Gas Fireplace is a contemporary gas fireplace designed around a slim 5 1/2-inch-deep firebox that supports surface-mounted, partially recessed, or fully recessed installation. The Boulevard Slim Line can be partially recessed into a 2 x 4 framed wall or fully recessed into a 2 x 6 framed wall for a clean built-in appearance. Its linear burner, matte black rear panel, and tempered-glass deflector create a wide, contemporary flame presentation.
The Boulevard Slim Line is available in dedicated Natural Gas and Propane configurations with standard or 10,000 BTU output options. Standard models deliver up to 14,000 BTU with Natural Gas or 12,000 BTU with Propane, while reduced-output models are rated at 10,000 BTU for either fuel type. Every Boulevard Slim Line uses electronic intermittent pilot ignition and includes battery backup, an on/off wall switch, non-combustible board for recessed installations, and a fine mesh barrier screen.
What’s Included
- Fireplace, glass panel, non-combustible board for partially and fully recessed installations, on/off wall switch with 10 ft. extension wire and cover, battery pack with 10 ft. extension wire, four AA batteries, AC power adaptor, gas flexline, fine mesh barrier screen, snap-in receptacle, nailing flanges, and installation hardware.
Features
- Slim 5 1/2-Inch Firebox – Allows the fireplace to be fully recessed into a 2 x 6 framed wall.
- Three Installation Configurations – Supports surface-mounted, partially recessed, and fully recessed installations.
- Up to 14,000 BTU – Standard models produce up to 14,000 BTU with Natural Gas or 12,000 BTU with Propane.
- 10,000 BTU Models Available – Reduced-output Natural Gas and Propane configurations are both rated at 10,000 BTU.
- Electronic Intermittent Pilot Ignition – Eliminates the need for a continuously burning standing pilot.
- Contemporary Linear Flame Presentation – A linear burner is positioned against a matte black rear panel with a tempered-glass deflector at the front.
- Battery Backup – Included battery backup allows fireplace operation during a power outage.
- Oxygen Depletion Safety System – Pilot safety system shuts down the fireplace when adequate fresh air is not available.
- Fine Mesh Barrier Screen – Included barrier helps prevent accidental contact with the fireplace opening.
Dimensions
Model VFSL30FP70N - Natural Gas / Standard Output
- Overall Dimensions
- 30 1/4" W X 17 7/8" H X 5 1/2" D
- Framing Dimensions
- Partially Recessed: 30 3/4" W X 18" H X 3 1/2" D; Fully Recessed: 30 3/4" W X 29 1/2" H X 5 1/2" D
- Viewing Area
- 28 3/8" W X 11 3/4" H
- Width
- 30"
Model VFSL30FP7010N - Natural Gas / Reduced Output (10000 BTU)
- Overall Dimensions
- 30 1/4" W X 17 7/8" H X 5 1/2" D
- Framing Dimensions
- Partially Recessed: 30 3/4" W X 18" H X 3 1/2" D; Fully Recessed: 30 3/4" W X 29 1/2" H X 5 1/2" D
- Viewing Area
- 28 3/8" W X 11 3/4" H
- Width
- 30"
Model VFSL30FP70P - Propane / Standard Output
- Overall Dimensions
- 30 1/4" W X 17 7/8" H X 5 1/2" D
- Framing Dimensions
- Partially Recessed: 30 3/4" W X 18" H X 3 1/2" D; Fully Recessed: 30 3/4" W X 29 1/2" H X 5 1/2" D
- Viewing Area
- 28 3/8" W X 11 3/4" H
- Width
- 30"
Model VFSL30FP7010P - Propane / Reduced Output (10000 BTU)
- Overall Dimensions
- 30 1/4" W X 17 7/8" H X 5 1/2" D
- Framing Dimensions
- Partially Recessed: 30 3/4" W X 18" H X 3 1/2" D; Fully Recessed: 30 3/4" W X 29 1/2" H X 5 1/2" D
- Viewing Area
- 28 3/8" W X 11 3/4" H
- Width
- 30"
Specifications
Model VFSL30FP70N - Natural Gas / Standard Output
- Fuel Type
- Natural Gas, Propane
- Vent Type
- Vent Free
- Installation Type
- Wall Mounted, Partially Recessed, Built In
- Style
- Linear
- Weight
- 50 lbs
- Heating Capacity
- Heats up to 417 sq. ft.
- Electrical Requirements
- 20V Hardwired, 60Hz, 1 Amp
- Voltage
- 120V
- Ignition System
- Electronic Intermittent Pilot
- Flame Presentation
- Linear burner with matte black rear panel and tempered-glass deflector
- Safety System
- Pilot Light Safety System with Oxygen Depletion Sensor
- Optional Controls
- Wall thermostat, remote control thermostat, programmable remote
- Surface Mount Requirements
- Decorative front and cabinet wrap
- Partially Recessed Requirements
- Decorative front and non-combustible tile or stone finishing material
- Fully Recessed Requirements
- Non-combustible tile or stone finishing material
Model VFSL30FP7010N - Natural Gas / Reduced Output (10000 BTU)
- Fuel Type
- Natural Gas, Propane
- Vent Type
- Vent Free
- Installation Type
- Wall Mounted, Partially Recessed, Built In
- Style
- Linear
- Weight
- 50 lbs
- Electrical Requirements
- 20V Hardwired, 60Hz, 1 Amp
- Voltage
- 120V
- Ignition System
- Electronic Intermittent Pilot
- Flame Presentation
- Linear burner with matte black rear panel and tempered-glass deflector
- Safety System
- Pilot Light Safety System with Oxygen Depletion Sensor
- Optional Controls
- Wall thermostat, remote control thermostat, programmable remote
- Surface Mount Requirements
- Decorative front and cabinet wrap
- Partially Recessed Requirements
- Decorative front and non-combustible tile or stone finishing material
- Fully Recessed Requirements
- Non-combustible tile or stone finishing material
Model VFSL30FP70P - Propane / Standard Output
- Fuel Type
- Natural Gas, Propane
- Vent Type
- Vent Free
- Installation Type
- Wall Mounted, Partially Recessed, Built In
- Style
- Linear
- Weight
- 50 lbs
- Heating Capacity
- Heats up to 417 sq. ft.
- Electrical Requirements
- 20V Hardwired, 60Hz, 1 Amp
- Voltage
- 120V
- Ignition System
- Electronic Intermittent Pilot
- Flame Presentation
- Linear burner with matte black rear panel and tempered-glass deflector
- Safety System
- Pilot Light Safety System with Oxygen Depletion Sensor
- Optional Controls
- Wall thermostat, remote control thermostat, programmable remote
- Surface Mount Requirements
- Decorative front and cabinet wrap
- Partially Recessed Requirements
- Decorative front and non-combustible tile or stone finishing material
- Fully Recessed Requirements
- Non-combustible tile or stone finishing material
Model VFSL30FP7010P - Propane / Reduced Output (10000 BTU)
- Fuel Type
- Natural Gas, Propane
- Vent Type
- Vent Free
- Installation Type
- Wall Mounted, Partially Recessed, Built In
- Style
- Linear
- Weight
- 50 lbs
- Electrical Requirements
- 20V Hardwired, 60Hz, 1 Amp
- Voltage
- 120V
- Ignition System
- Electronic Intermittent Pilot
- Flame Presentation
- Linear burner with matte black rear panel and tempered-glass deflector
- Safety System
- Pilot Light Safety System with Oxygen Depletion Sensor
- Optional Controls
- Wall thermostat, remote control thermostat, programmable remote
- Surface Mount Requirements
- Decorative front and cabinet wrap
- Partially Recessed Requirements
- Decorative front and non-combustible tile or stone finishing material
- Fully Recessed Requirements
- Non-combustible tile or stone finishing material
