Dimplex Ignite Bold Built In Linear Electric Fireplace

$4,199.99

Description

Dimplex Ignite Bold Linear Electric Fireplace is a built in electric fireplace available in 50", 60", 74", 88", and 100" models for indoor and protected outdoor installation. The modular firebox supports front-facing, left-corner, right-corner, or bay-style installation from the same unit, while its edge-to-edge glass, 16-1/8" viewing height, and 5-1/2" viewing depth create a deeper linear fire presentation. It can be hardwired at 120V or 240V, with an optional plug kit available for 120V installations.

Multi-Fire flame technology provides seven flame themes, five flame-speed settings, customizable media lighting, and a crystal-and-driftwood media bed. Comfort$aver heating delivers supplemental heat for up to 1,000 sq. ft., while the flame can operate independently from the heater for year-round use. Settings can be managed through the Flame Connect app, included multifunction remote, or hidden touch controls, while an optional linking kit allows multiple Ignite Bold units to be connected for larger modular installations.

Product Brochure

What’s Included

Multifunction remote control, model-specific natural-looking driftwood, small, large and extra-large acrylic crystal media, front glass, mirrored glass, two side glass panels, open and closed side trim, mirrored glass bracket(s), mounting brackets, front-glass brackets, installation hardware, suction cup(s), bubble level, and Installation and User’s Guide.
Driftwood quantities are 6 for the 50", 8 for the 60", 9 for the 74", 10 for the 88", and 11 for the 100" model.

Features

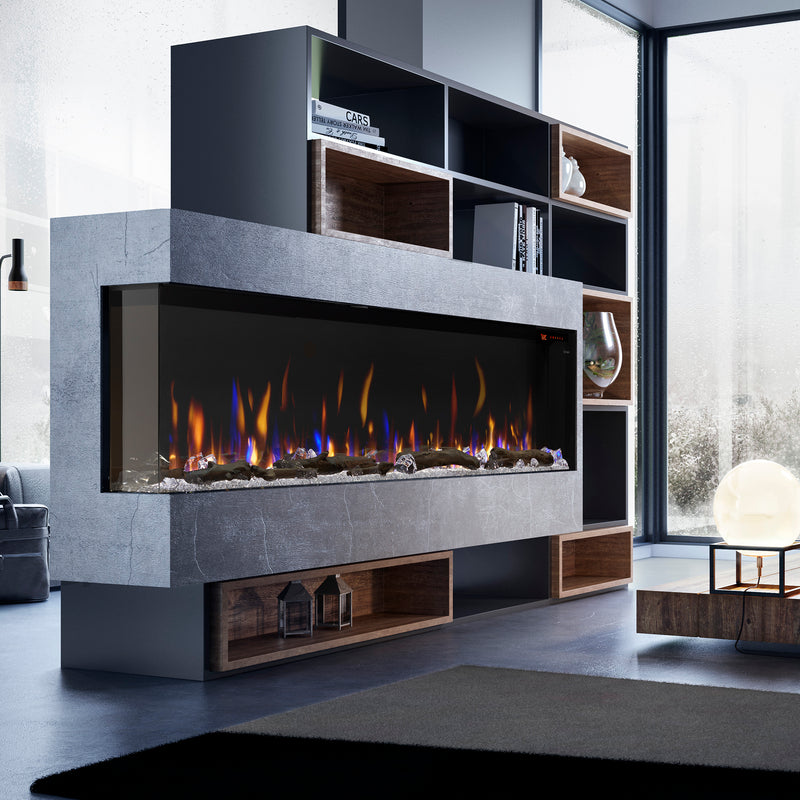

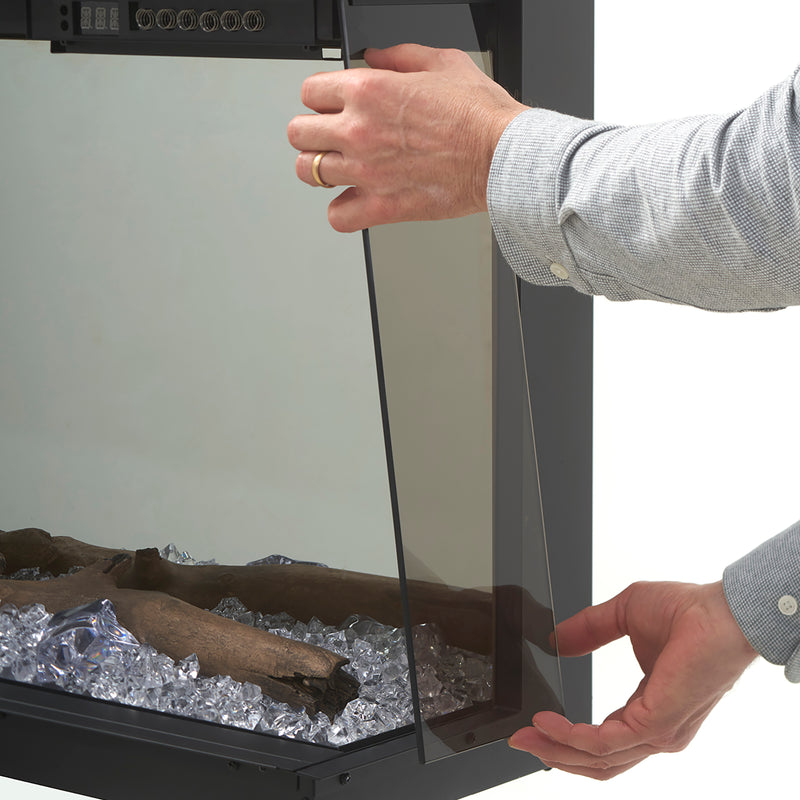

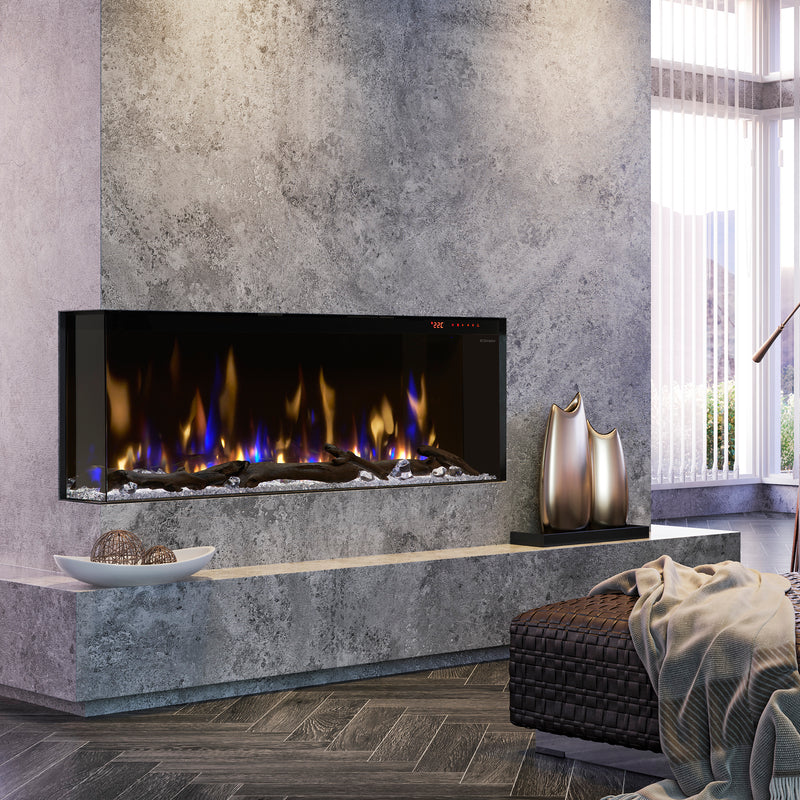

Four Installation Configurations – Configure the same fireplace as front-facing, left-corner, right-corner, or bay-style.

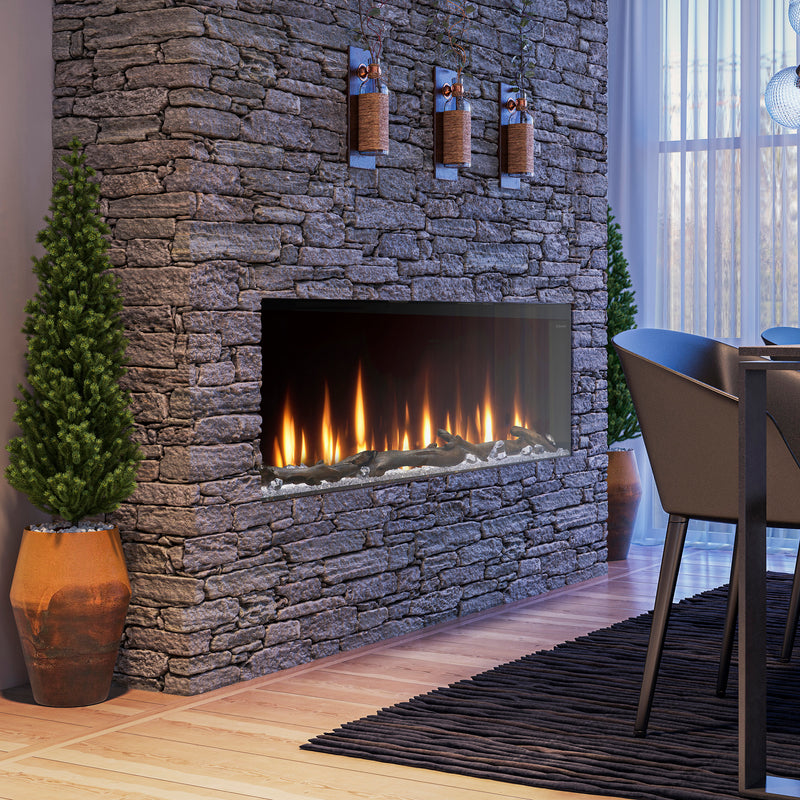

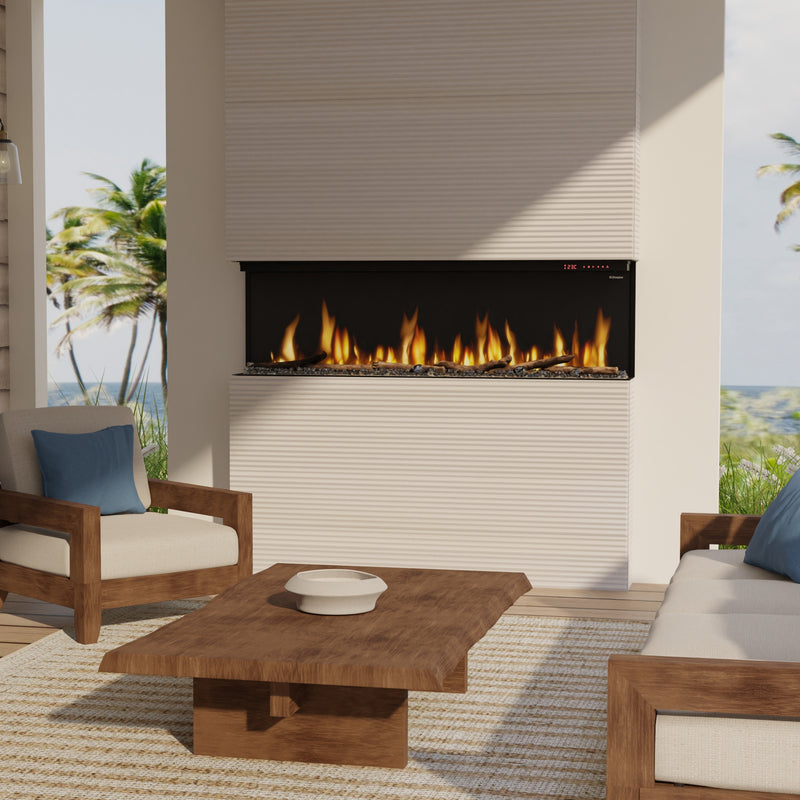

Indoor and Outdoor Installation – Certified for outdoor installation when protected from direct water ingress according to Dimplex requirements.
Multi-Fire Flame Effect – Multi-layered flame technology creates a vivid flame presentation with added visual depth.

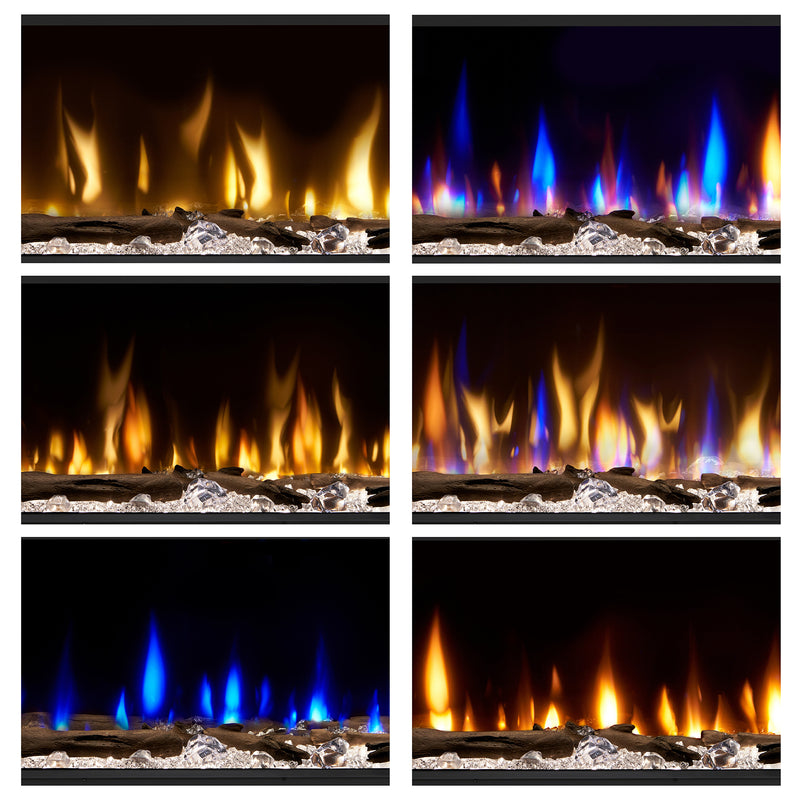

Seven Flame Themes – Choose from blue, orange, neutral, combined colors, and multiple accent combinations.
Five Flame Speeds – Adjust flame movement through five speed settings.

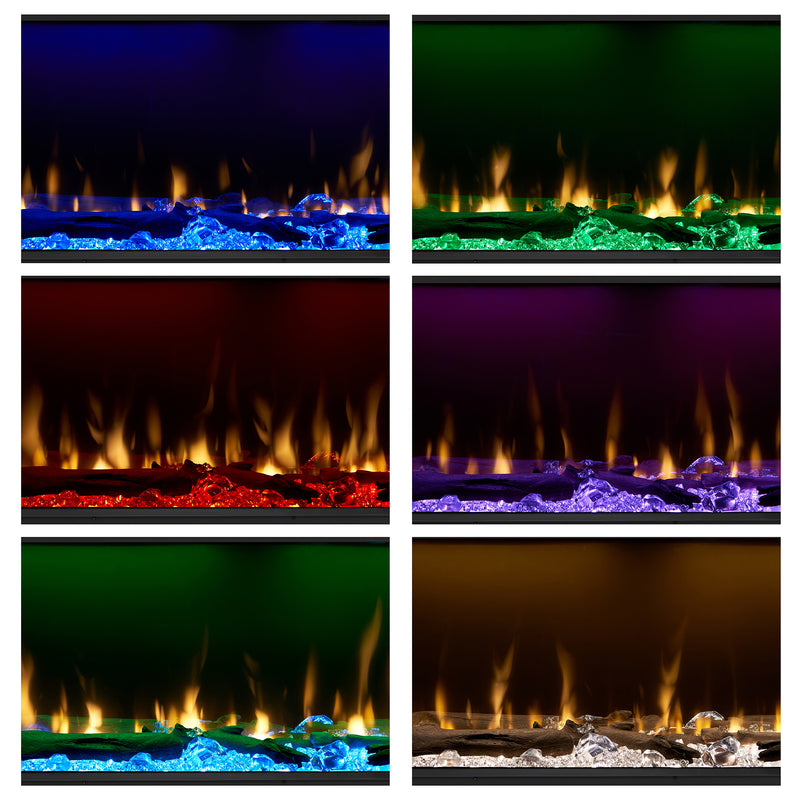

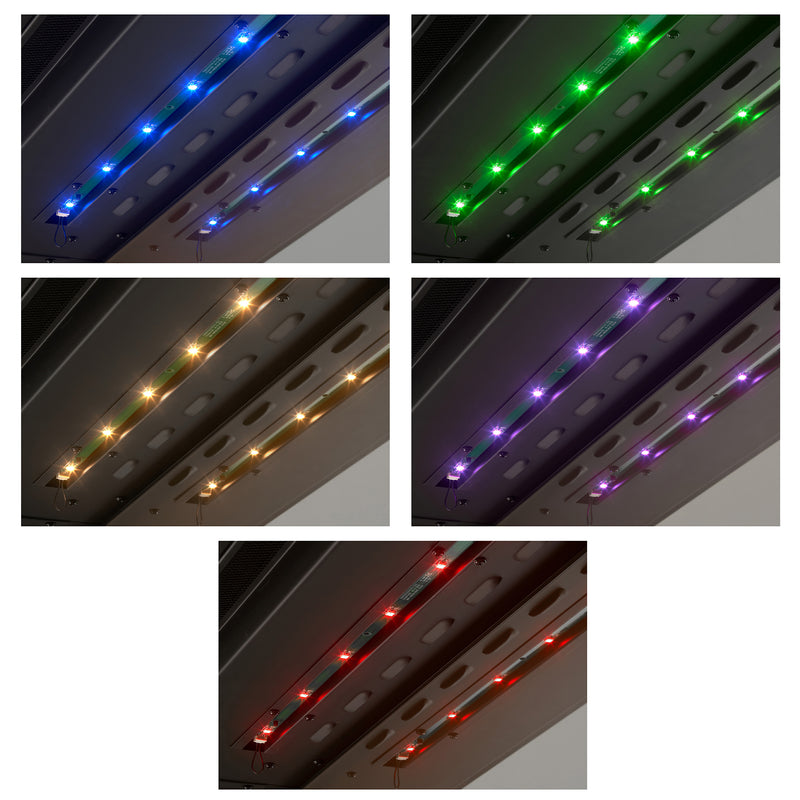

Customizable Media Lighting – Five media colors and multiple lighting modes provide additional control over the ember-bed presentation.
Deep 5-1/2" Viewing Area – Increased firebox depth provides space for larger driftwood and decorative media.
16-1/8" Viewing Height – The taller opening creates a larger vertical flame presentation than shallower linear fireboxes.

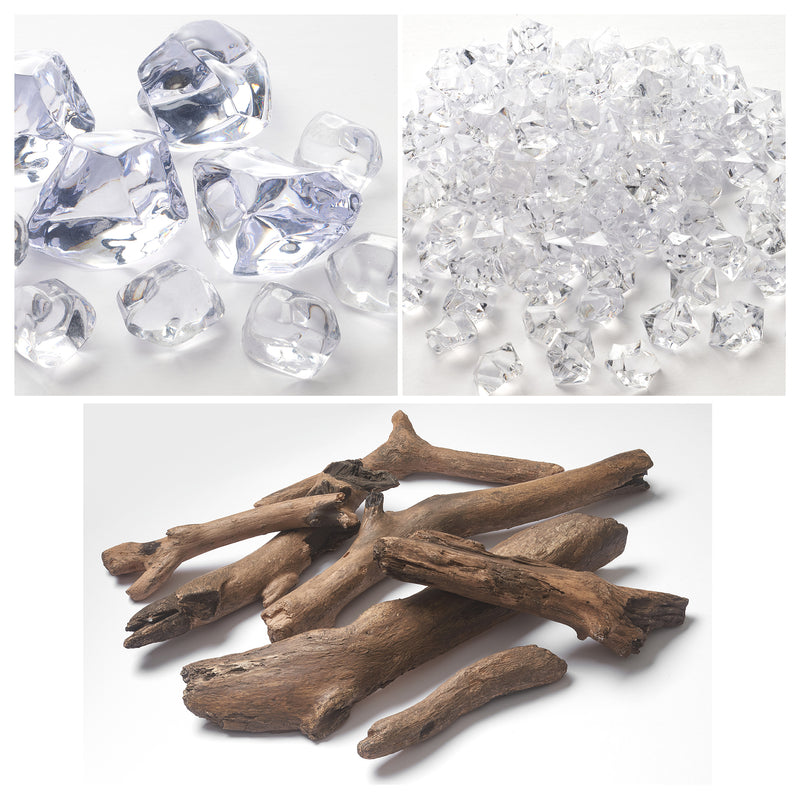

Crystal and Driftwood Media Bed – Includes multiple sizes of acrylic crystal media with natural-looking driftwood.
Mirror Effect – Mirrored glass adds reflected depth behind the flame and media display.
Comfort$aver Heating – Provides supplemental heating for up to 1,000 sq. ft.
Year-Round Flame Operation – Operate the flame effects without the heater when supplemental heat is not needed.
Flame Connect App Control – Control and personalize fireplace settings from a compatible mobile device.

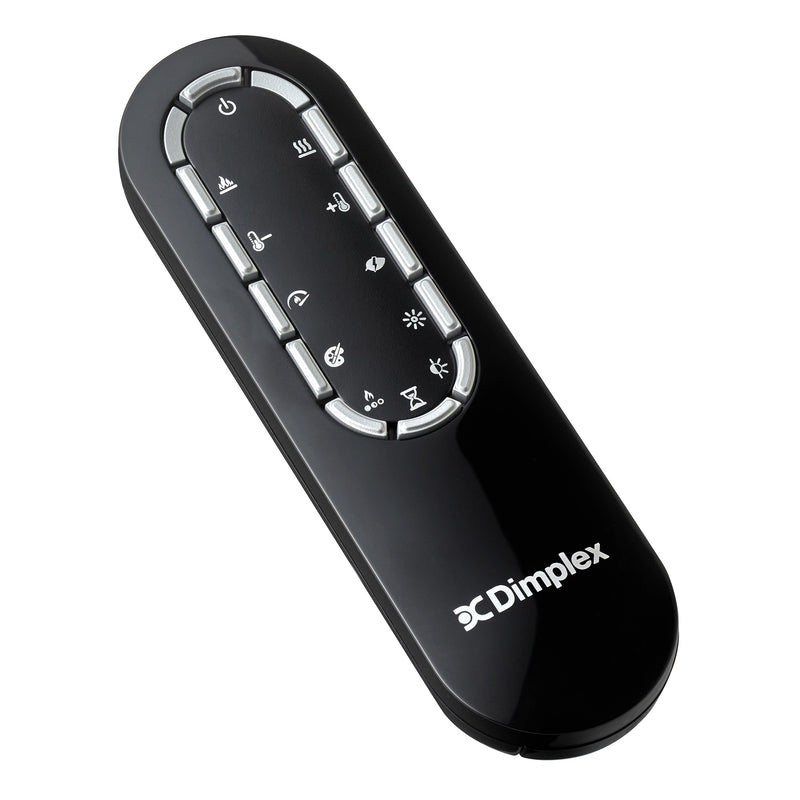

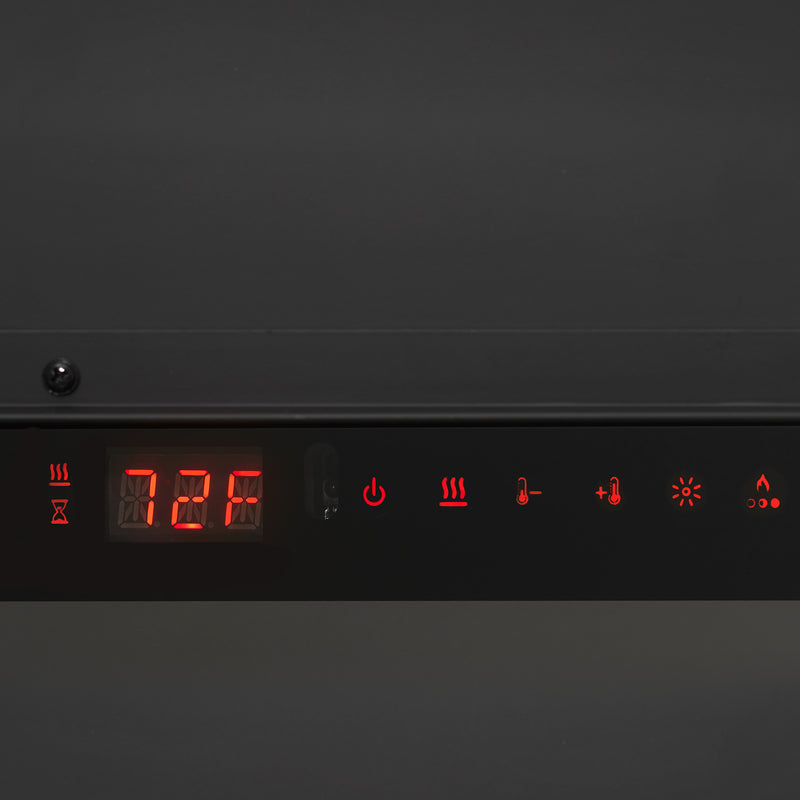

Remote and Hidden Controls – Includes a multifunction remote and hidden touch controls on the fireplace.
Smart Self-Diagnostics – Integrated diagnostics provide error codes that can assist with troubleshooting and service.

Dimensions

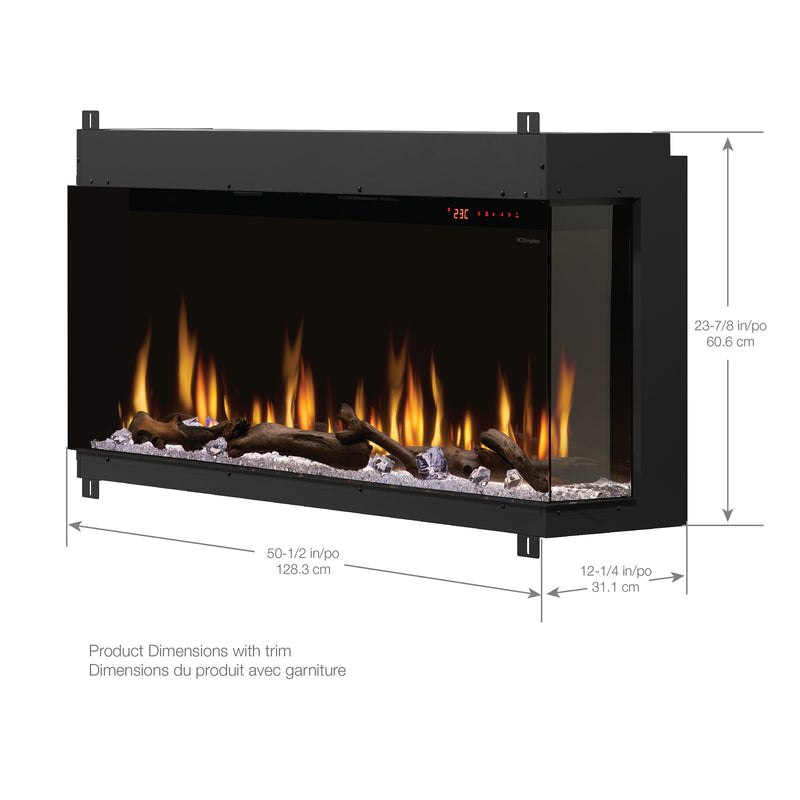

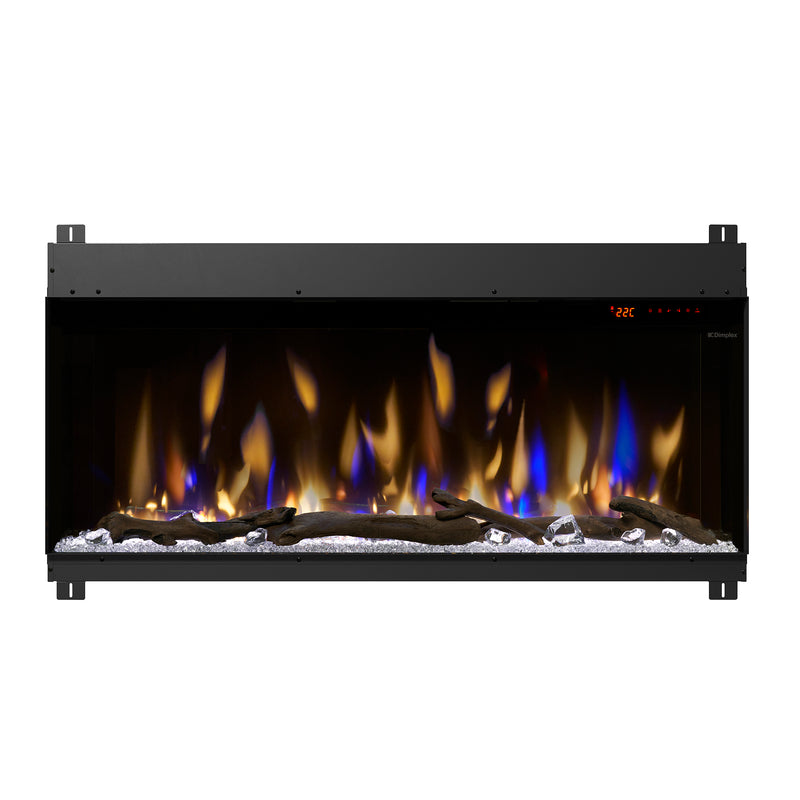

Model XLF5017-XD - 50"

Overall Dimensions: 50-1/2" W X 23-7/8" H X 12-1/8" D
Framing Dimensions: 49-1/2" W X 24-1/4" H X 11-5/8" D
Viewing Area: 48-7/8" W X 16-1/8" H
Width: 50"

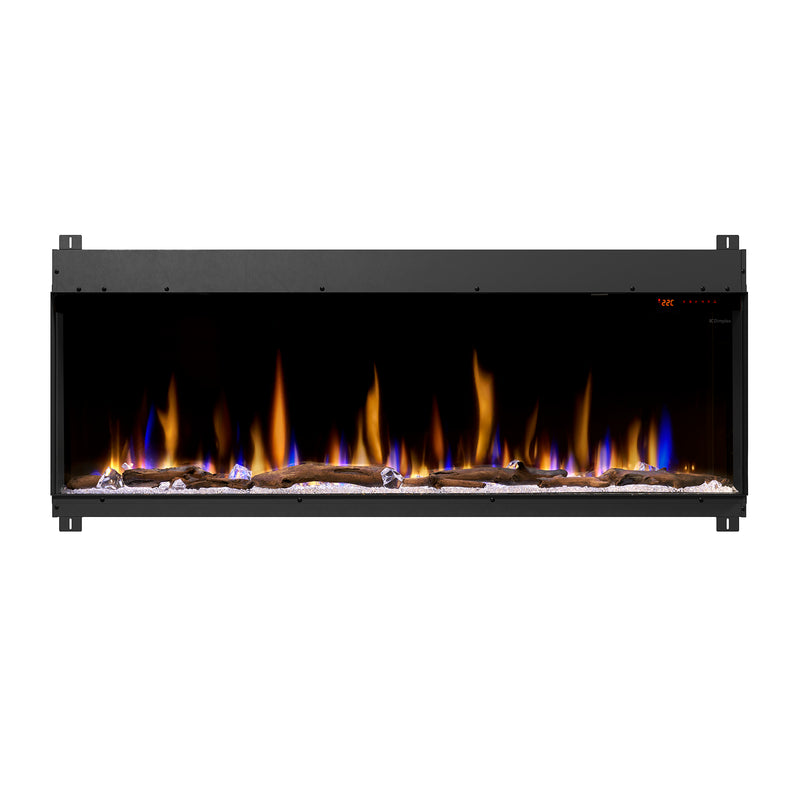

Model XLF6017-XD - 60"

Overall Dimensions: 63-1/8" W X 23-7/8" H X 12-1/8" D
Framing Dimensions: 62-1/4" W X 24-1/4" H X 11-5/8" D
Viewing Area: 61-1/2" W X 16-1/8" H
Width: 60"

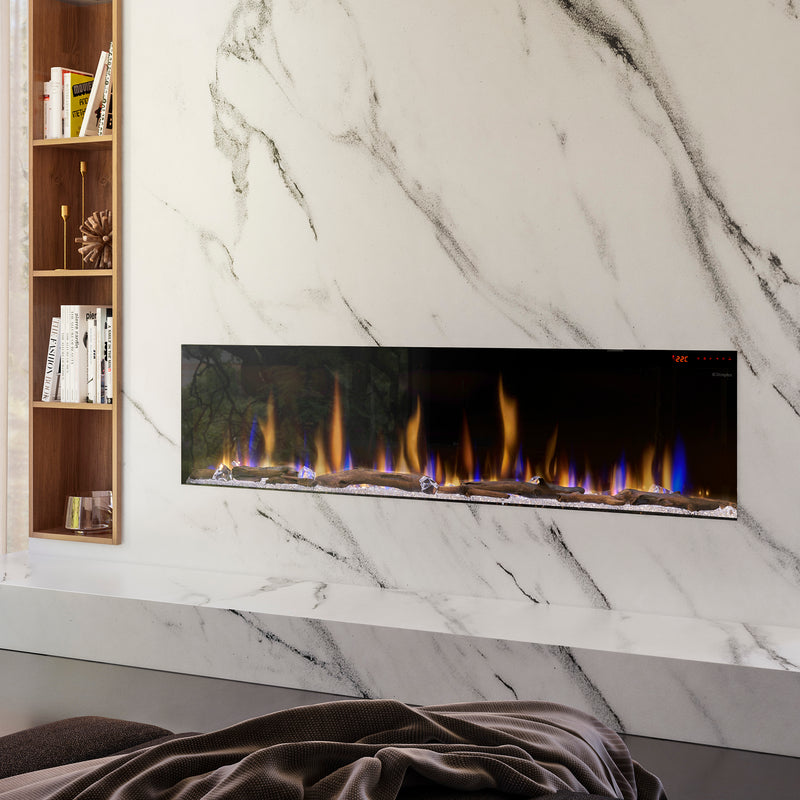

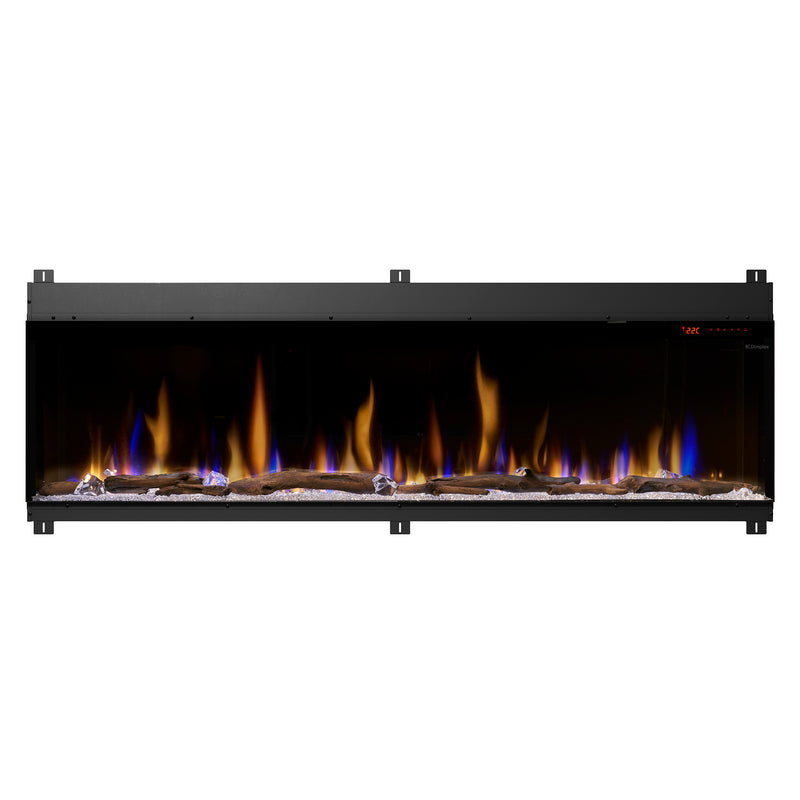

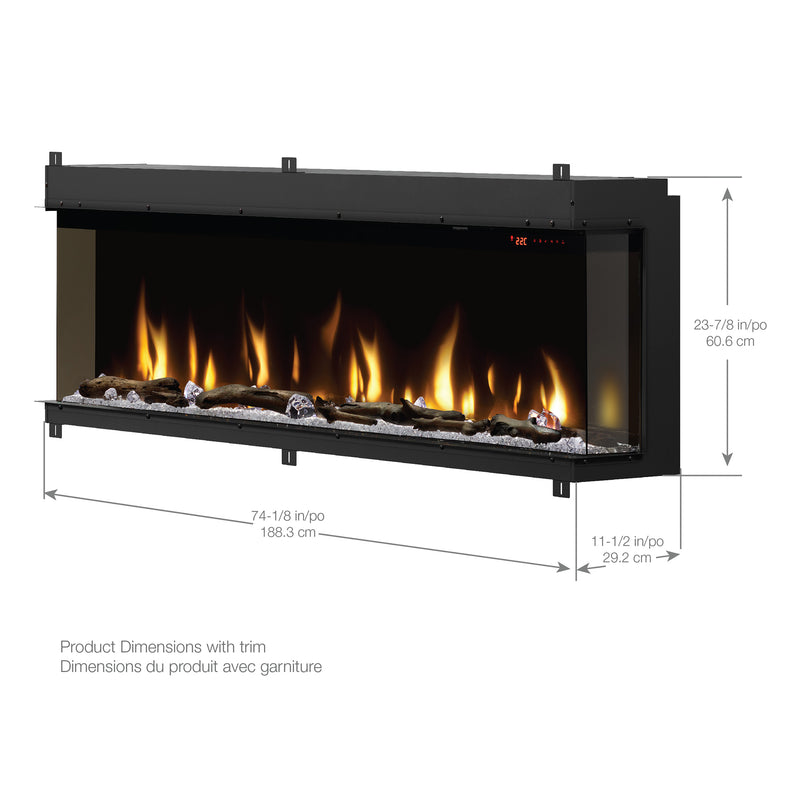

Model XLF7417-XD - 74"

Overall Dimensions: 75-5/8" W X 23-7/8" H X 12-1/8" D
Framing Dimensions: 74-5/8" W X 24-1/4" H X 11-5/8" D
Viewing Area: 74" W X 16-1/8" H
Width: 74"

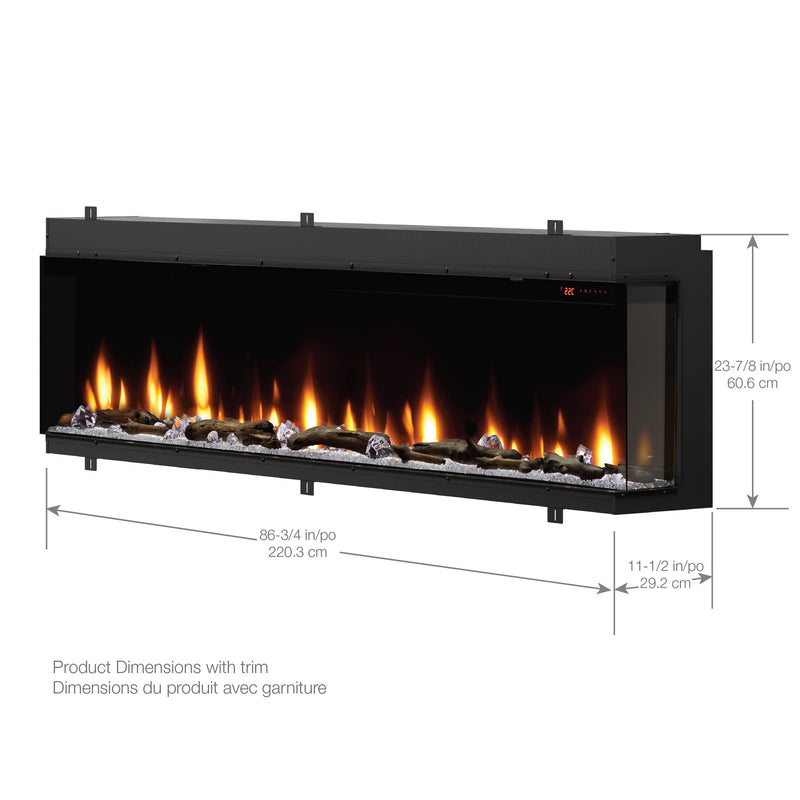

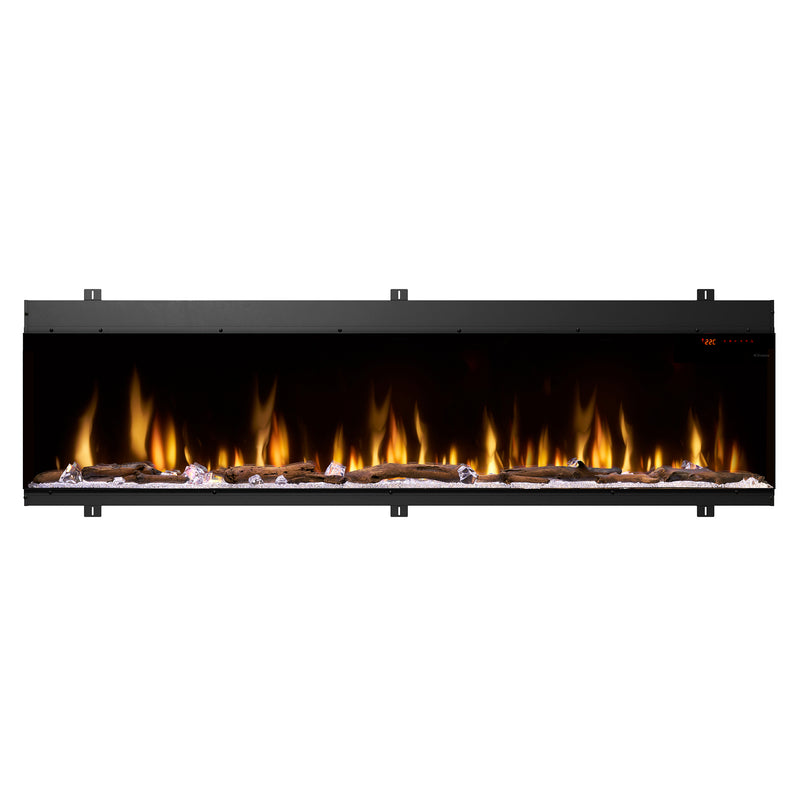

Model XLF8817-XD - 88"

Overall Dimensions: 88-1/4" W X 23-7/8" H X 12-1/8" D
Framing Dimensions: 87-1/4" W X 24-1/4" H X 11-5/8" D
Viewing Area: 86-3/8" W X 16-1/8" H
Width: 88"

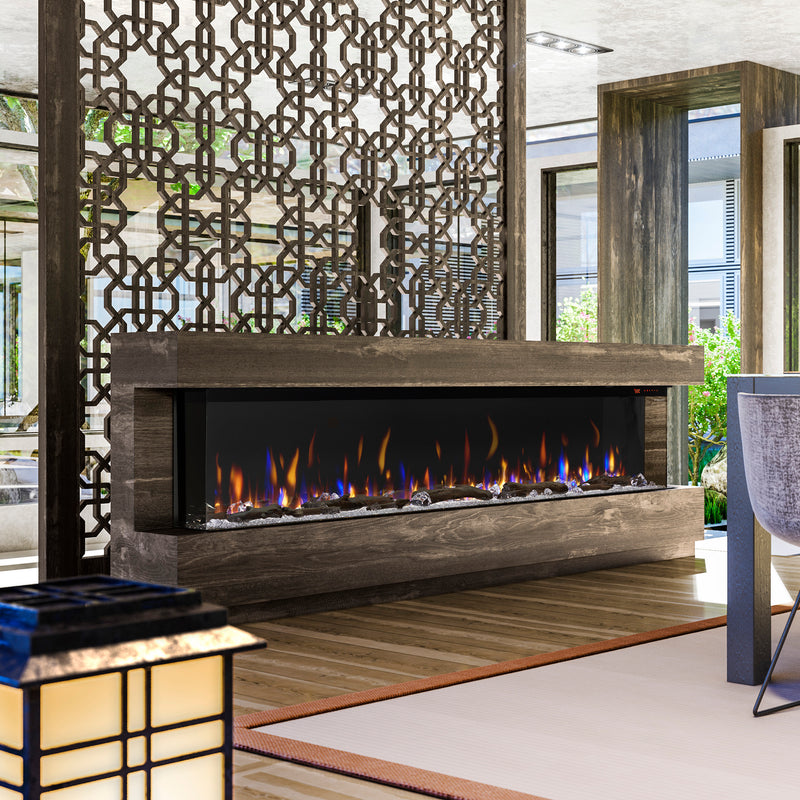

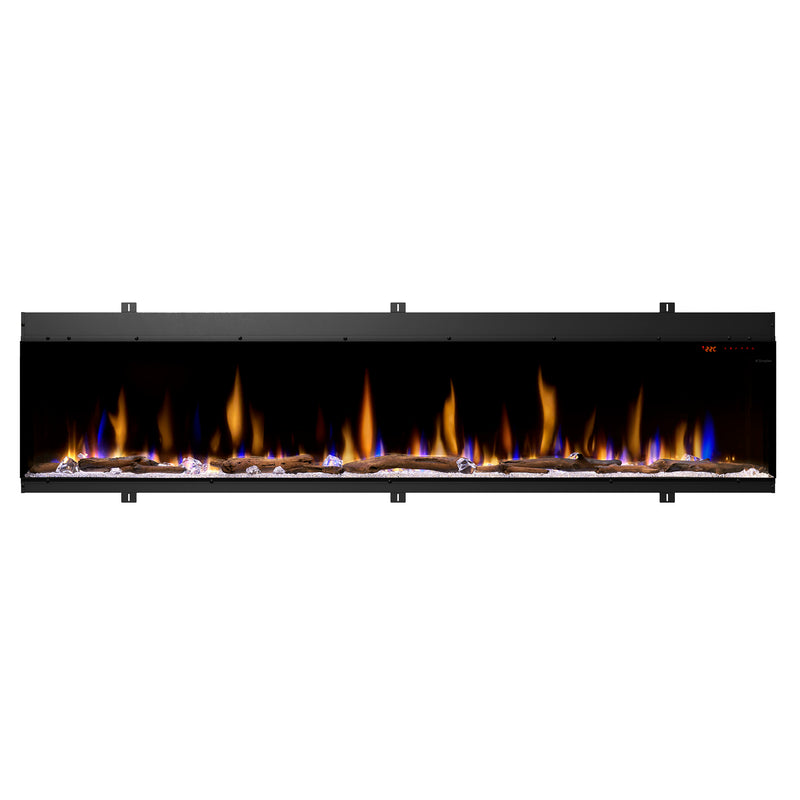

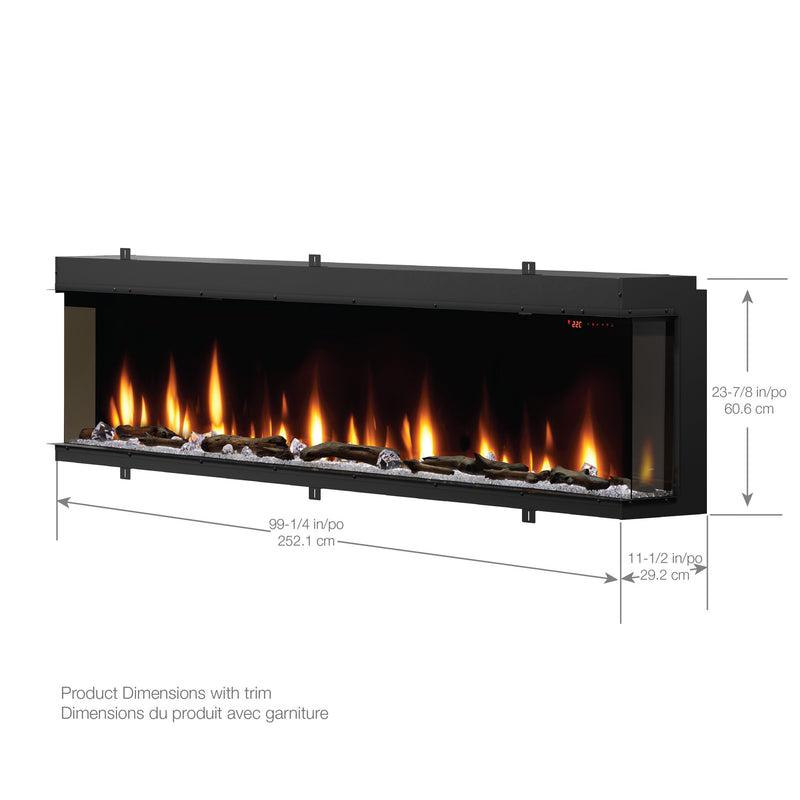

Model XLF10017-XD - 100"

Overall Dimensions: 100-3/4" W X 23-7/8" H X 12-1/8" D
Framing Dimensions: 99-3/4" W X 24-1/4" H X 11-5/8" D
Viewing Area: 99-1/8" W X 16-1/8" H
Width: 100"

Specifications

Model XLF5017-XD - 50"

Fuel Type: Electric
Installation Type: Built In, Left-Corner, Right-Corner, Bay
Style: Linear
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired, 120V Plug-In with Optional XLFXDPLUG
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Flame Effect: Multi-Fire
Flame Themes: 7
Flame Theme Colors: Blue, Orange, Neutral, Neutral with Orange and Blue Accents, Neutral with Orange Accents, Neutral with Blue Accents, Orange and Blue Combined
Flame Speed: 5 Settings
Media Colors: White, Blue, Violet, Red, Green
Media Modes: Prism, Kaleidoscope, Midnight
Mood Settings: 8
Viewing Depth: 5-1/2"
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Control Methods: Flame Connect App, Multifunction Remote, Hidden Touch Controls
Ambient Light Sensor: Yes
Timer: Up to 8 Hours
Heating Type: Louver-Less Fan-Forced Heating
Liner: Steel
Smart Self-Diagnostics: Yes

Model XLF6017-XD - 60"

Fuel Type: Electric
Installation Type: Built In, Left-Corner, Right-Corner, Bay
Style: Linear
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired, 120V Plug-In with Optional XLFXDPLUG
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Flame Effect: Multi-Fire
Flame Themes: 7
Flame Theme Colors: Blue, Orange, Neutral, Neutral with Orange and Blue Accents, Neutral with Orange Accents, Neutral with Blue Accents, Orange and Blue Combined
Flame Speed: 5 Settings
Media Colors: White, Blue, Violet, Red, Green
Media Modes: Prism, Kaleidoscope, Midnight
Mood Settings: 8
Viewing Depth: 5-1/2"
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Control Methods: Flame Connect App, Multifunction Remote, Hidden Touch Controls
Ambient Light Sensor: Yes
Timer: Up to 8 Hours
Heating Type: Louver-Less Fan-Forced Heating
Liner: Steel
Smart Self-Diagnostics: Yes

Model XLF7417-XD - 74"

Fuel Type: Electric
Installation Type: Built In, Left-Corner, Right-Corner, Bay
Style: Linear
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired, 120V Plug-In with Optional XLFXDPLUG
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Flame Effect: Multi-Fire
Flame Themes: 7
Flame Theme Colors: Blue, Orange, Neutral, Neutral with Orange and Blue Accents, Neutral with Orange Accents, Neutral with Blue Accents, Orange and Blue Combined
Flame Speed: 5 Settings
Media Colors: White, Blue, Violet, Red, Green
Media Modes: Prism, Kaleidoscope, Midnight
Mood Settings: 8
Viewing Depth: 5-1/2"
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Control Methods: Flame Connect App, Multifunction Remote, Hidden Touch Controls
Ambient Light Sensor: Yes
Timer: Up to 8 Hours
Heating Type: Louver-Less Fan-Forced Heating
Liner: Steel
Smart Self-Diagnostics: Yes

Model XLF8817-XD - 88"

Fuel Type: Electric
Installation Type: Built In, Left-Corner, Right-Corner, Bay
Style: Linear
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired, 120V Plug-In with Optional XLFXDPLUG
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Flame Effect: Multi-Fire
Flame Themes: 7
Flame Theme Colors: Blue, Orange, Neutral, Neutral with Orange and Blue Accents, Neutral with Orange Accents, Neutral with Blue Accents, Orange and Blue Combined
Flame Speed: 5 Settings
Media Colors: White, Blue, Violet, Red, Green
Media Modes: Prism, Kaleidoscope, Midnight
Mood Settings: 8
Viewing Depth: 5-1/2"
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Control Methods: Flame Connect App, Multifunction Remote, Hidden Touch Controls
Ambient Light Sensor: Yes
Timer: Up to 8 Hours
Heating Type: Louver-Less Fan-Forced Heating
Liner: Steel
Smart Self-Diagnostics: Yes

Model XLF10017-XD - 100"

Fuel Type: Electric
Installation Type: Built In, Left-Corner, Right-Corner, Bay
Style: Linear
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired, 120V Plug-In with Optional XLFXDPLUG
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Flame Effect: Multi-Fire
Flame Themes: 7
Flame Theme Colors: Blue, Orange, Neutral, Neutral with Orange and Blue Accents, Neutral with Orange Accents, Neutral with Blue Accents, Orange and Blue Combined
Flame Speed: 5 Settings
Media Colors: White, Blue, Violet, Red, Green
Media Modes: Prism, Kaleidoscope, Midnight
Mood Settings: 8
Viewing Depth: 5-1/2"
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Control Methods: Flame Connect App, Multifunction Remote, Hidden Touch Controls
Ambient Light Sensor: Yes
Timer: Up to 8 Hours
Heating Type: Louver-Less Fan-Forced Heating
Liner: Steel
Smart Self-Diagnostics: Yes

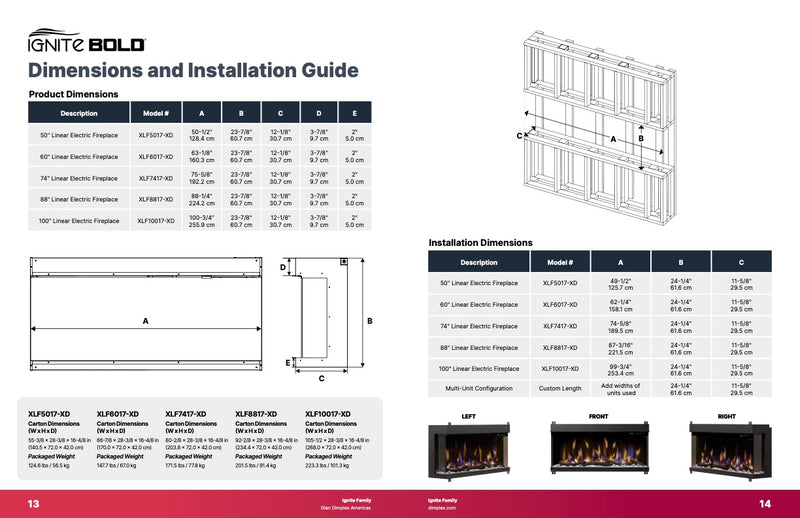

Technical Drawings

Specification Sheet XLF5017-XD - 50" Specification Sheet XLF6017-XD - 60" Specification Sheet XLF7417-XD - 74" Specification Sheet XLF8817-XD - 88" Specification Sheet XLF10017-XD - 100"

Installation Manual

Installation Manual Dimplex Ignite Bold Built In Linear Electric Fireplace

Warranty Policy

Warranty Policy Dimplex Ignite Bold Built In Linear Electric Fireplace Warranty
