Dimplex Ignite Ultra Built In Linear Electric Fireplace

Dimplex Ignite Ultra Built In Linear Electric Fireplace

Name: Dimplex Ignite Ultra Built In Linear Electric Fireplace
Brand: Dimplex
SKU: ULT50
Price: 4649.99 USD
Availability: InStock

by Dimplex

SKU ULT50

$4,649.99 - $6,799.99

$4,649.99

$4,649.99 - $6,799.99

$4,649.99

Quantity

Order With Confidence: We’ll call you before processing your order to confirm the fireplace and required components are compatible with your project.

We Call Before Processing

We Confirm Compatibility

Fireplace Experts Available

Dimplex Ignite Ultra Built In Linear Electric Fireplace

$4,649.99

Description

Dimplex Ignite Ultra Linear Electric Fireplace is a built in electric fireplace available in 50", 60", 74", 88", and 100" models. Its modular firebox supports front-facing, left-corner, right-corner, or bay installation from the same unit, allowing the front and side glass configuration to match the project. The fireplace can be connected at 120V by power cord or hardwire, or 240V by hardwire, and requires no venting.

Flex-Flame lets the flame presentation switch between Dynamic-Fire and Multi-Fire effects, while rhythmic inner glow logs, glass media, adjustable brightness, flame speed, and crackling sound effects provide additional customization. Comfort$aver heating delivers supplemental heat for up to 1,000 sq. ft., and the flame can operate with or without heat. Settings can be managed through the Flame Connect app, multifunction Bluetooth remote, or onboard controls, combining flexible installation, year-round flame operation, and app-connected control.

Product Brochure

What’s Included

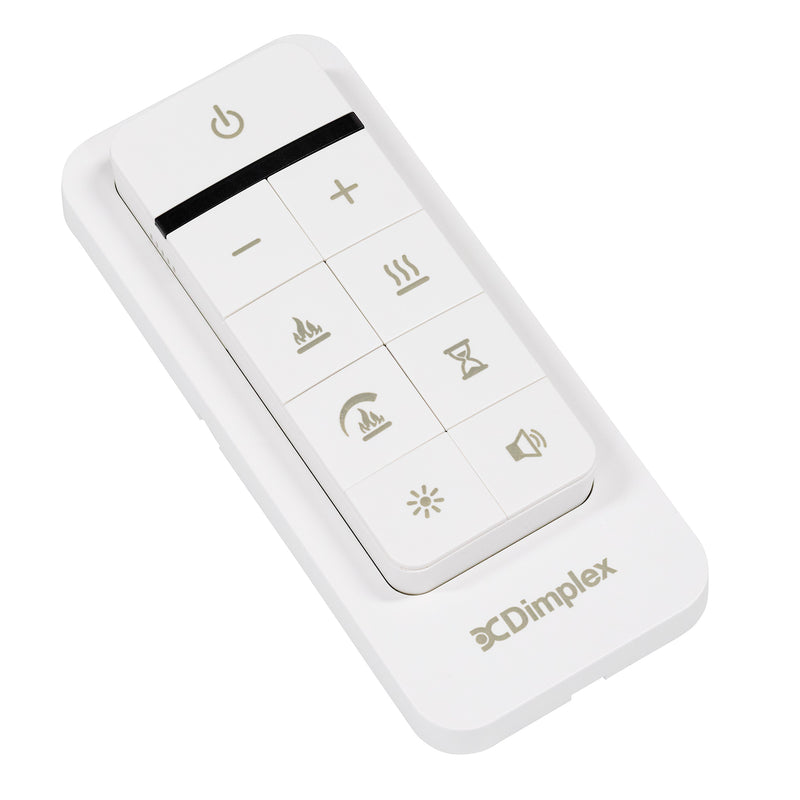

Multifunction Bluetooth remote control with wall mount, model-specific rhythmic inner glow log set, tumbled glass embers, gravel, glass chunks, reflective glass, front glass, two side glass panels, sill trim, open-side trim components, top grille, 120V plug kit, mounting brackets, linking brackets, installation hardware, suction cups, bubble level, AAA batteries, and installation/user guide.
The included log count varies by model: 6 for ULT50, 9 for ULT60, 11 for ULT74, 12 for ULT88, and 14 for ULT100.

Features

Four Installation Configurations – Configure the same firebox as front-facing, left-corner, right-corner, or bay-style.

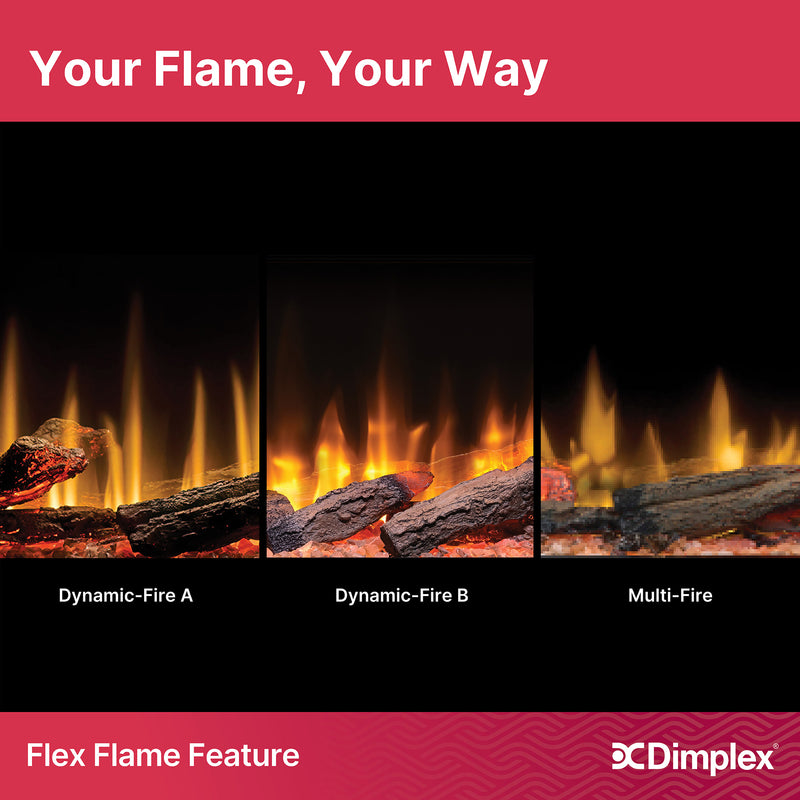

Flex-Flame Flame System – Switch between Dynamic-Fire and Multi-Fire flame effects to change the fireplace presentation.
Rhythmic Inner Glow Logs – Quick-connect movable logs use inner-glow technology that pulses with the flame display.
Comfort$aver Heating – Provides on-demand supplemental heating for up to 1,000 sq. ft.
Year-Round Flame Operation – Operate the flame and lighting effects with or without the heater.
120V or 240V Electrical Connection – Supports 120V power-cord or hardwired installation and 240V hardwired installation.
Flame Connect App Control – Adjust and personalize fireplace settings through the Dimplex Flame Connect app.

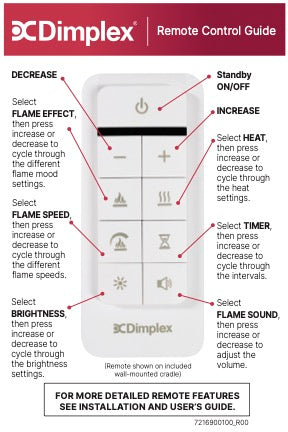

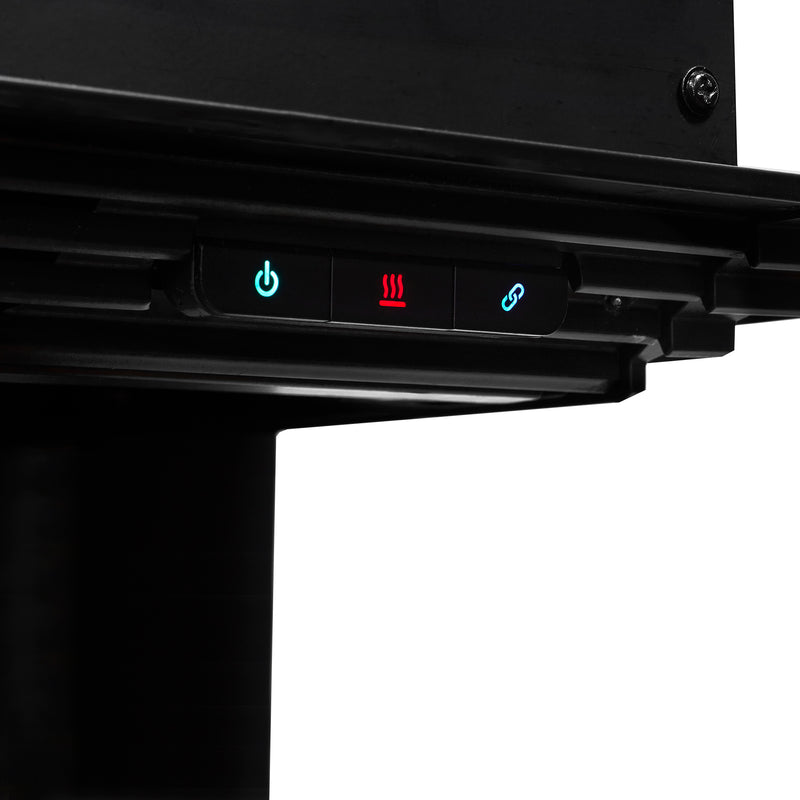

Remote and Onboard Controls – Includes a multifunction Bluetooth remote with wall mount plus onboard fireplace controls.
Adjustable Flame Presentation – Control flame speed and brightness and select from multiple flame themes.
Crackling Sound Effects – Adds adjustable fire sounds, with additional sound options available through the Flame Connect app.
No Venting Required – Electric operation does not require a chimney or exterior vent.
Dimplex also specifies a 1–8 hour timer, nine flame themes including a custom app setting, adjustable brightness, heat-only operation, and heat-disable functionality.

Dimensions

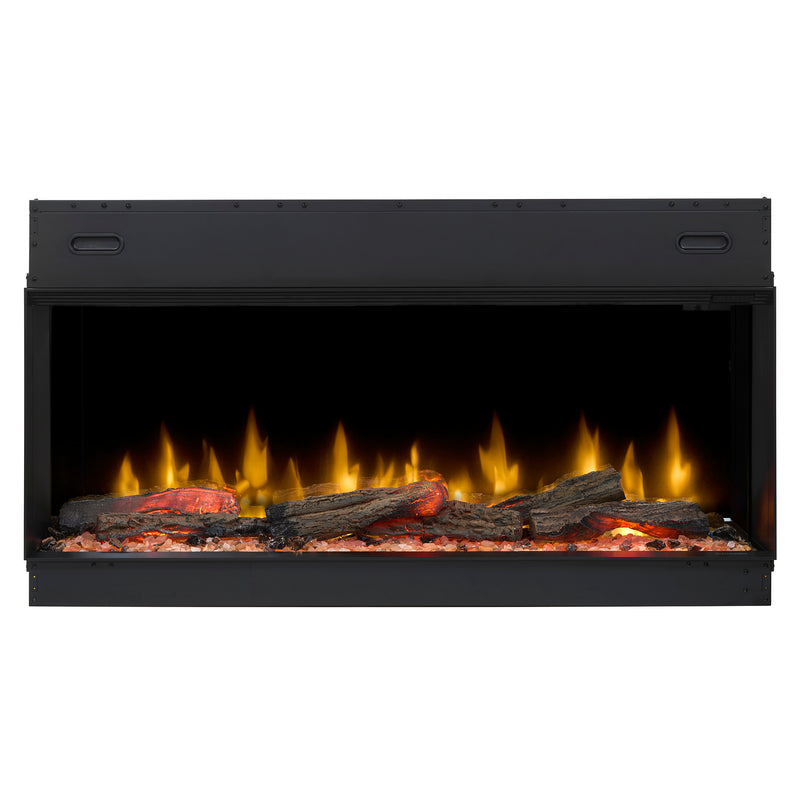

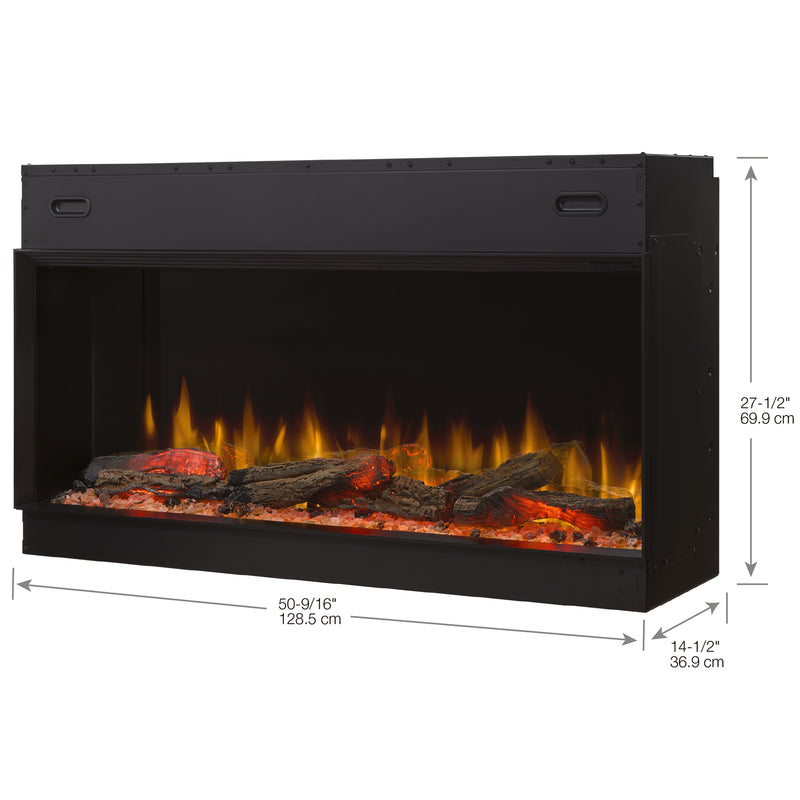

Model ULT50 - 50"

Overall Dimensions: 54-5/8" W X 27-1/2" H X 15-3/8" D

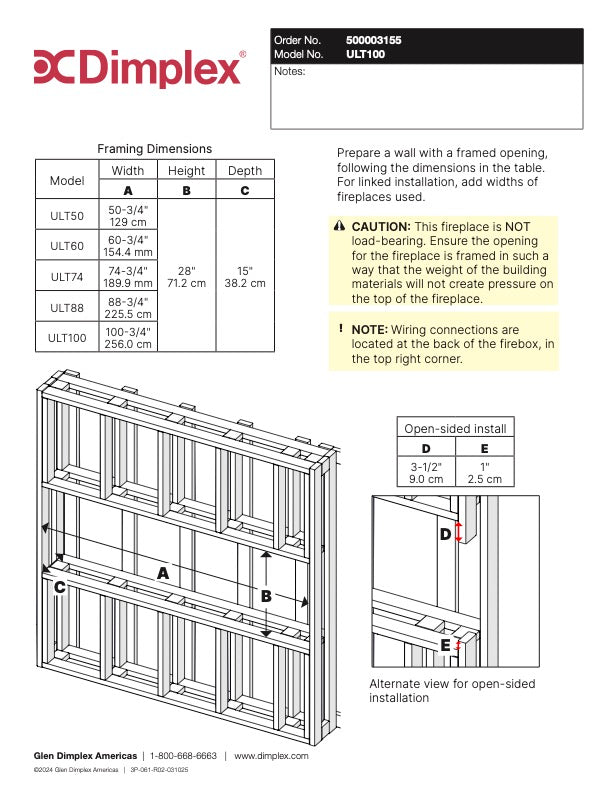

Framing Dimensions: 50-3/4" W X 28" H X 15" D
Viewing Area: 60" W X 17" H
Width: 50"

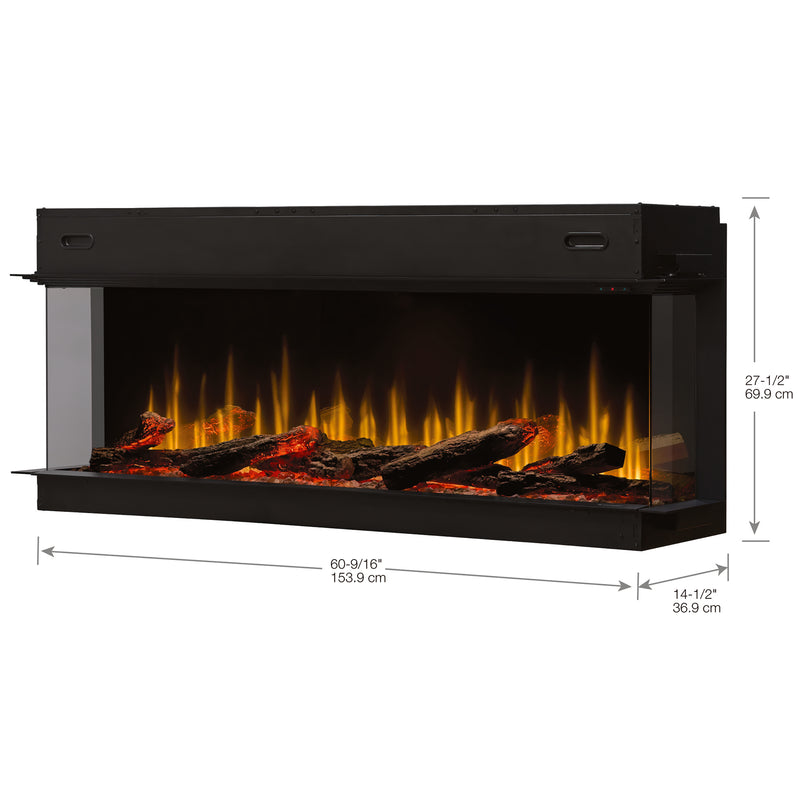

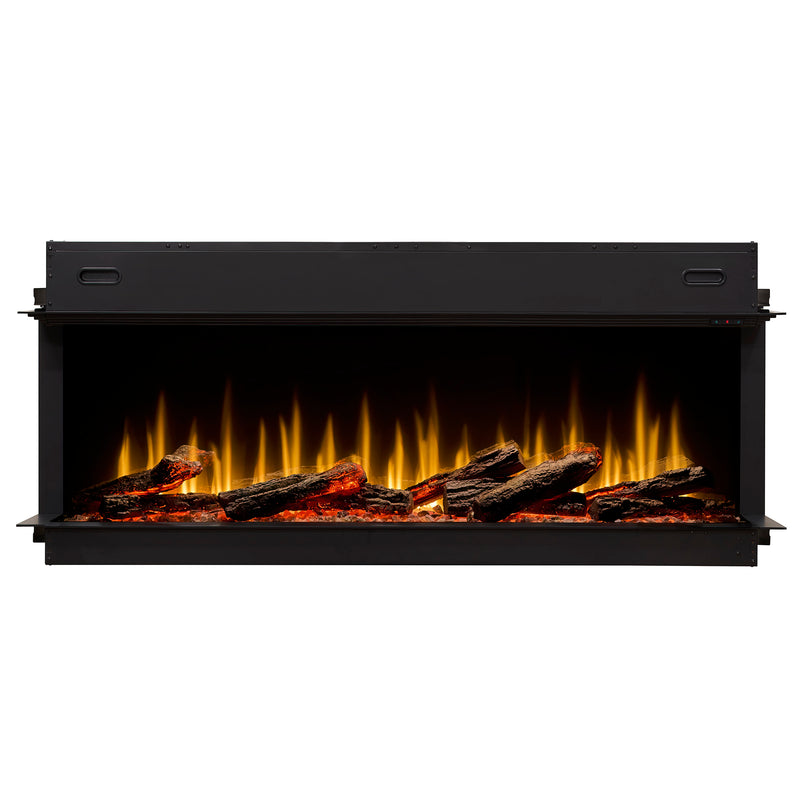

Model ULT60 - 60"

Overall Dimensions: 64-5/8" W X 27-1/2" H X 15-3/8" D
Framing Dimensions: 60-3/4" W X 28" H X 15" D
Viewing Area: 60" W X 17" H
Width: 60"

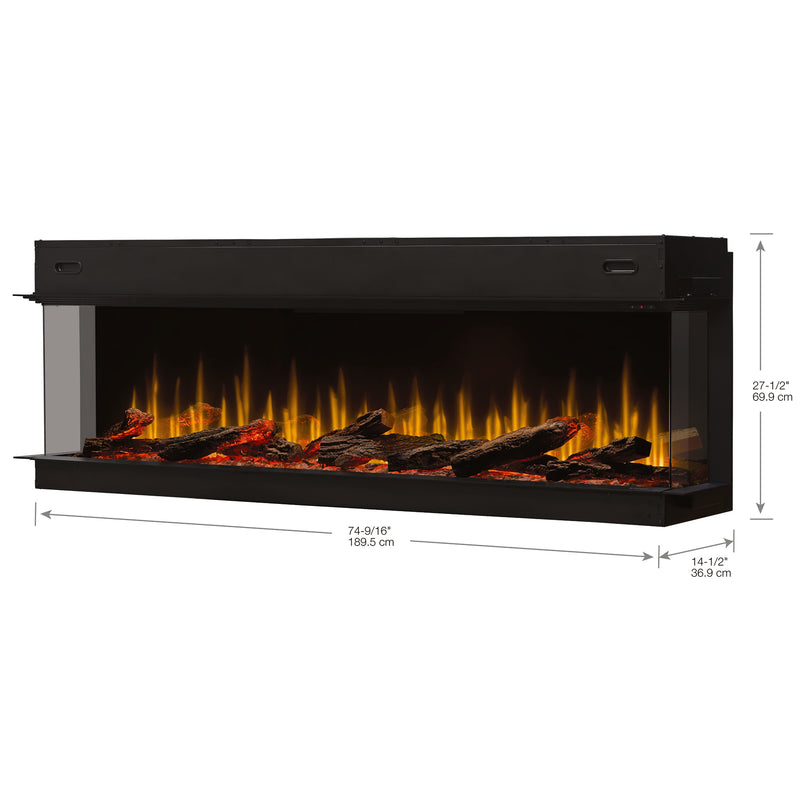

Model ULT74 - 74"

Overall Dimensions: 78-5/8" W X 27-1/2" H X 15-3/8" D
Framing Dimensions: 74-3/4" W X 28" H X 15" D
Viewing Area: 60" W X 17" H
Width: 74"

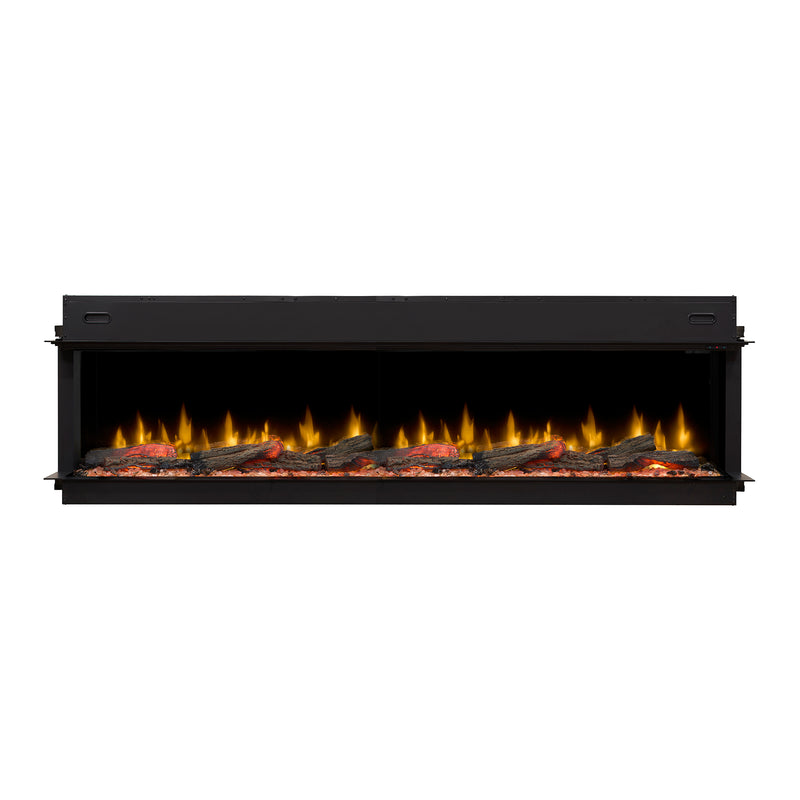

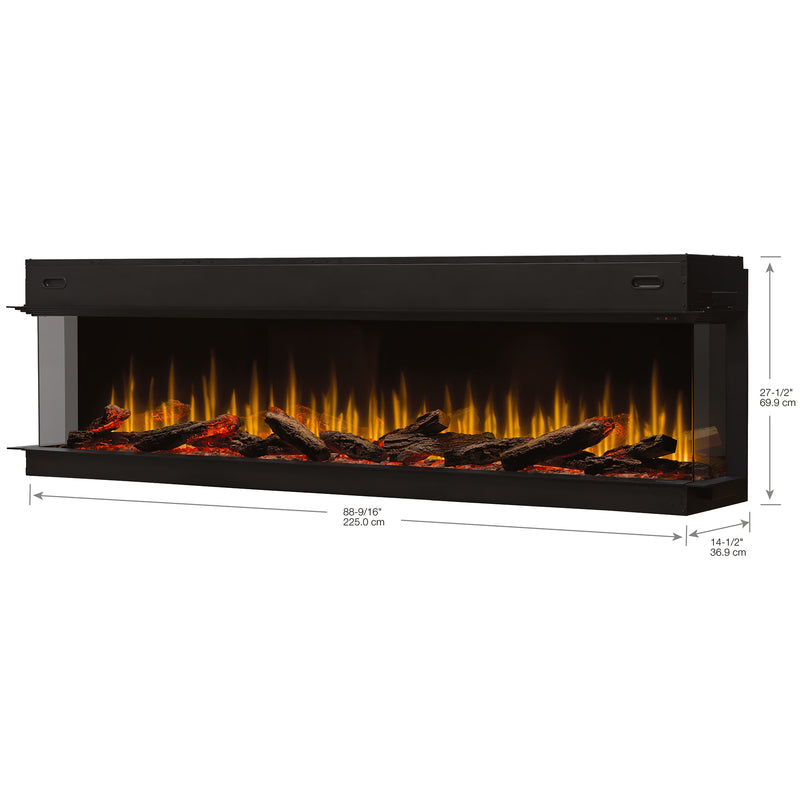

Model ULT88 - 88"

Overall Dimensions: 92-5/8" W X 27-1/2" H X 15-3/8" D
Framing Dimensions: 88-3/4" W X 28" H X 15" D
Viewing Area: 60" W X 17" H
Width: 88"

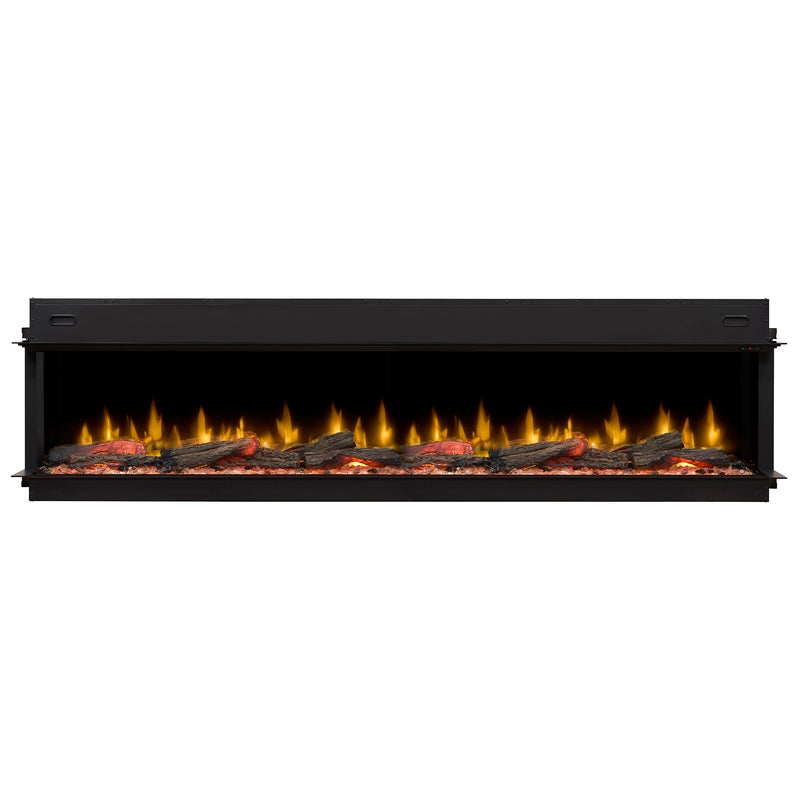

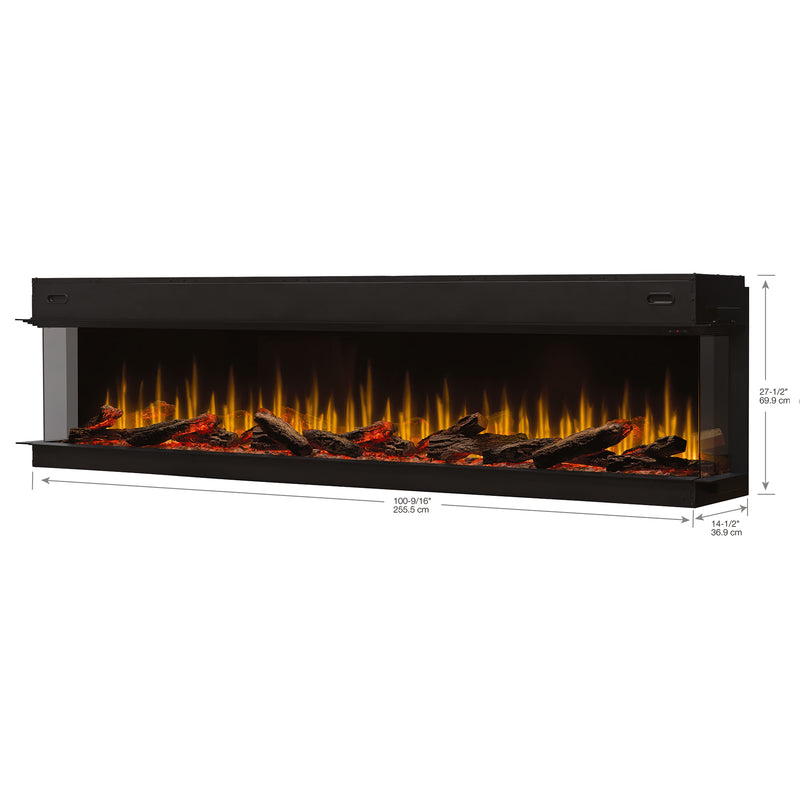

Model ULT100 - 100"

Overall Dimensions: 104-5/8" W X 27-1/2" H X 15-3/8" D
Framing Dimensions: 100-3/4" W X 28" H X 15" D
Viewing Area: 60" W X 17" H
Width: 100"

Specifications

Model ULT50 - 50"

Fuel Type: Electric
Installation Type: Built In, Multi-Sided, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,118 - 8,530 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Plug-In / Hardwired, 240V Hardwired
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Installation Configurations: Front-Facing, Left-Corner, Right-Corner, Bay
Flame Effects: Dynamic-Fire, Multi-Fire
Flex-Flame: Yes
Flame Themes: 9, Including Custom Flame Connect App Setting
Flame Speed: Adjustable
Brightness: Adjustable
Log Display: Quick-Connect Moveable Rhythmic Inner Glow Logs
Decorative Media: Tumbled Glass Embers, Gravel, Glass Chunks
Crackling Sound Effects: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Heat Disable: Yes
Thermostat Control: Yes
Heating Technology: Comfort$aver Fan-Forced Heating
Control Methods: Flame Connect App, Multifunction Bluetooth Remote, Onboard Controls
Timer: 1–8 Hours
Wi-Fi Connectivity: Required for Flame Connect App
Remote Connectivity: Bluetooth
Liner: Steel

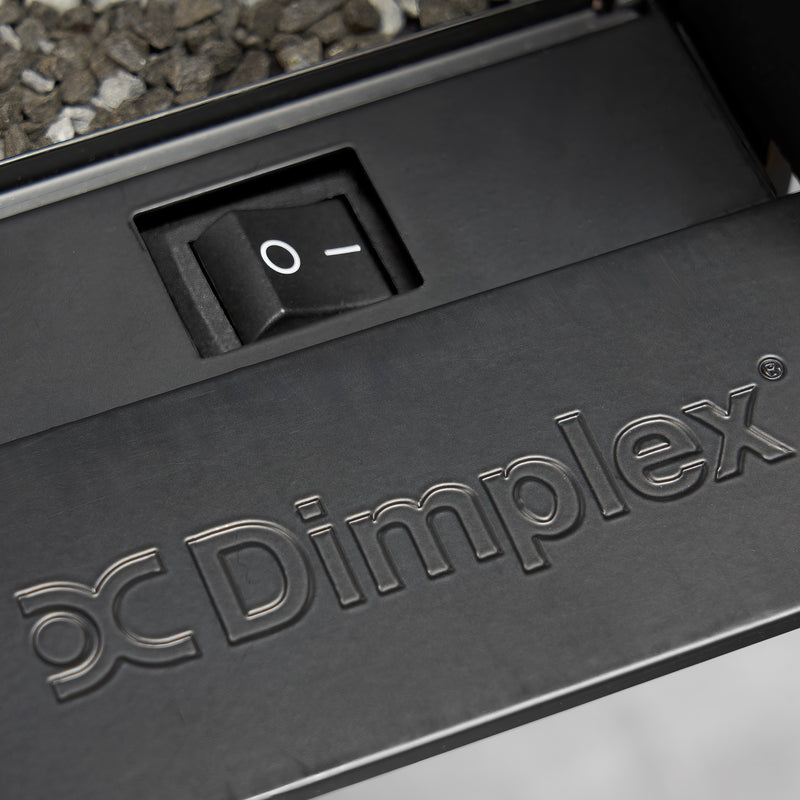

Built-In Power Switch: Yes
Linked Installation: Supported

Model ULT60 - 60"

Fuel Type: Electric
Installation Type: Built In, Multi-Sided, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,118 - 8,530 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Plug-In / Hardwired, 240V Hardwired
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Installation Configurations: Front-Facing, Left-Corner, Right-Corner, Bay
Flame Effects: Dynamic-Fire, Multi-Fire
Flex-Flame: Yes
Flame Themes: 9, Including Custom Flame Connect App Setting
Flame Speed: Adjustable
Brightness: Adjustable
Log Display: Quick-Connect Moveable Rhythmic Inner Glow Logs
Decorative Media: Tumbled Glass Embers, Gravel, Glass Chunks
Crackling Sound Effects: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Heat Disable: Yes
Thermostat Control: Yes
Heating Technology: Comfort$aver Fan-Forced Heating
Control Methods: Flame Connect App, Multifunction Bluetooth Remote, Onboard Controls
Timer: 1–8 Hours
Wi-Fi Connectivity: Required for Flame Connect App
Remote Connectivity: Bluetooth
Liner: Steel
Built-In Power Switch: Yes
Linked Installation: Supported

Model ULT74 - 74"

Fuel Type: Electric
Installation Type: Built In, Multi-Sided, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,118 - 8,530 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Plug-In / Hardwired, 240V Hardwired
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Installation Configurations: Front-Facing, Left-Corner, Right-Corner, Bay
Flame Effects: Dynamic-Fire, Multi-Fire
Flex-Flame: Yes
Flame Themes: 9, Including Custom Flame Connect App Setting
Flame Speed: Adjustable
Brightness: Adjustable
Log Display: Quick-Connect Moveable Rhythmic Inner Glow Logs
Decorative Media: Tumbled Glass Embers, Gravel, Glass Chunks
Crackling Sound Effects: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Heat Disable: Yes
Thermostat Control: Yes
Heating Technology: Comfort$aver Fan-Forced Heating
Control Methods: Flame Connect App, Multifunction Bluetooth Remote, Onboard Controls
Timer: 1–8 Hours
Wi-Fi Connectivity: Required for Flame Connect App
Remote Connectivity: Bluetooth
Liner: Steel
Built-In Power Switch: Yes
Linked Installation: Supported

Model ULT88 - 88"

Fuel Type: Electric
Installation Type: Built In, Multi-Sided, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,118 - 8,530 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Plug-In / Hardwired, 240V Hardwired
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Installation Configurations: Front-Facing, Left-Corner, Right-Corner, Bay
Flame Effects: Dynamic-Fire, Multi-Fire
Flex-Flame: Yes
Flame Themes: 9, Including Custom Flame Connect App Setting
Flame Speed: Adjustable
Brightness: Adjustable
Log Display: Quick-Connect Moveable Rhythmic Inner Glow Logs
Decorative Media: Tumbled Glass Embers, Gravel, Glass Chunks
Crackling Sound Effects: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Heat Disable: Yes
Thermostat Control: Yes
Heating Technology: Comfort$aver Fan-Forced Heating
Control Methods: Flame Connect App, Multifunction Bluetooth Remote, Onboard Controls
Timer: 1–8 Hours
Wi-Fi Connectivity: Required for Flame Connect App
Remote Connectivity: Bluetooth
Liner: Steel
Built-In Power Switch: Yes
Linked Installation: Supported

Model ULT100 - 100"

Fuel Type: Electric
Installation Type: Built In, Multi-Sided, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,118 - 8,530 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Plug-In / Hardwired, 240V Hardwired
Voltage: 120V / 240V
Amps: 12.5 Amps at 120V / 10.4 Amps at 240V
Watts: 1,500W at 120V / 2,500W at 240V
Installation Configurations: Front-Facing, Left-Corner, Right-Corner, Bay
Flame Effects: Dynamic-Fire, Multi-Fire
Flex-Flame: Yes
Flame Themes: 9, Including Custom Flame Connect App Setting
Flame Speed: Adjustable
Brightness: Adjustable
Log Display: Quick-Connect Moveable Rhythmic Inner Glow Logs
Decorative Media: Tumbled Glass Embers, Gravel, Glass Chunks
Crackling Sound Effects: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Heat Disable: Yes
Thermostat Control: Yes
Heating Technology: Comfort$aver Fan-Forced Heating
Control Methods: Flame Connect App, Multifunction Bluetooth Remote, Onboard Controls
Timer: 1–8 Hours
Wi-Fi Connectivity: Required for Flame Connect App
Remote Connectivity: Bluetooth
Liner: Steel
Built-In Power Switch: Yes
Linked Installation: Supported

Technical Drawings

Specification Sheet ULT50 - 50" Specification Sheet ULT60 - 60" Specification Sheet ULT74 - 74" Specification Sheet ULT88 - 88" Specification Sheet ULT100 - 100"

Installation Manual

Installation Manual Dimplex Ignite Ultra Built In Linear Electric Fireplace

Warranty Policy

Warranty Policy Dimplex Ignite Ultra Built In Linear Electric Fireplace Warranty
