by Dimplex
SKU 3STEP
$4,199.99 - $4,199.99
$4,199.99
$4,199.99 - $4,199.99
$4,199.99

Order With Confidence: We’ll call you before processing your order to confirm the fireplace and required components are compatible with your project.

We Call Before Processing
We Confirm Compatibility
Fireplace Experts Available
Dimplex Optimyst Aura 30" Built In Electric Fireplace
Dimplex Optimyst Aura 30" Built In Electric Fireplace
$4,199.99
Description

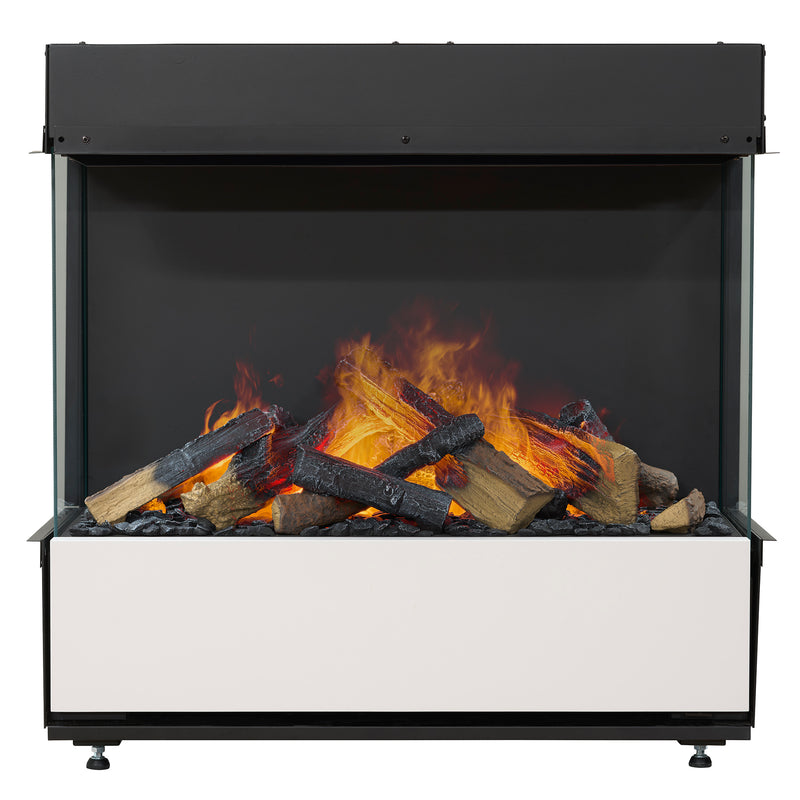

The Dimplex Optimyst Aura 30" Built In Electric Fireplace uses Dimplex Optimyst technology to create a three-dimensional flame effect from water vapor, LED lighting, and fine mist. The 30" firebox can be installed as a front-facing fireplace, left or right corner fireplace, or three-sided bay configuration using the same unit. A pull-out front drawer provides access to the refillable water tank, so a permanent plumbing connection is not required.

The Aura operates on 120V power with a 1,275W fan-forced heater rated by Dimplex for supplemental heating up to 1,000 sq. ft. Flame operation is available independently from heat, with six flame themes, six flame-intensity levels, adjustable crackling sound, and high or low heat settings. Controls are available through the included multi-function remote, in-drawer control panel, or Dimplex Flame Connect app using a Bluetooth connection.

Product Brochure

What’s Included
  • Front glass
  • Side glass panels
  • Refillable water tank

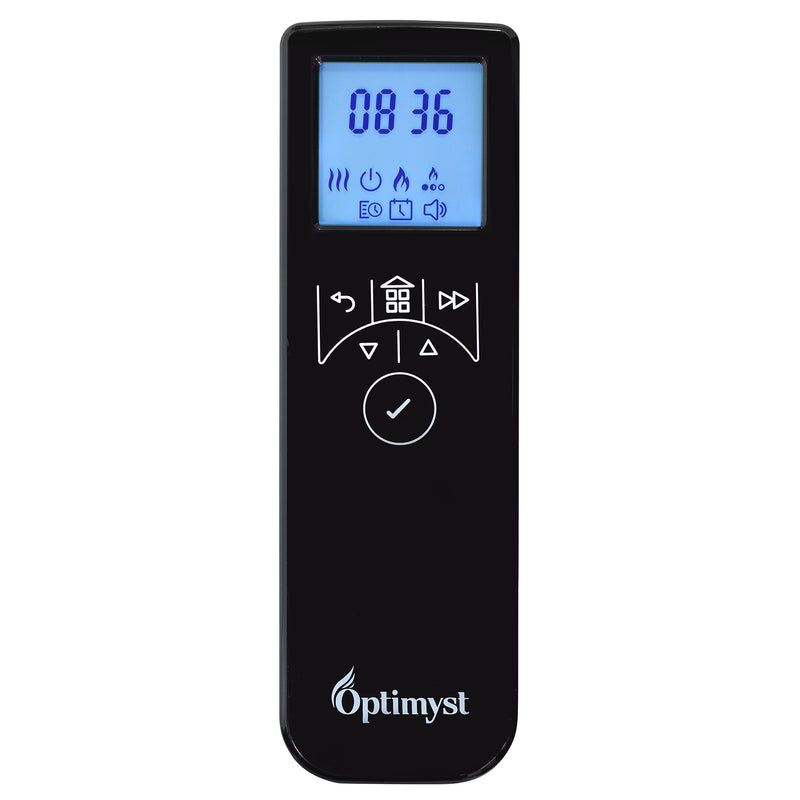

  • Multi-function remote control
  • Two AA batteries
  • Mounting brackets
  • Installation hardware
  • Flame-effect spacers
  • Slotted inserts
  • Installation and User’s Guide
Features

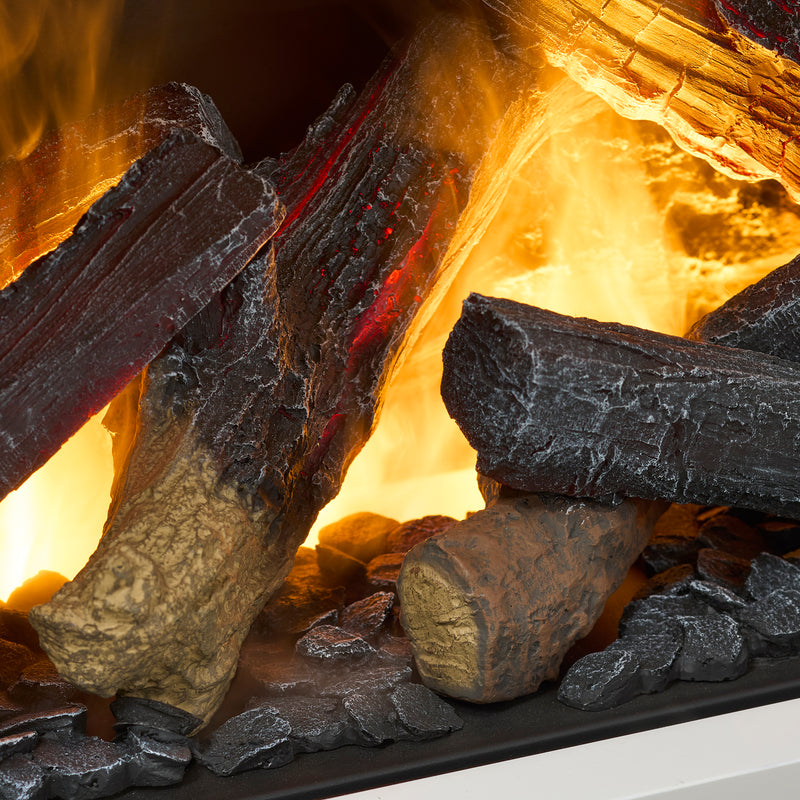

  • Optimyst Water Vapor Flame Effect – Uses LED lighting and fine mist to create a three-dimensional electric flame effect.

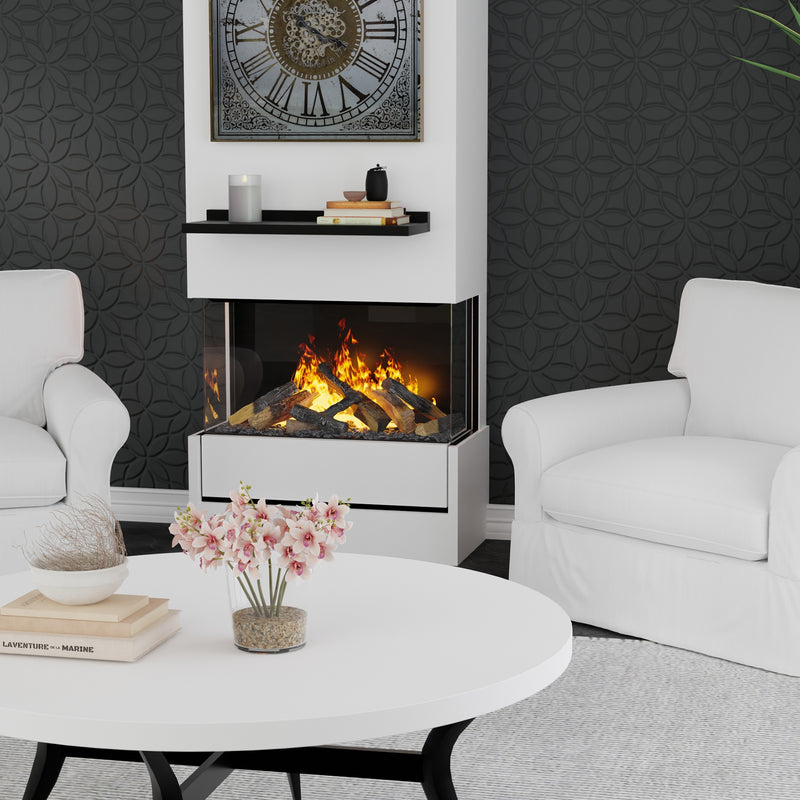

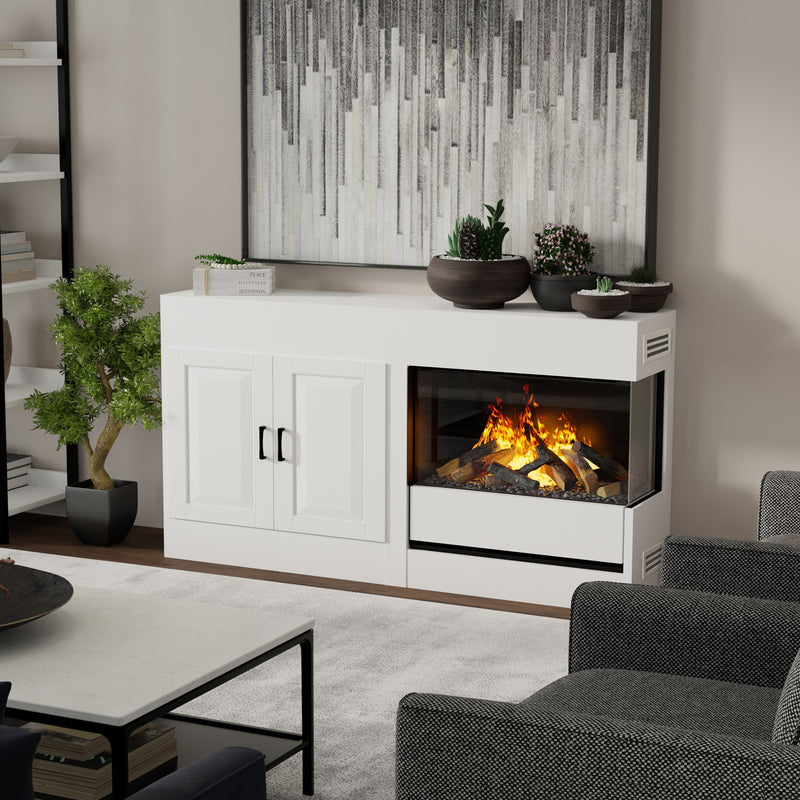

  • Four Viewing Configurations – The same firebox can be installed front-facing, left corner, right corner, or in a three-sided bay configuration.

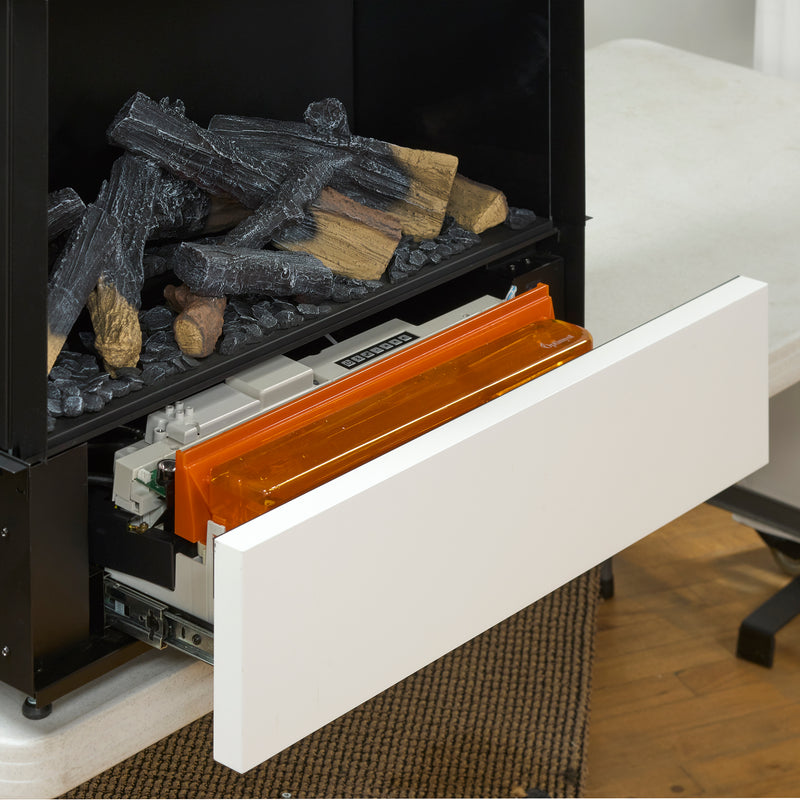

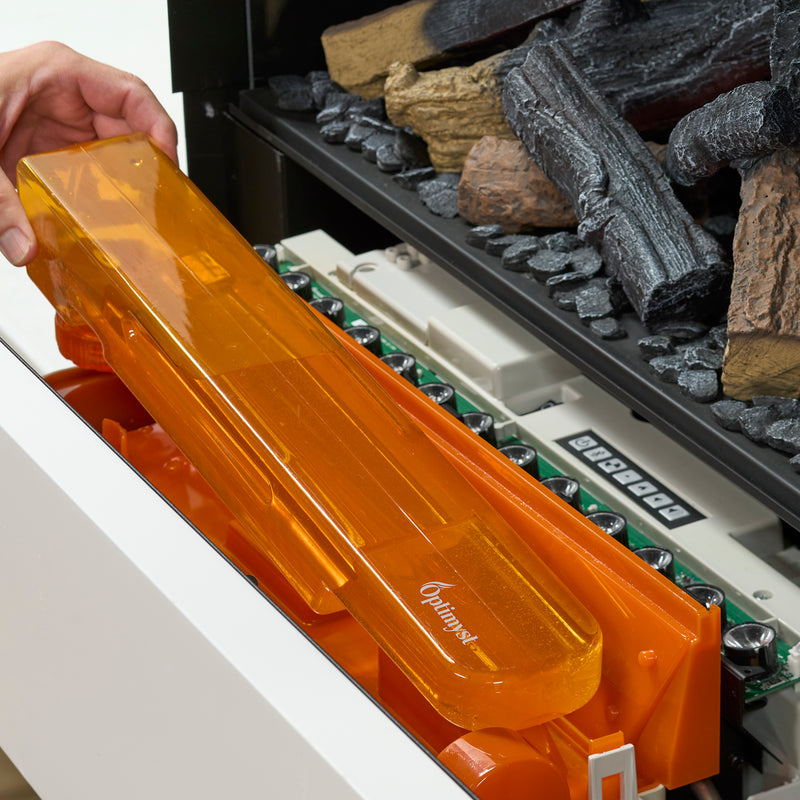

  • Refillable Water System – A pull-out drawer provides access to the refillable water tank without requiring a permanent plumbing connection.

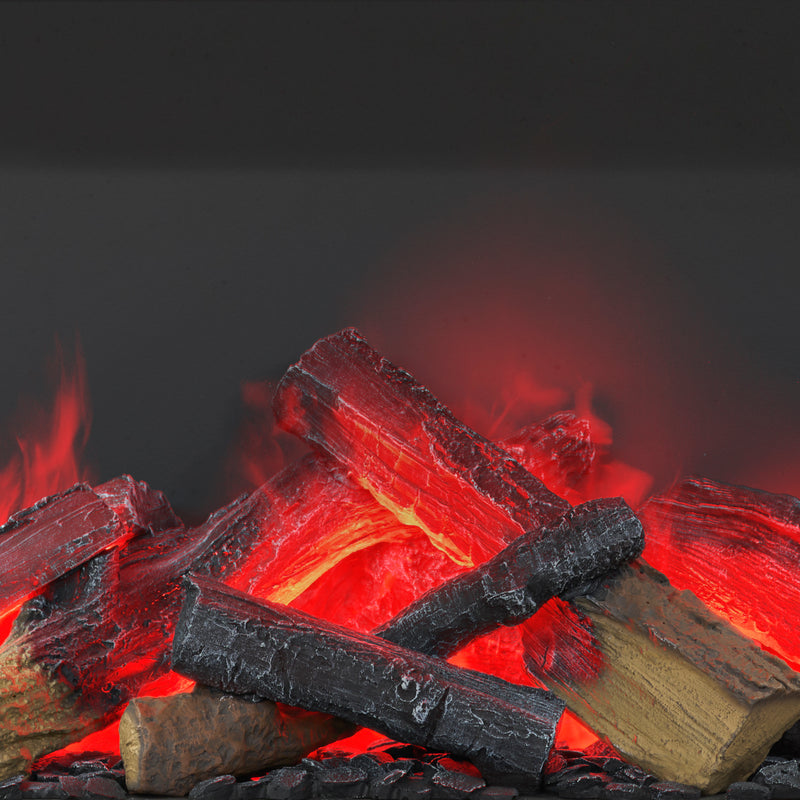

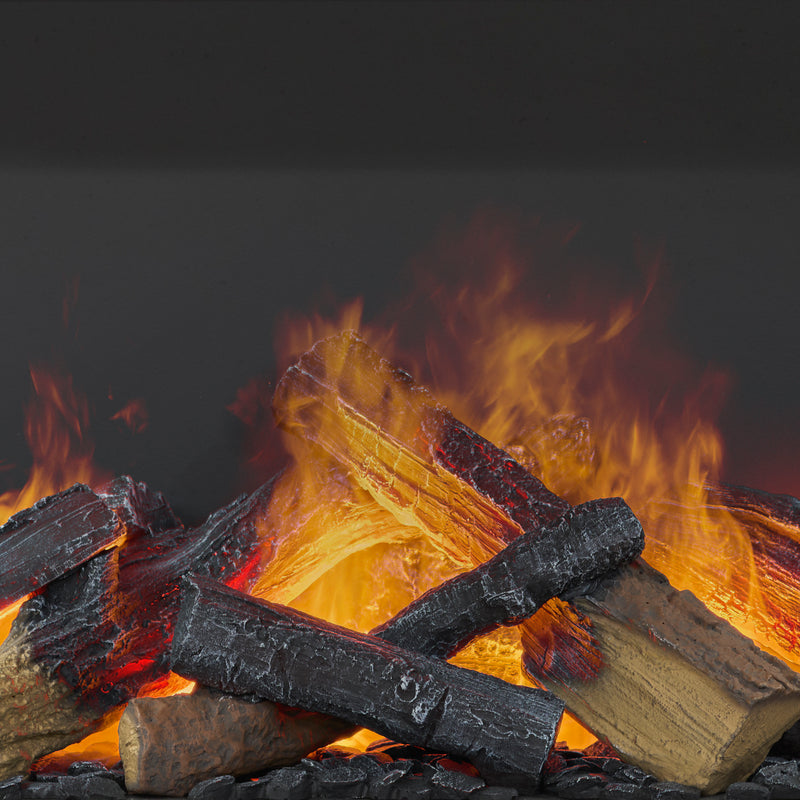

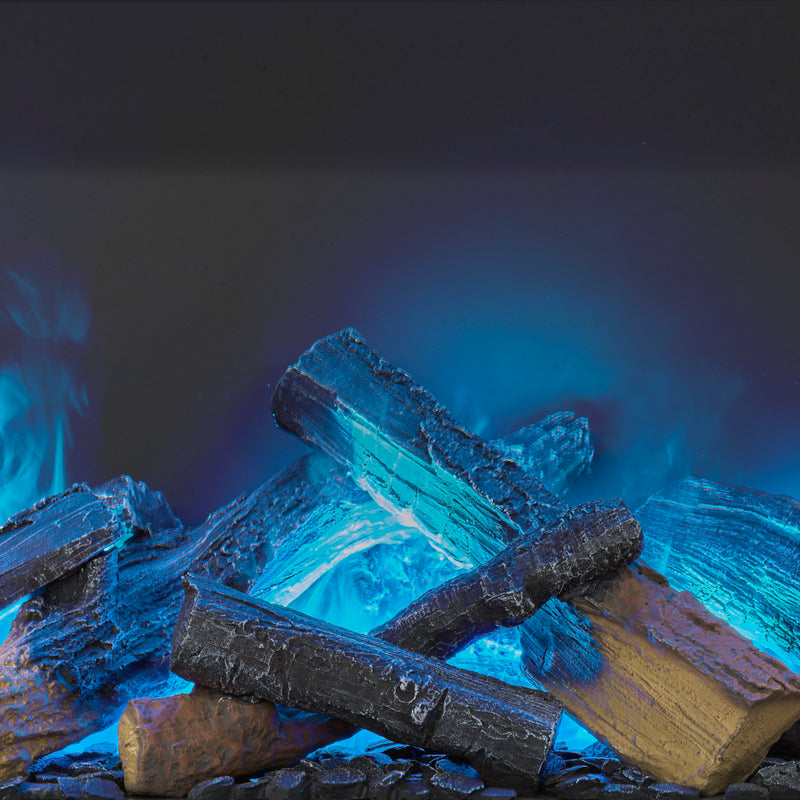

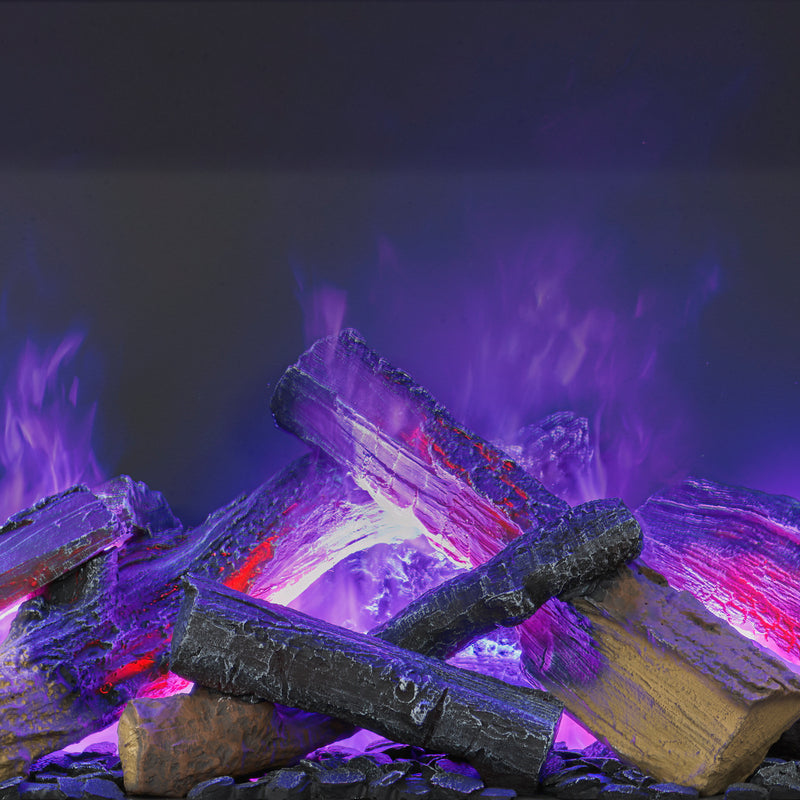

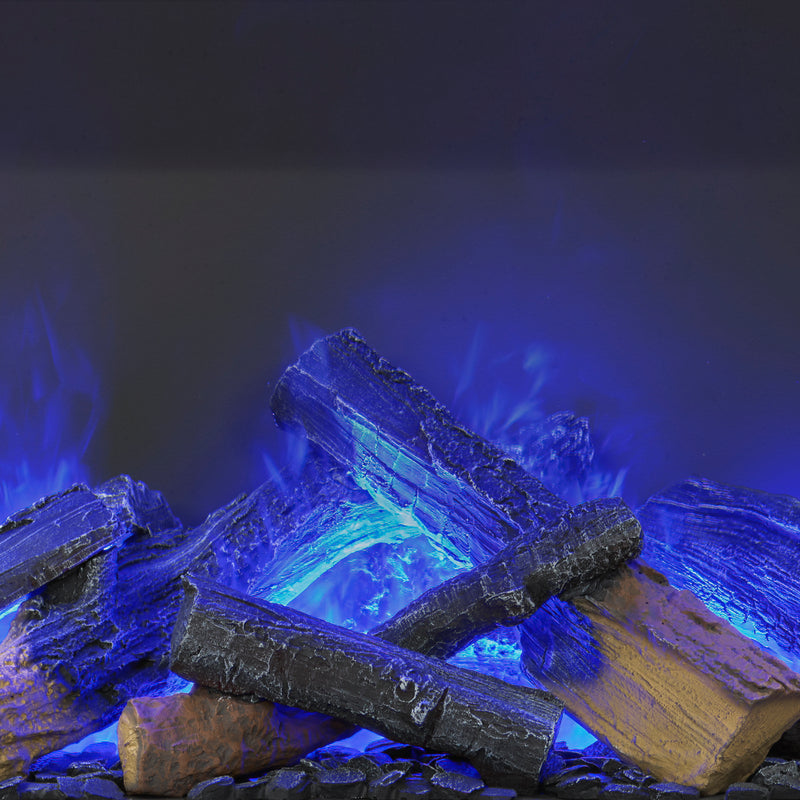

  • Six Flame Themes – Select Natural Flame, Blue, Violet, Red, Aquamarine, or Prism mode.
  • Six Flame Intensity Levels – Adjustable flame height allows the water-vapor effect to be tuned for the installation environment.
  • Adjustable Crackling Sound – Five volume settings and an off setting provide optional wood-fire sound effects.
  • Supplemental Fan-Forced Heat – Provides optional heating rated by Dimplex for spaces up to 1,000 sq. ft.
  • Flame-Only Operation – The flame effect can operate independently from the heater.

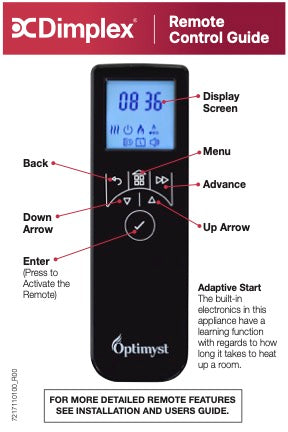

  • Three Control Methods – Operate the fireplace with the Flame Connect app, multi-function remote, or in-drawer controls.
  • Scheduled Heating Functions – Remote functions include programmable schedules, a runback timer, frost protection, and adaptive start.
Dimensions

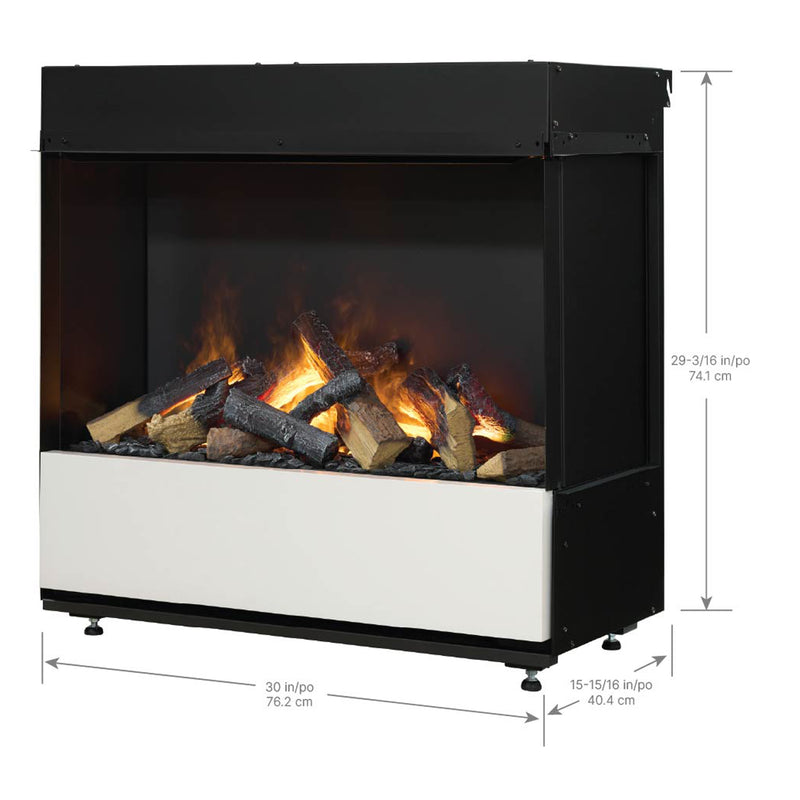

Overall Dimensions
30 in. W × 29-3/16 in. H × 15-15/16 in. D
Framing Dimensions
Front-Facing Framing : 30-3/8 in. W × 29-1/2 in. H × 15-15/16 in. D minimum Three-Sided Framing : 29-1/4 in. W × 29-9/16 in. H × 15-15/16 in. D minimum
Viewing Area
28-9/16 in. W × 14-15/16 in. H
Width
30"
Specifications
Fuel Type
Electric
Installation Type
Built In, Right-Corner, Left-Corner, Bay, Multi-Sided
Style
Traditional
Heating Capacity
Up to 1,000 sq. ft.
Electrical Requirements
120V AC; hardwired or optional power cord connection; dedicated properly fused 15A circuit recommended
Voltage
120V AC
Amps
10.63A
Watts
1,275W
Flame Technology
Optimyst Water Vapor Flame Effect
Flame Generation
LED Lighting and Fine Mist
Viewing Configurations
Front-Facing, Left Corner, Right Corner, Three-Sided Bay
Flame Themes
Natural Flame, Blue, Violet, Red, Aquamarine, Prism
Flame Intensity
6 Levels
Crackle Sound
5 Volume Settings Plus Off
Heat Modes
High, Low, Off
Flame-Only Operation
Yes
Control Methods
Flame Connect App, Multi-Function Remote, In-Drawer Controls
App Connection
Bluetooth
Wi-Fi Control
No
Timer Schedule
4 Programmable Time Slots Per Day
Runback Timer
30 Minutes, 1 Hour, 1.5 Hours, 2 Hours, 4 Hours, 8 Hours
Frost Protection
Activates Below 7°C
Adaptive Start
Yes
Mist Extraction Fan
High and Low Settings
Water Supply
Refillable Water Tank
Permanent Plumbing Required
No
Upper Fresh Air Inlet
Minimum 29 in²
Lower Fresh Air Inlet
16 in² Recommended for Optimal Flame Performance
Warm-Up Time
Approximately 45 Seconds
Drawer Finish Weight Limit
5 lbs.
Outdoor Use
No
Optional Air Intake Grille
X-00275
