by Dimplex
SKU OLF46-AM
$6,499.00 - $9,749.99
$6,499.00
$6,499.00 - $9,749.99
$6,499.00

Order With Confidence: We’ll call you before processing your order to confirm the fireplace and required components are compatible with your project.

We Call Before Processing
We Confirm Compatibility
Fireplace Experts Available
Dimplex Optimyst Linear Built In Electric Fireplace
Dimplex Optimyst Linear Built In Electric Fireplace
$6,499.00
Description

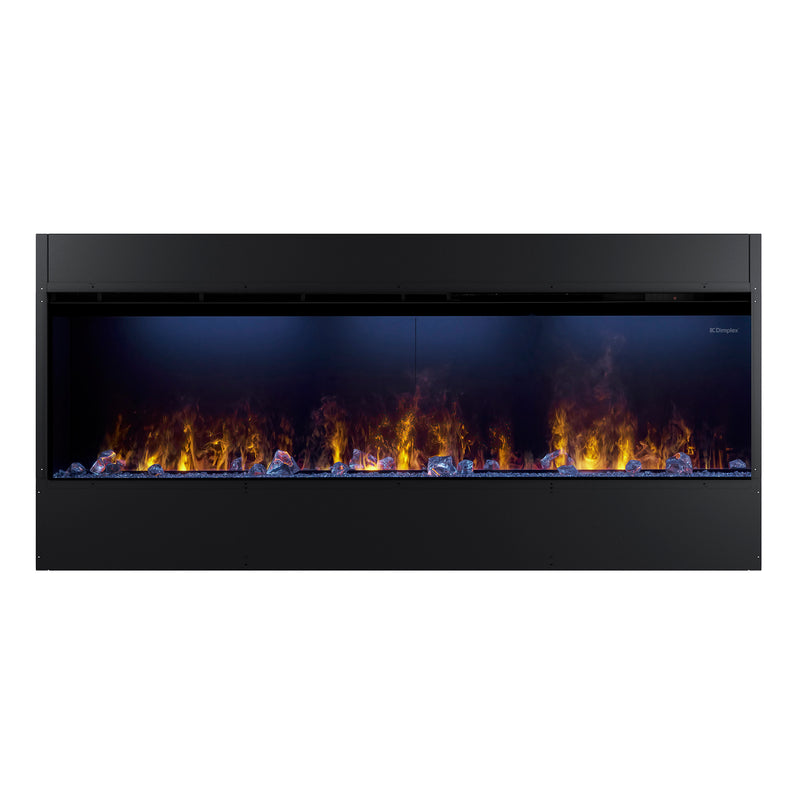

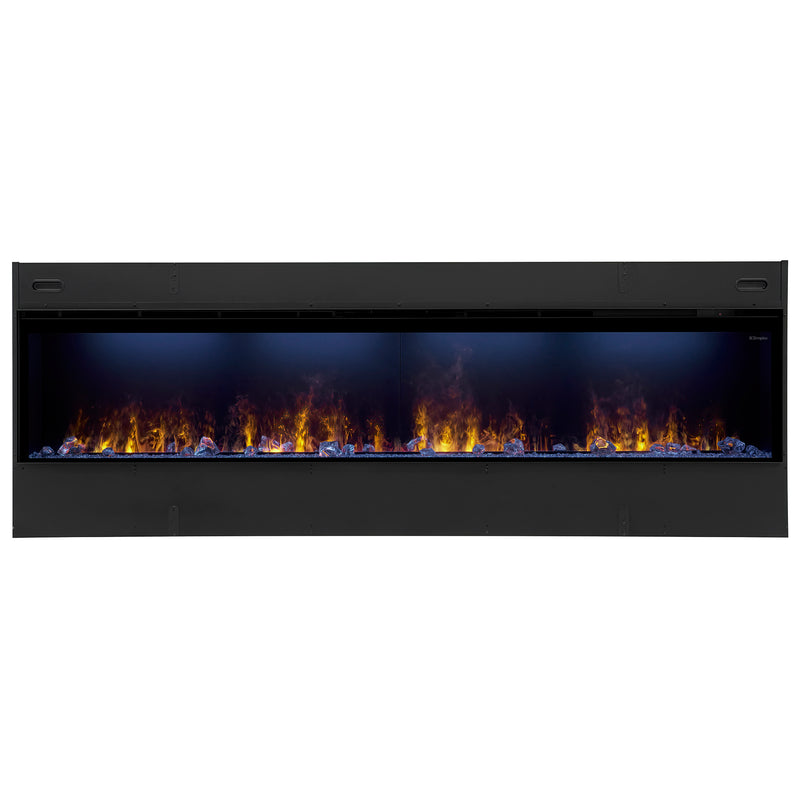

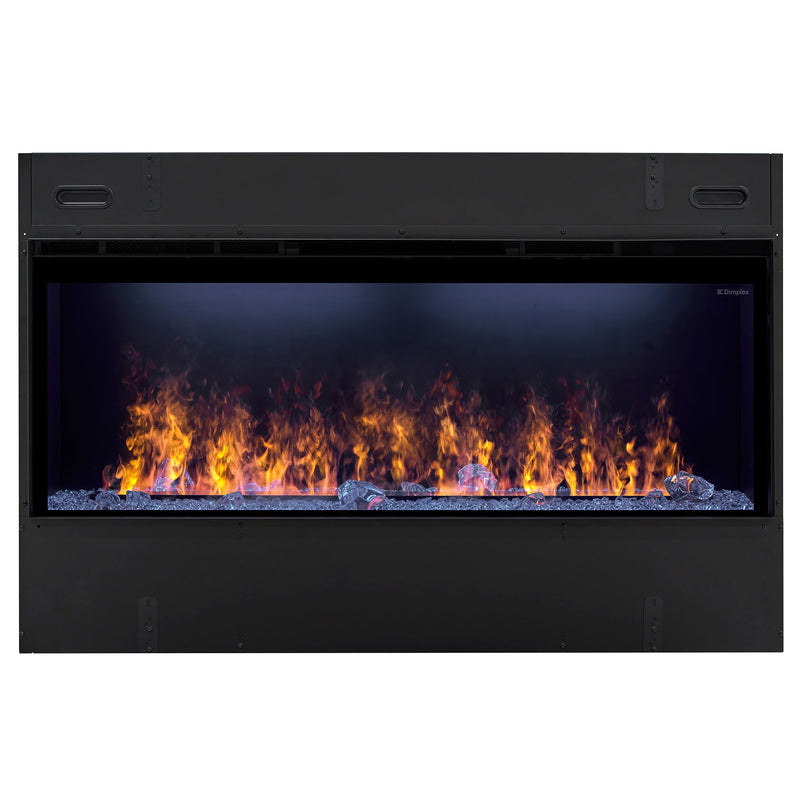

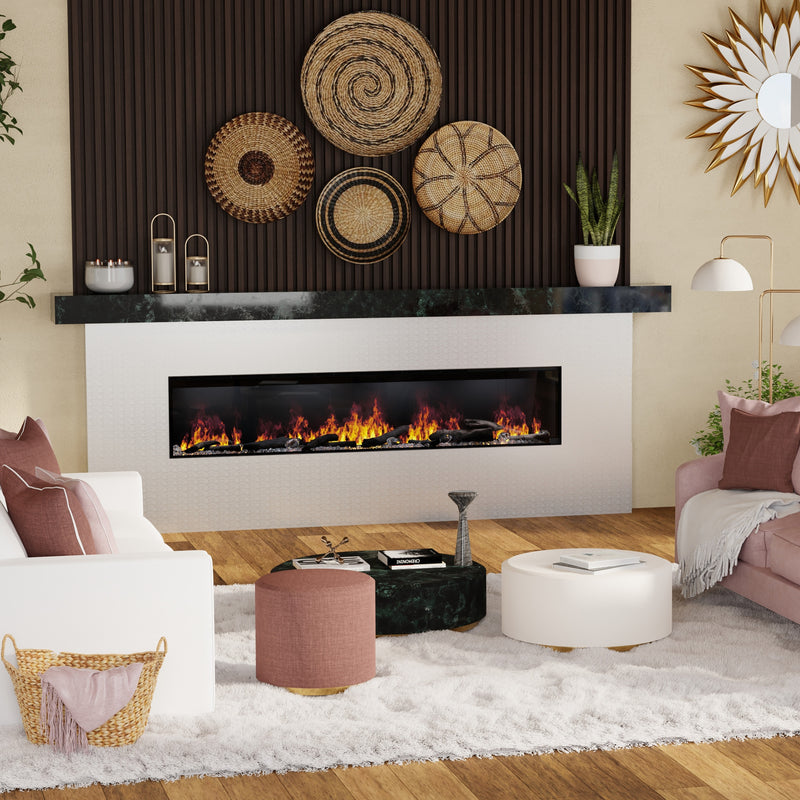

The Dimplex Optimyst Linear Built In Electric Fireplace creates a three-dimensional flame effect using fine water vapor and LED lighting. Available in 46", 66", and 86" models, the zero-clearance firebox has a slim 11-7/8" depth and requires no exhaust venting. Acrylic crystal media and driftwood are included to complete the flame presentation.

ComfortSaver heating provides supplemental heat for spaces up to 1,000 sq. ft., while the flame effect can operate without heat for year-round use. Control the fireplace with the included Bluetooth remote, hidden touch controls, or Dimplex Flame Connect app. The unit supports 120V or 240V installation and is designed for a 1/4" cold-water connection; the 86" model requires 240V for heat output.

Product Brochure

What’s Included
  • Front glass

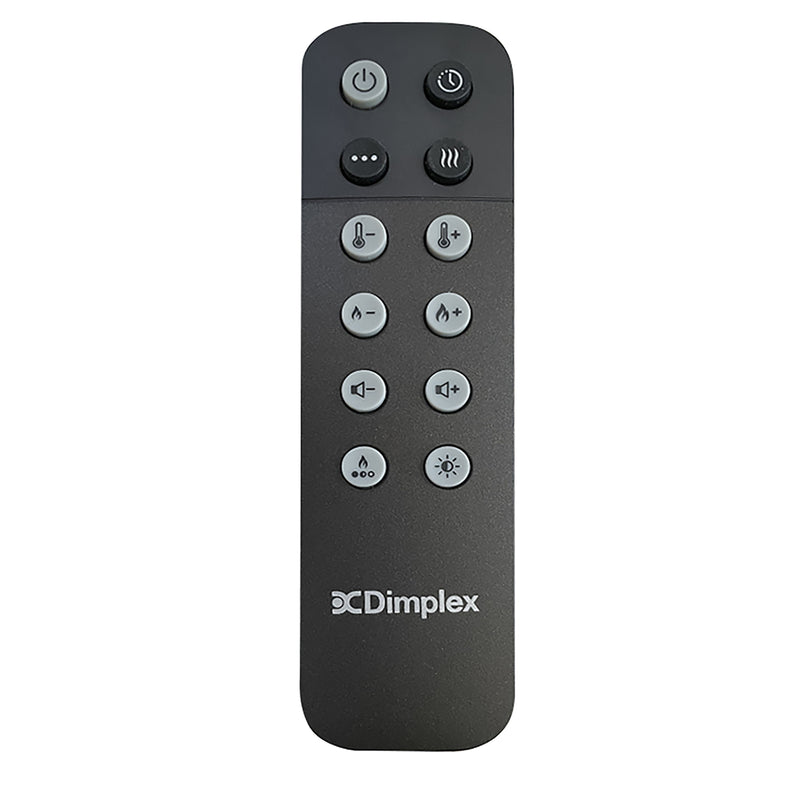

  • Multifunction Bluetooth remote control
  • Two 3V batteries

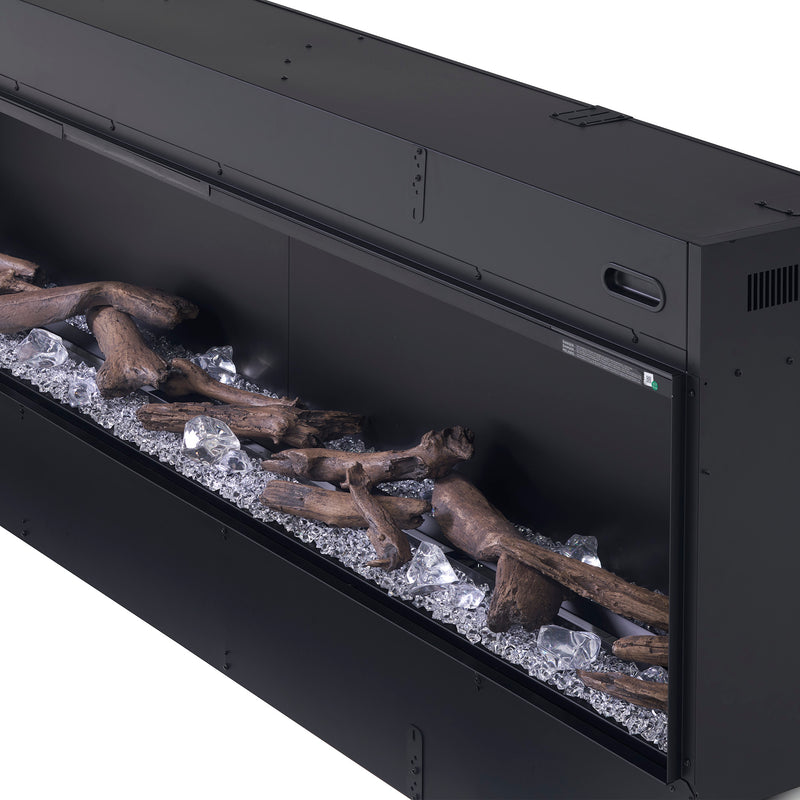

  • Acrylic crystal media
  • Driftwood media
  • Spare transducers
  • Suction cups
  • Flame baffles
  • Bubble level
  • Wood screws
  • Installation and user guide
Features
  • Optimyst 3D Flame Effect – Fine water vapor and LED lighting create a dimensional flame effect with the appearance of fire and smoke.
  • Slim Built In Design – The zero-clearance firebox is only 11-7/8" deep for a streamlined recessed installation.
  • ComfortSaver Heating – Automatically adjusts fan speed and heater wattage based on the thermostat setting and provides supplemental heating for up to 1,000 sq. ft.
  • Year-Round Flame Operation – The flame effect can operate independently from the heater.

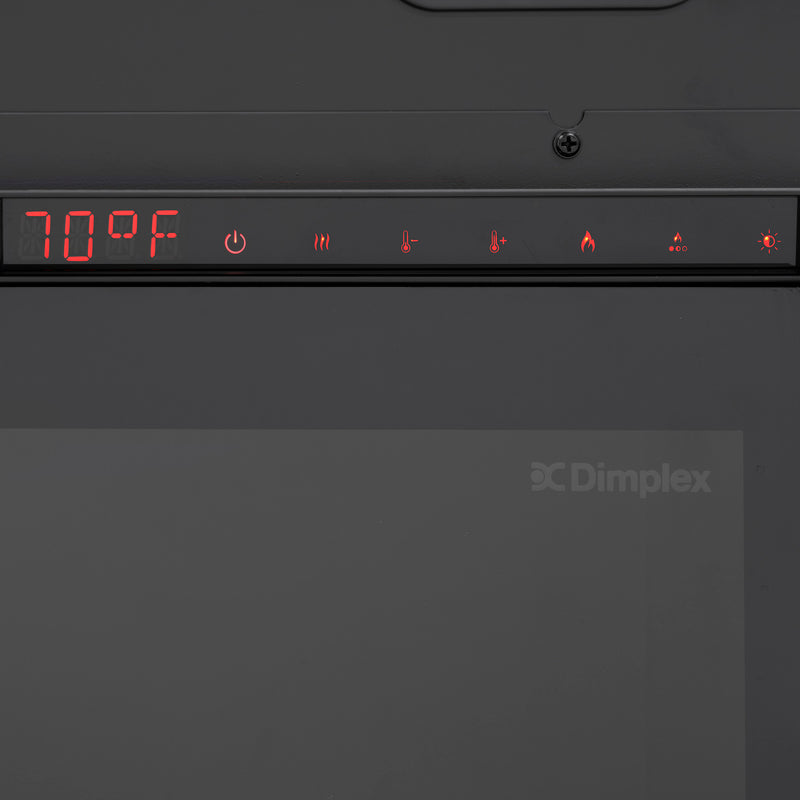

  • Multiple Control Methods – Operate the fireplace using the Flame Connect app, included multifunction Bluetooth remote, or hidden touch controls.

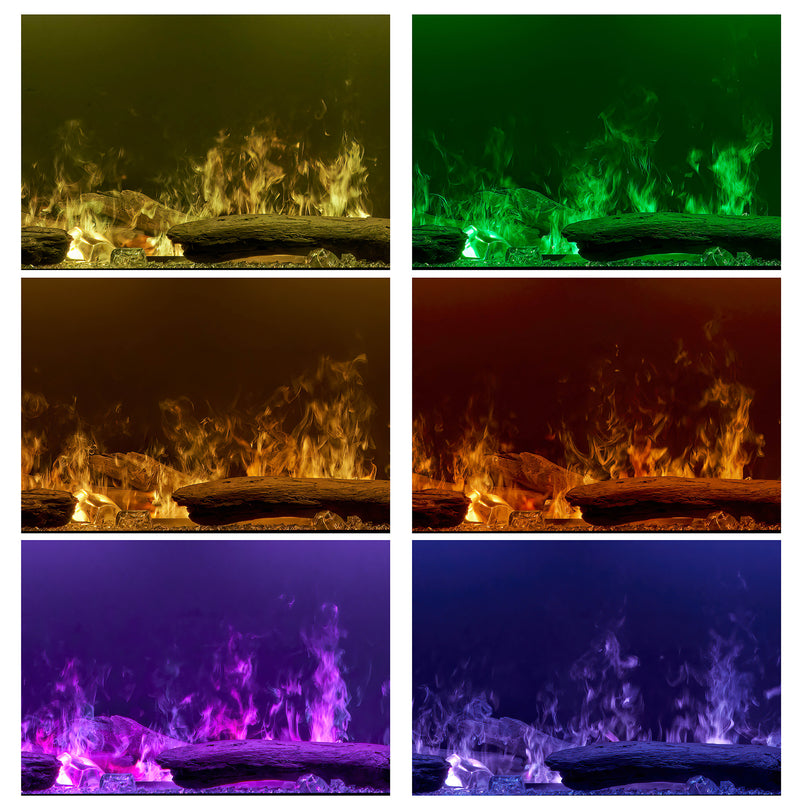

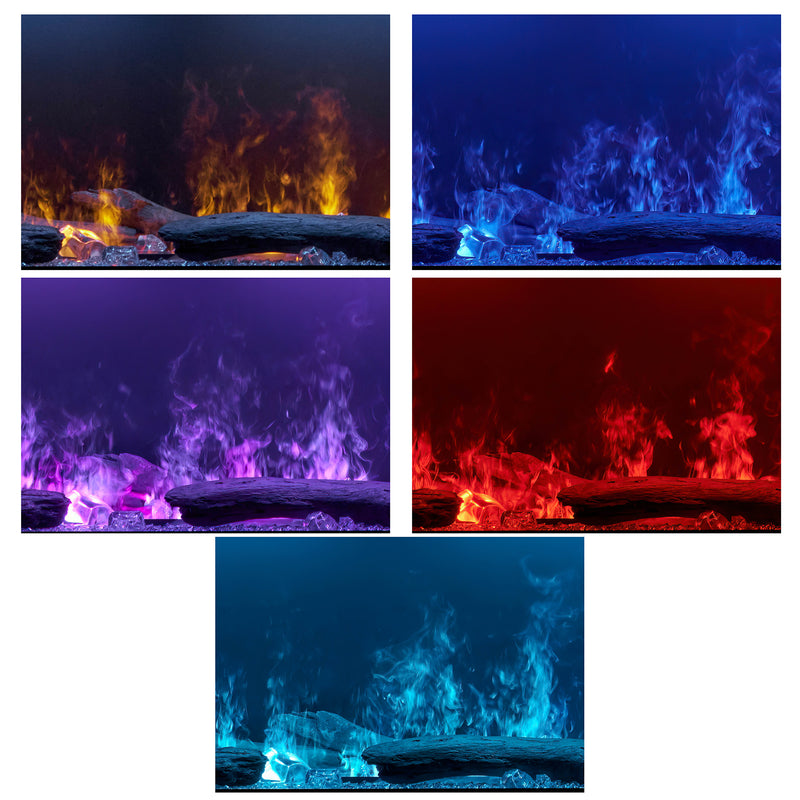

  • Eight Ambient & Flame Themes – Choose Natural Flame, Blue, Violet, Red, Aquamarine, Prism, Kaleidoscope, or a custom app-controlled theme.

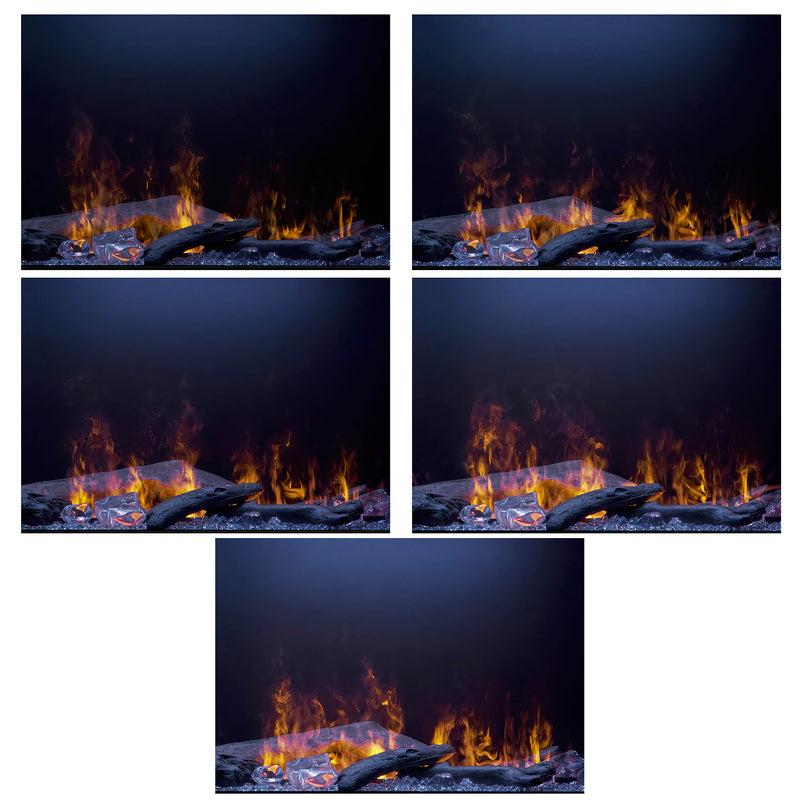

  • Adjustable Flame & Lighting – Flame intensity offers Low, Medium, and High settings while top lighting provides five brightness levels plus a pulsating effect.
  • Multiple Heat Modes – Normal, Eco, Heat Boost, Frost Protection, and Fan modes provide flexible heater operation.
  • Continuous Water Supply – Designed for connection to a cold-water source using standard 1/4" O.D. tubing.
Dimensions
Model OLF46-AM - 46"

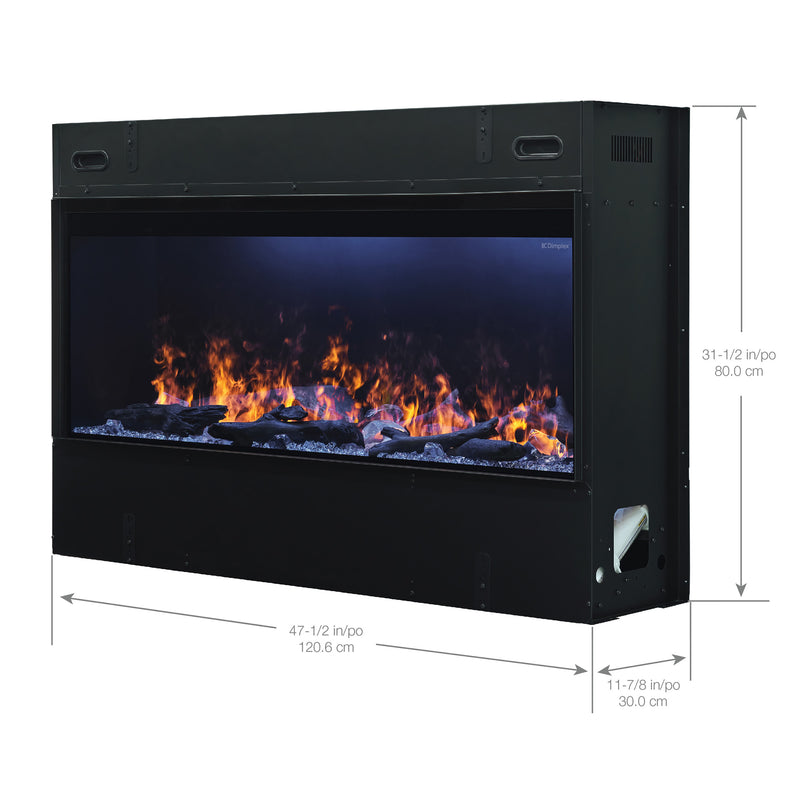

Overall Dimensions
47-1/2" W X 31-1/2" H X 11-7/8" D
Framing Dimensions
48" W X 32-1/2" H X 12" D
Viewing Area
44-1/4" W X 14-3/8" H
Width
46"
Model OLF66-AM - 66"

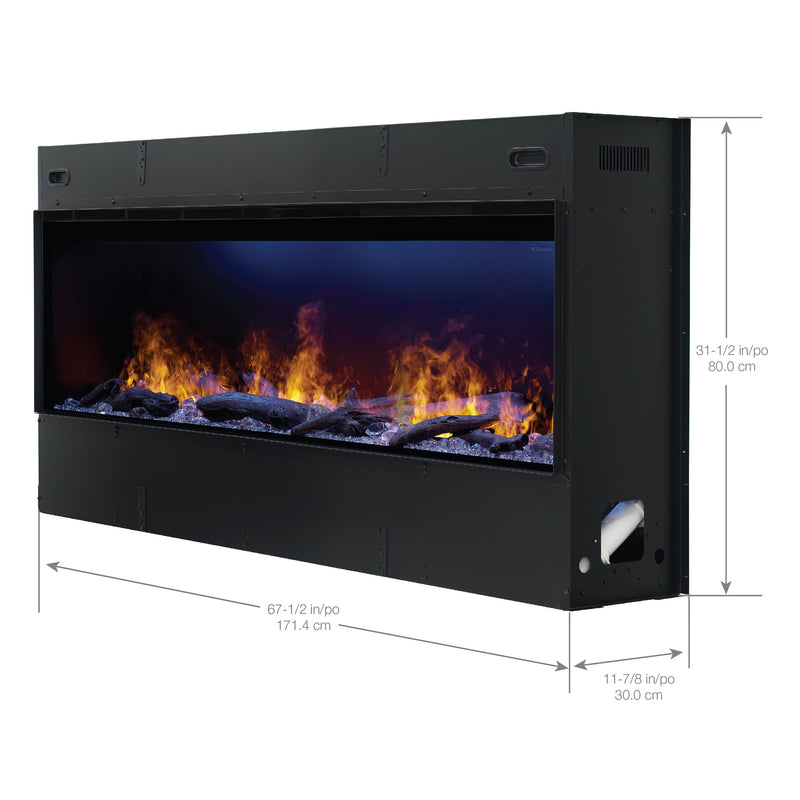

Overall Dimensions
67-1/2" W X 31-1/2" H X 11-7/8" D
Framing Dimensions
68" W X 32-1/2" H X 12" D
Viewing Area
64-1/4" W X 14-3/8" H
Width
66"
Model OLF86-AM - 86"
Overall Dimensions

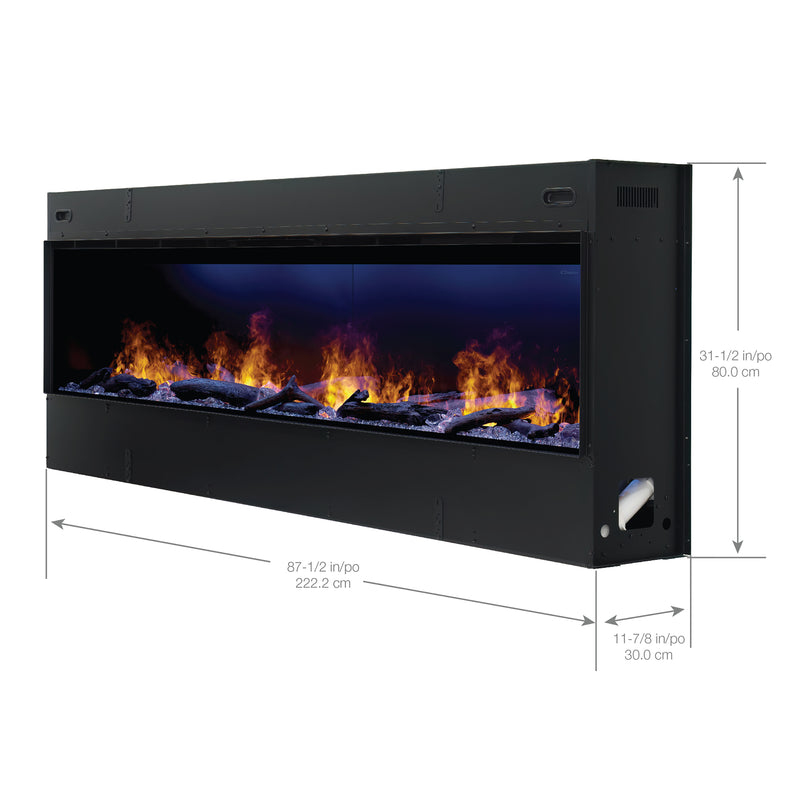

87-1/2" W X 31-1/2" H X 11-7/8" D
Framing Dimensions
88" W X 32-1/2" H X 12" D
Viewing Area
84-1/4" W X 14-3/8" H
Width
86"
Specifications
Model OLF46-AM - 46"
Fuel Type
Electric
Installation Type
Built In
Style
Linear
Weight
149.6 lbs. (packaged)
Heating Capacity
Heats up to 1,000 sq. Ft.
Electrical Requirements
120V Hardwired, 240V Hardwired
Voltage
120V / 240V
Amps
10.2 Amps (120V) / 8 Amps (240V)
Watts
1,220W (120V) / 1,920W (240V)
Flame Technology
Optimyst Water Vapor and LED
Flame Intensity
Low, Medium, High
Ambient & Flame Themes
Natural Flame, Blue, Violet, Red, Aquamarine, Prism, Kaleidoscope, Custom
Top Light Brightness
5 Levels and Pulsating Effect
Heat-Free Operation
Yes
Heat Modes
Normal, Eco, Heat Boost, Frost Protection, Fan
Temperature Range
59°F–86°F
Timer
30 Minutes–8 Hours
Sound Effect
Crackling Sound, Off–Level 6
Control Methods
Flame Connect App, Multifunction Bluetooth Remote, Hidden Touch Controls
Water Supply Connection
1/4" O.D. Cold-Water Tubing
Fresh Air Inlet
Required
Fresh Air Inlet Area
OLF46-AM 80 in², OLF66-AM 120 in², OLF86-AM 160 in²
Optional Plug Kit
OLFPLUG, 120V Installations Only
Optional Plumbing Kit
CDFIPLUMB-KIT for Copper Piping
Optional Air Intake Grille
X-00275
Model OLF66-AM - 66"
Fuel Type
Electric
Installation Type
Built In
Style
Linear
Weight
206.8 lbs. (packaged)
Heating Capacity
Heats up to 1,000 sq. Ft.
Electrical Requirements
120V Hardwired, 240V Hardwired
Voltage
120V / 240V
Amps
10.2 Amps (120V) / 8 Amps (240V)
Watts
1,220W (120V) / 1,920W (240V)
Flame Technology
Optimyst Water Vapor and LED
Flame Intensity
Low, Medium, High
Ambient & Flame Themes
Natural Flame, Blue, Violet, Red, Aquamarine, Prism, Kaleidoscope, Custom
Top Light Brightness
5 Levels and Pulsating Effect
Heat-Free Operation
Yes
Heat Modes
Normal, Eco, Heat Boost, Frost Protection, Fan
Temperature Range
59°F–86°F
Timer
30 Minutes–8 Hours
Sound Effect
Crackling Sound, Off–Level 6
Control Methods
Flame Connect App, Multifunction Bluetooth Remote, Hidden Touch Controls
Water Supply Connection
1/4" O.D. Cold-Water Tubing
Fresh Air Inlet
Required
Fresh Air Inlet Area
OLF46-AM 80 in², OLF66-AM 120 in², OLF86-AM 160 in²
Optional Plug Kit
OLFPLUG, 120V Installations Only
Optional Plumbing Kit
CDFIPLUMB-KIT for Copper Piping
Optional Air Intake Grille
X-00275
Model OLF86-AM - 86"
Fuel Type
Electric
Installation Type
Built In
Style
Linear
Weight
264 lbs. (packaged)
Heating Capacity
Heats up to 1,000 sq. Ft.
Electrical Requirements
120V Hardwired, 240V Hardwired
Voltage
240V for heat operation, 120V for flame effect only
Amps
10.2 Amps (120V) / 8 Amps (240V)
Watts
1,220W (120V) / 1,920W (240V)
Flame Technology
Optimyst Water Vapor and LED
Flame Intensity
Low, Medium, High
Ambient & Flame Themes
Natural Flame, Blue, Violet, Red, Aquamarine, Prism, Kaleidoscope, Custom
Top Light Brightness
5 Levels and Pulsating Effect
Heat-Free Operation
Yes
Heat Modes
Normal, Eco, Heat Boost, Frost Protection, Fan
Temperature Range
59°F–86°F
Timer
30 Minutes–8 Hours
Sound Effect
Crackling Sound, Off–Level 6
Control Methods
Flame Connect App, Multifunction Bluetooth Remote, Hidden Touch Controls
Water Supply Connection
1/4" O.D. Cold-Water Tubing
Fresh Air Inlet
Required
Fresh Air Inlet Area
OLF46-AM 80 in², OLF66-AM 120 in², OLF86-AM 160 in²
Optional Plug Kit
OLFPLUG, 120V Installations Only
Optional Plumbing Kit
CDFIPLUMB-KIT for Copper Piping
Optional Air Intake Grille
X-00275
