Dimplex Slim Linear Built In Electric Fireplace

$1,399.00

Description

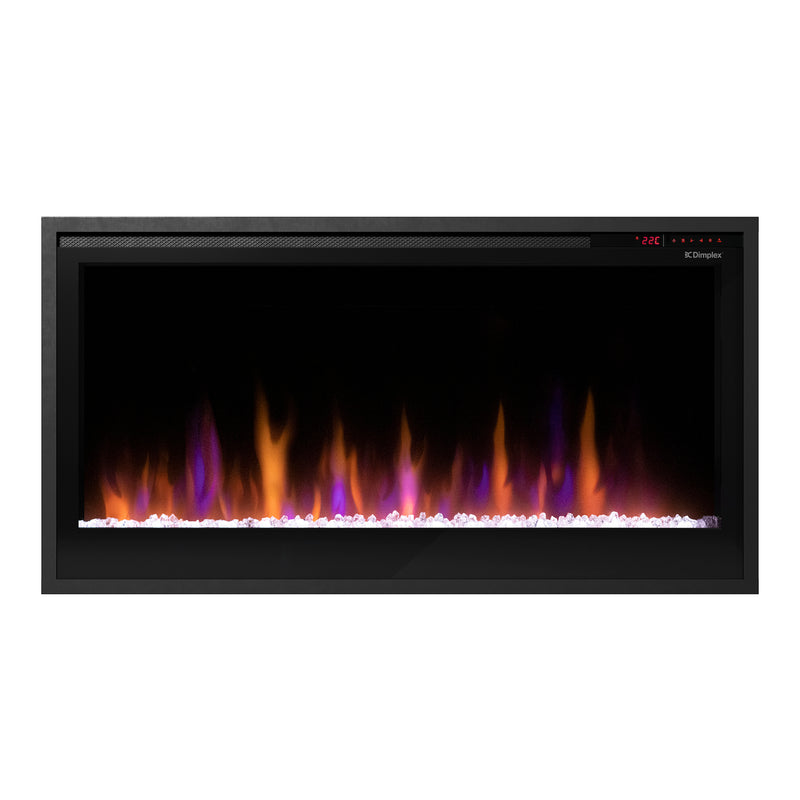

The Dimplex Slim Linear Electric Fireplace is a built in or wall mounted electric fireplace with a slim profile that can be fully recessed into standard 2x4 framing or mounted on the wall. Available in 36", 42", 50", and 60" widths, it uses Dimplex LED flame technology with adjustable flame themes, flame speed, brightness, and acrylic crystal media. No fuel or venting is required.

The fireplace operates on 120V power and provides 1,500W of fan-forced heat, up to 5,118 BTU, with manufacturer-stated heating coverage up to 1,000 sq. ft. Flame effects can operate without heat for year-round use. Controls include the Flame Connect app, included multi-function remote, and hidden touch panel, with thermostat control, an ambient light sensor, and a timer from 30 minutes to 8 hours. The unit is designed for 120V hardwired installation; an optional plug kit is sold separately.

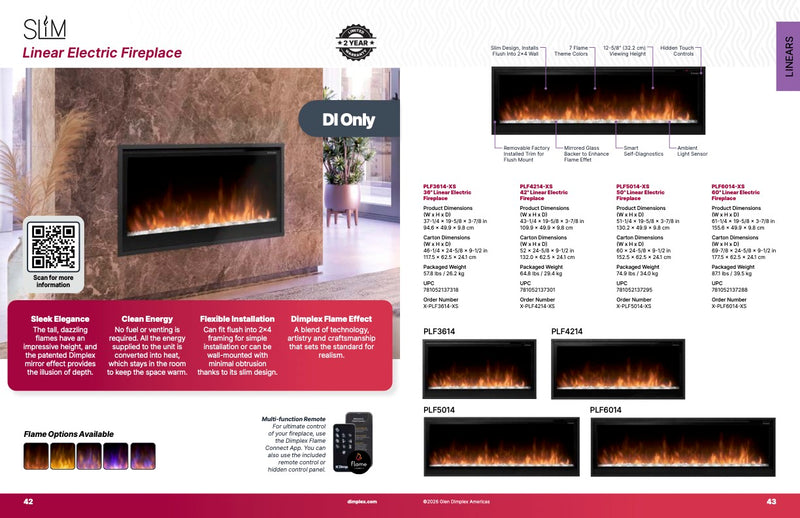

Product Brochure

What’s Included

Firebox
Front Glass
Mirrored Glass
Wall Mount Bracket
Acrylic Crystal Media Bed

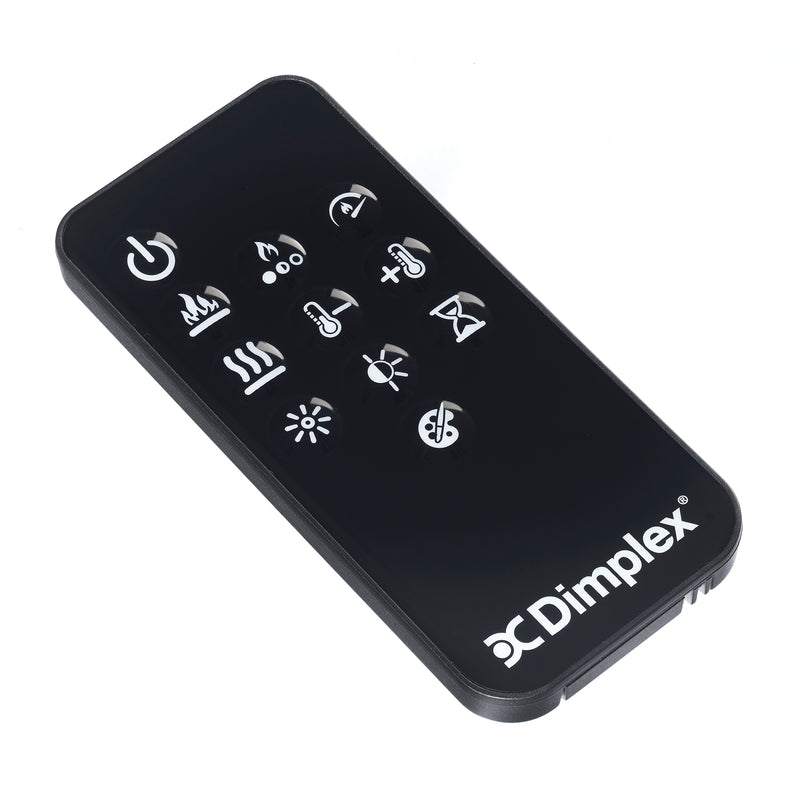

Multifunction Remote Control
Installation and User's Guide
Suction Cup
36" and 42" Models: 1 Bag of Acrylic Crystals
50" and 60" Models: 2 Bags of Acrylic Crystals

Features

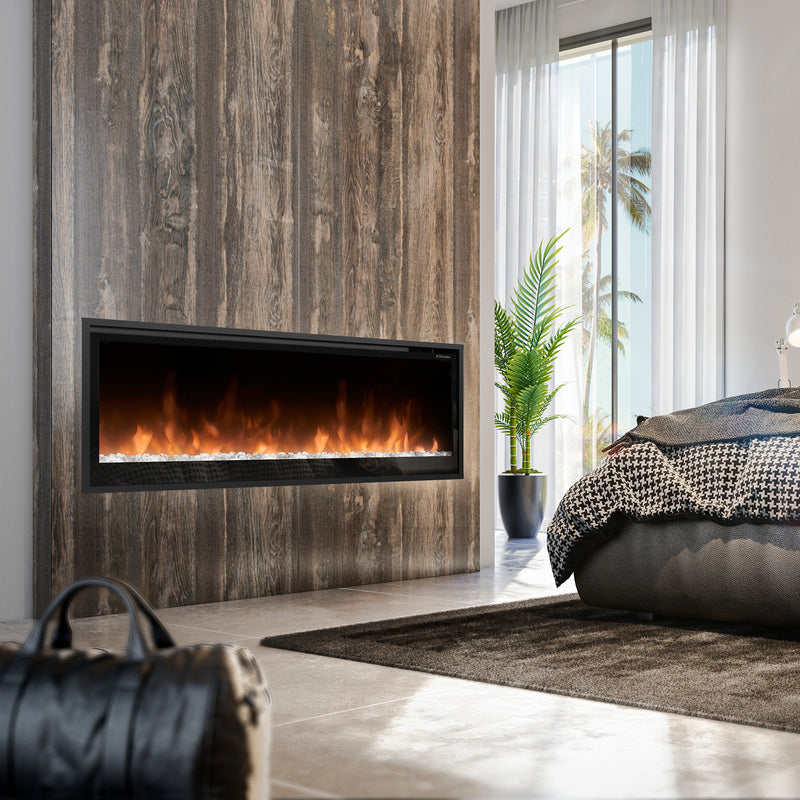

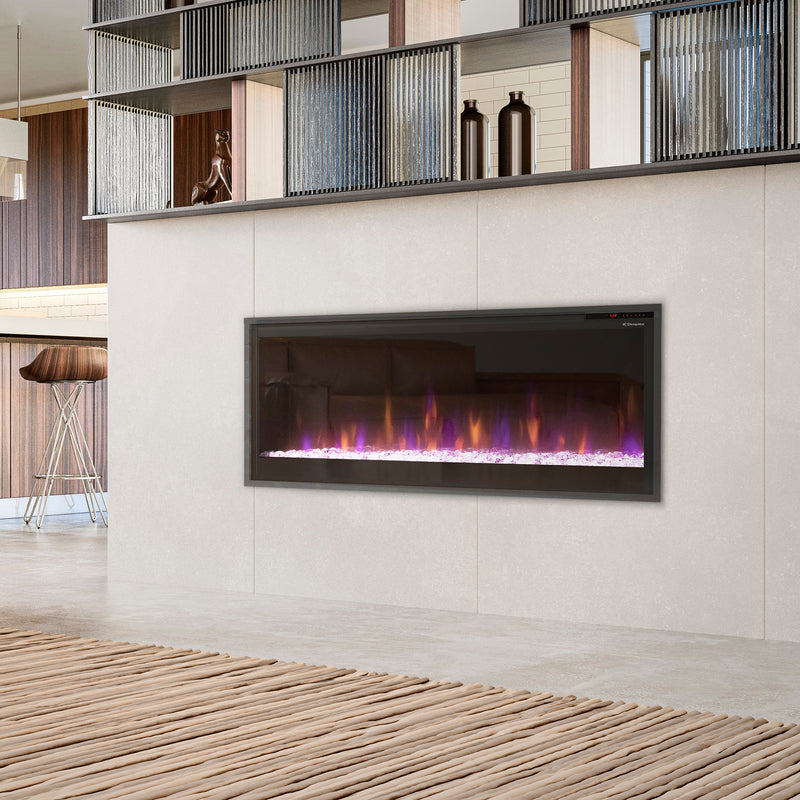

Slim Recessed Installation – Can be fully recessed into standard 2x4 framing for a low-profile built in installation.

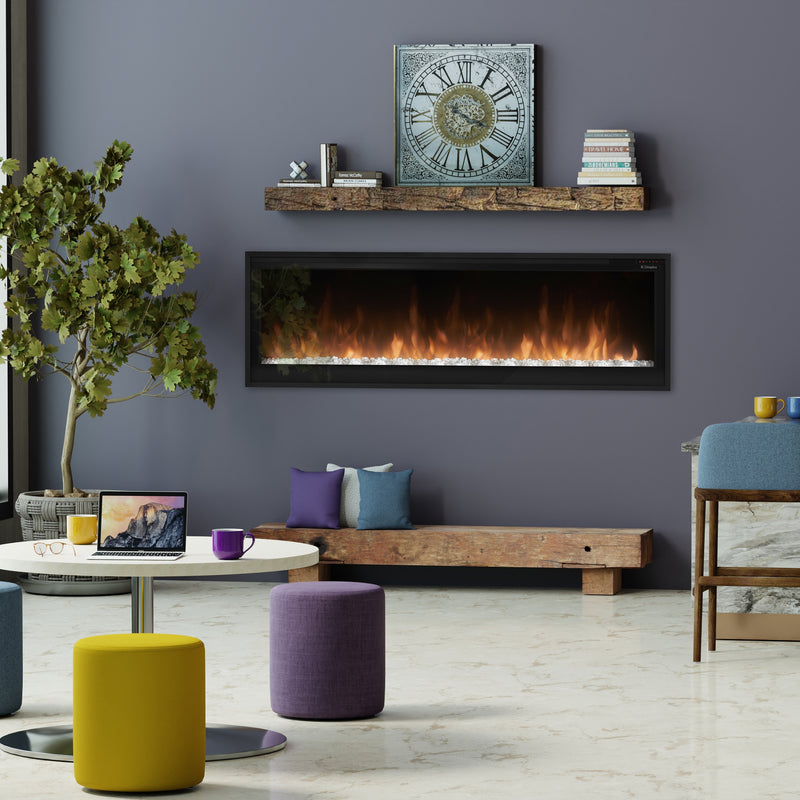

Wall Mounted Installation – The included wall-mount bracket allows the fireplace to be installed directly on a wall.
5,118 BTU Supplemental Heat – Provides 1,500 watts of fan-forced electric heat with manufacturer-stated heating coverage up to 1,000 sq. ft.

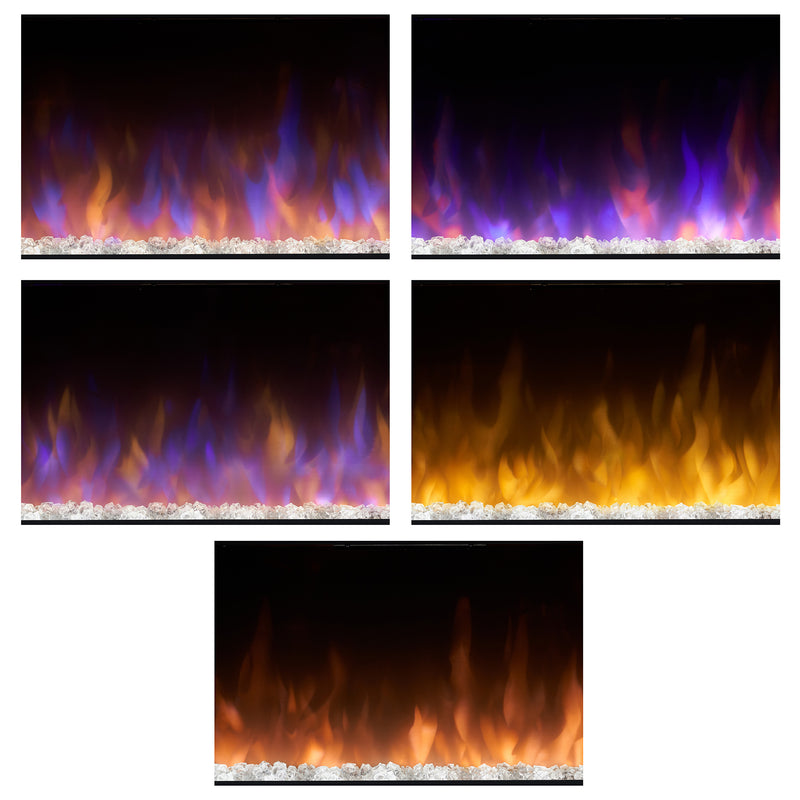

Customizable Flame Display – Seven flame themes, five flame speeds, and adjustable brightness settings provide control over the flame presentation.

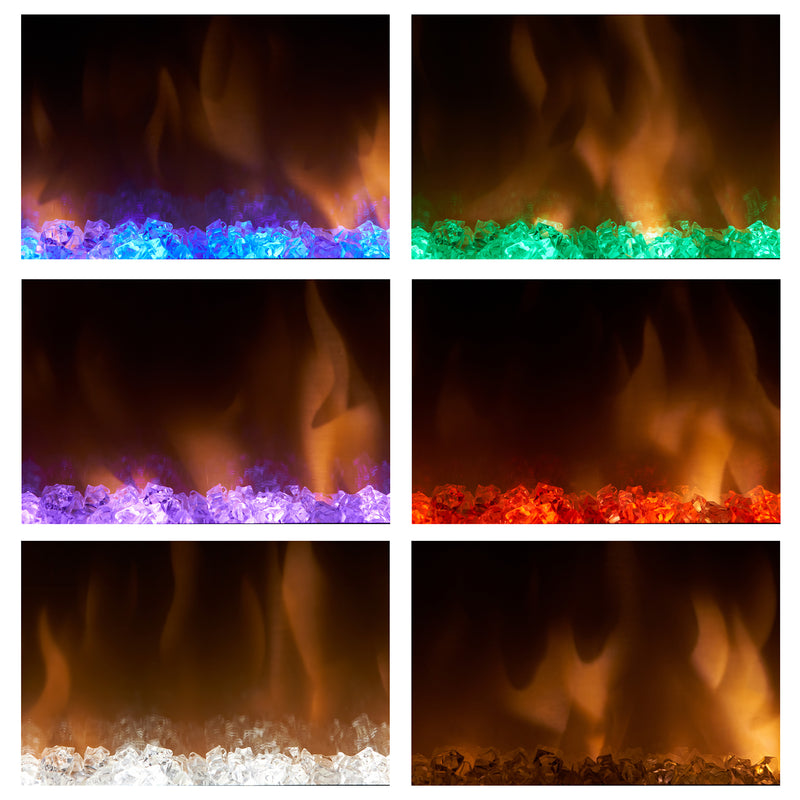

Adjustable Media Bed Lighting – Eight lighting moods and a custom color function control the appearance of the acrylic crystal media bed.
Year-Round Flame Operation – The flame effect can operate independently from the heater.
Flame Connect App Control – Fireplace settings can be controlled from a compatible mobile device using the Dimplex Flame Connect app.

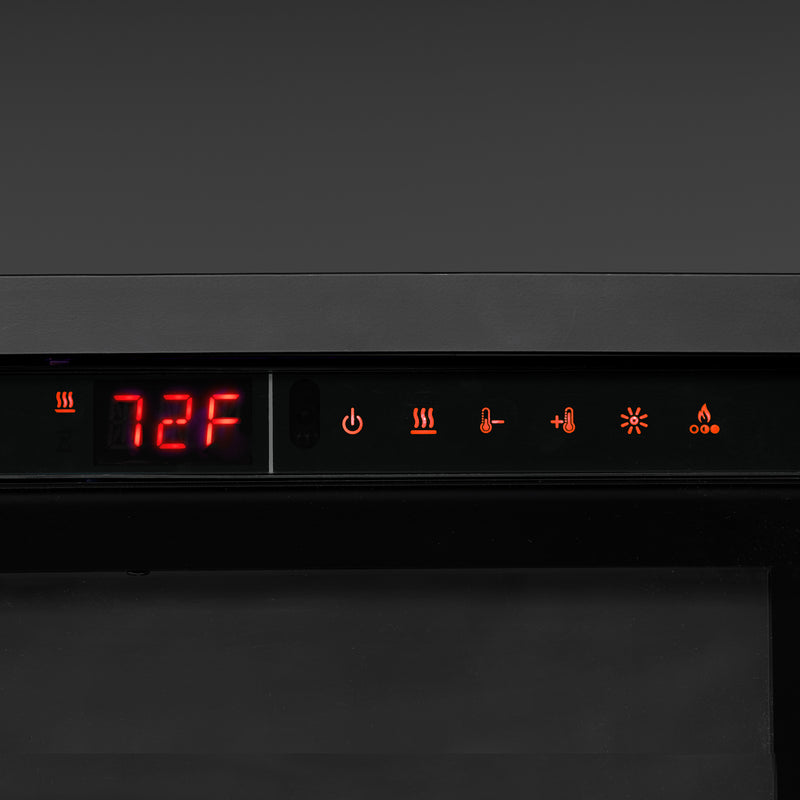

Remote and Hidden Touch Controls – Operate the fireplace using the included multi-function remote control or the hidden touch control panel.
Thermostat and Timer Control – Temperature can be set from 45°F to 86°F, and the timer can be programmed from 30 minutes to 8 hours.
Ambient Light Sensor – Automatically adjusts fireplace lighting brightness based on ambient light conditions.

Dimensions

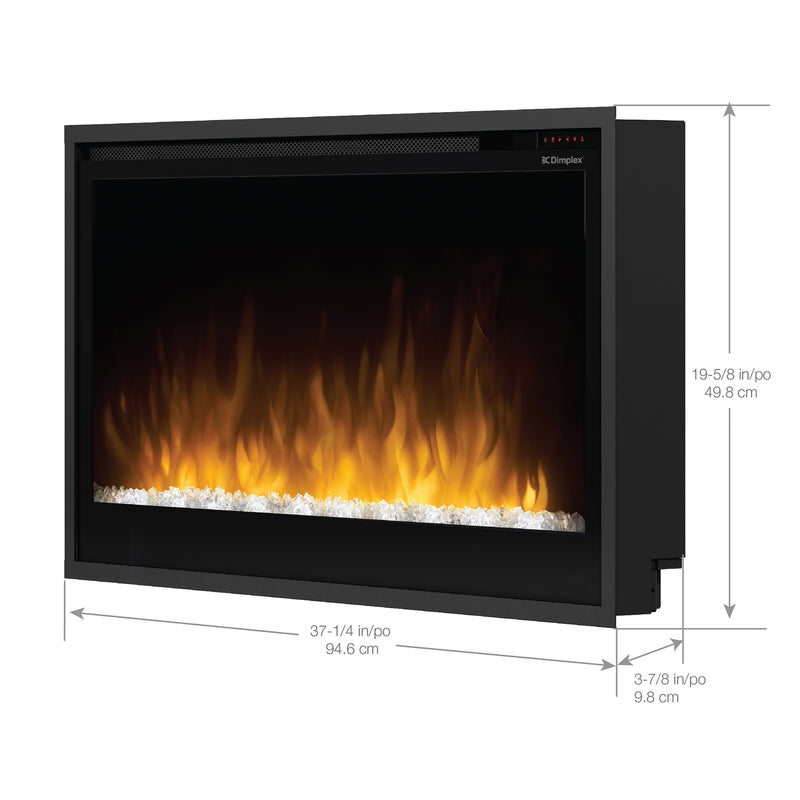

Model PLF3614-XS - 36"

Overall Dimensions: 37-1/4" W X 19-1/2" H X 3-3/4" D
Framing Dimensions: 36-1/2" W X 19-1/8" H X 4" D
Viewing Area: 33-1/4" W X 12-5/8" H
Width: 36"

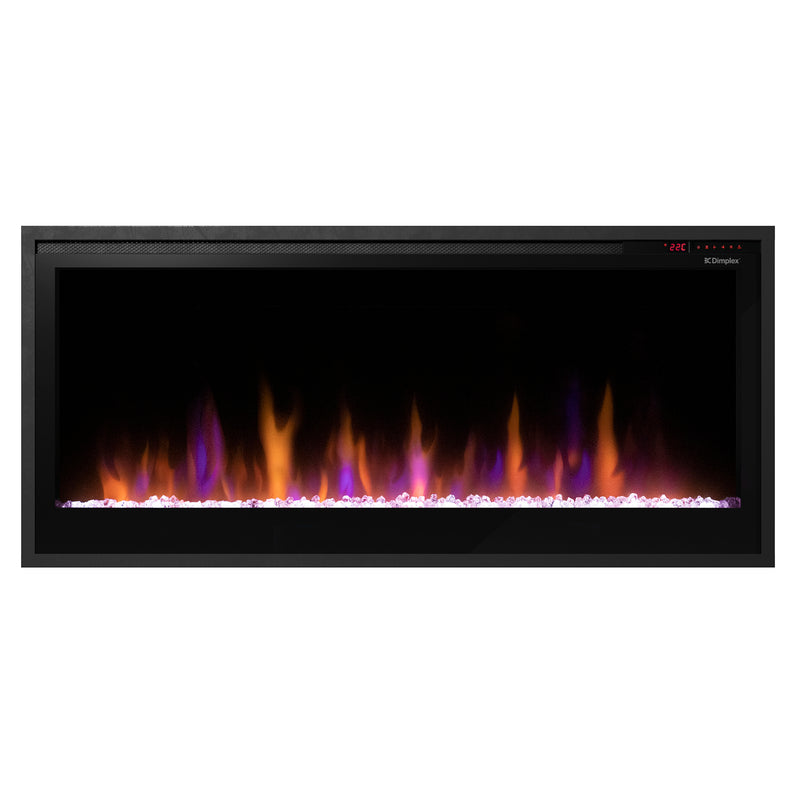

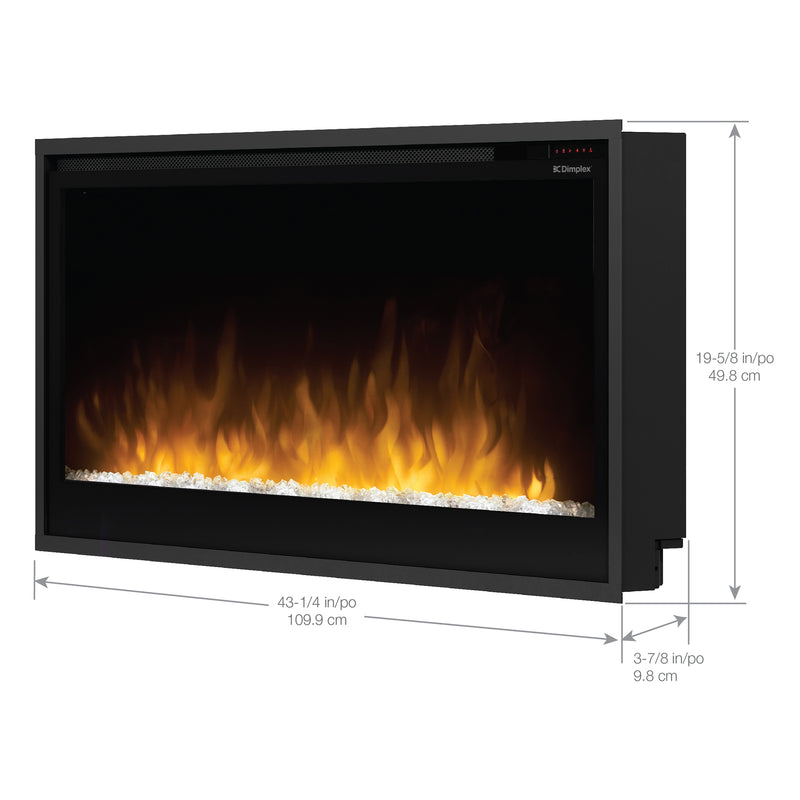

Model PLF4214-XS - 42"

Overall Dimensions: 43-1/4" W X 19-1/2" H X 3-3/4" D
Framing Dimensions: 42-1/2" W X 19-1/8" H X 4" D
Viewing Area: 39-1/4" W X 12-5/8" H
Width: 42"

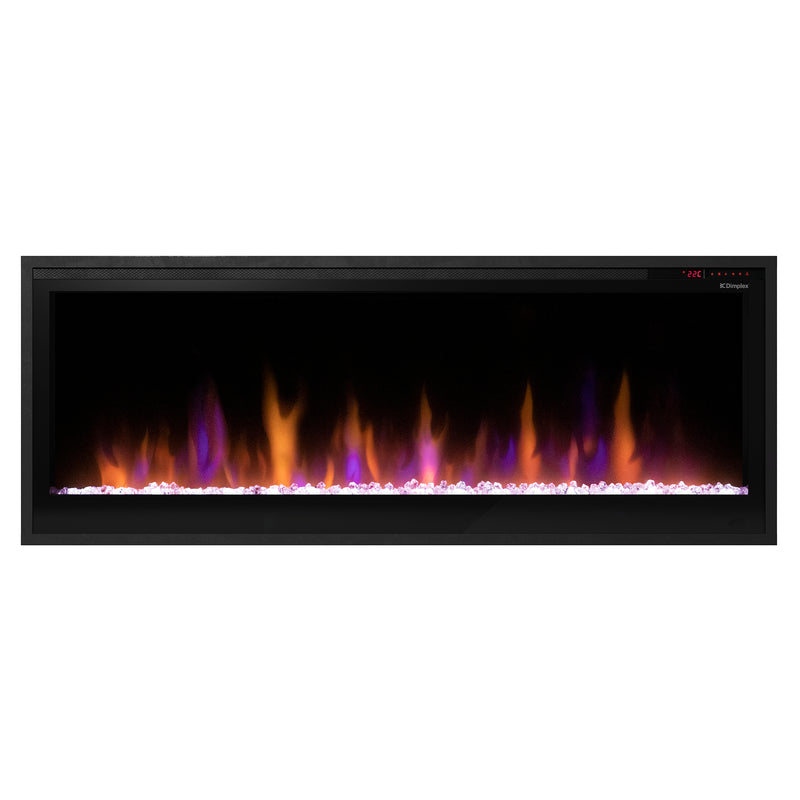

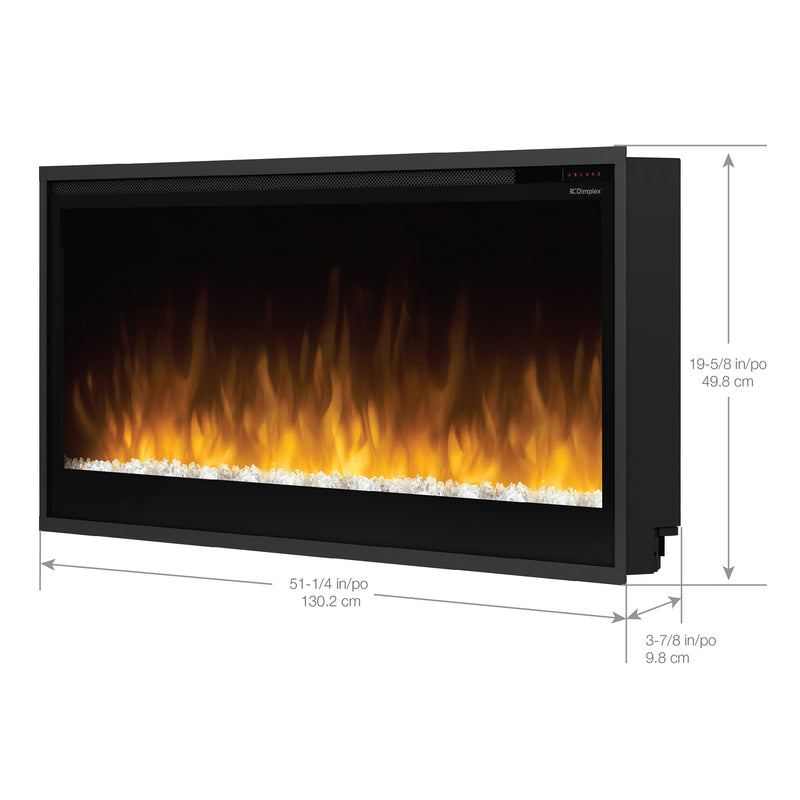

Model PLF5014-XS - 50"

Overall Dimensions: 51-1/4" W X 19-1/2" H X 3-3/4" D
Framing Dimensions: 50-1/2" W X 19-1/8" H X 4" D
Viewing Area: 47-1/4" W X 12-5/8" H
Width: 50"

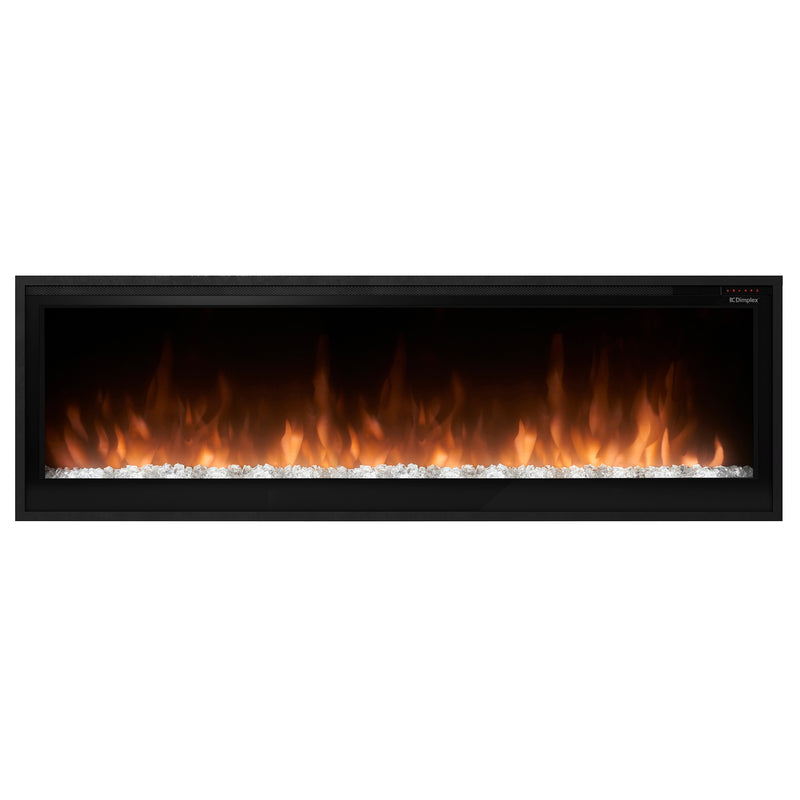

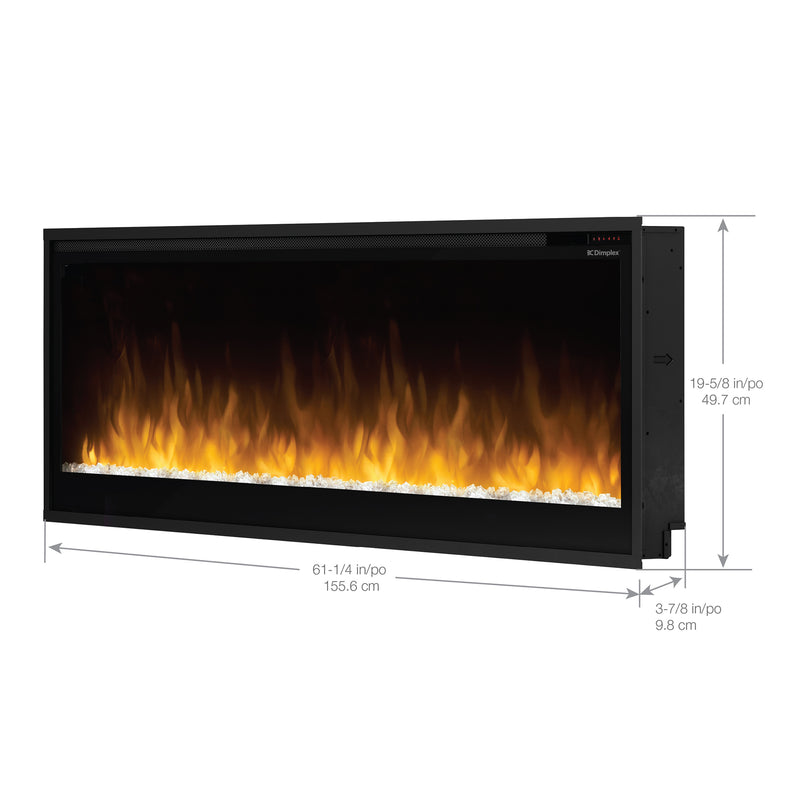

Model PLF6014-XS - 60"

Overall Dimensions: 61-1/4" W X 19-1/2" H X 3-3/4" D
Framing Dimensions: 60-1/2" W X 19-1/8" H X 4" D
Viewing Area: 57-1/4" W X 12-5/8" H
Width: 60"

Specifications

Model PLF3614-XS - 36"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted
Style: Linear
BTU Output: 5,118 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired
Voltage: 120V
Amps: 12.5 Amps
Watts: 1,500W
Flame Technology: LED Flame Technology
Flame Themes: 7
Flame Speed: 5 Settings
Flame Brightness: Adjustable
Brightness Modes: Solid Low, Solid High, Cycle Low, Cycle High
Media Bed Lighting Moods: White, Blue, Violet, Red, Green, Prism, Fast Prism, Midnight
Custom Media Bed Color: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Temperature Range: 45°F to 86°F
Thermostat Control: Yes
Timer: 30 Minutes to 8 Hours
Ambient Light Sensor: Yes
Control Methods: Flame Connect App, Multi-Function IR Remote, Hidden Touch Controls
Heating Type: Louver-Less Fan-Forced Circulation
Liner: Steel
Optional Plug Kit: X-PLFXSPLUG
Optional Plug Kit Cord Length: 72"
Wi-Fi Required for App Control: Yes
Pre-Installed Trim: Yes
Trimless Recessed Installation: Yes

Model PLF4214-XS - 42"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted
Style: Linear
BTU Output: 5,118 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired
Voltage: 120V
Amps: 12.5 Amps
Watts: 1,500W
Flame Technology: LED Flame Technology
Flame Themes: 7
Flame Speed: 5 Settings
Flame Brightness: Adjustable
Brightness Modes: Solid Low, Solid High, Cycle Low, Cycle High
Media Bed Lighting Moods: White, Blue, Violet, Red, Green, Prism, Fast Prism, Midnight
Custom Media Bed Color: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Temperature Range: 45°F to 86°F
Thermostat Control: Yes
Timer: 30 Minutes to 8 Hours
Ambient Light Sensor: Yes
Control Methods: Flame Connect App, Multi-Function IR Remote, Hidden Touch Controls
Heating Type: Louver-Less Fan-Forced Circulation
Liner: Steel
Optional Plug Kit: X-PLFXSPLUG
Optional Plug Kit Cord Length: 72"
Wi-Fi Required for App Control: Yes
Pre-Installed Trim: Yes
Trimless Recessed Installation: Yes

Model PLF5014-XS - 50"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted
Style: Linear
BTU Output: 5,118 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired
Voltage: 120V
Amps: 12.5 Amps
Watts: 1,500W
Flame Technology: LED Flame Technology
Flame Themes: 7
Flame Speed: 5 Settings
Flame Brightness: Adjustable
Brightness Modes: Solid Low, Solid High, Cycle Low, Cycle High
Media Bed Lighting Moods: White, Blue, Violet, Red, Green, Prism, Fast Prism, Midnight
Custom Media Bed Color: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Temperature Range: 45°F to 86°F
Thermostat Control: Yes
Timer: 30 Minutes to 8 Hours
Ambient Light Sensor: Yes
Control Methods: Flame Connect App, Multi-Function IR Remote, Hidden Touch Controls
Heating Type: Louver-Less Fan-Forced Circulation
Liner: Steel
Optional Plug Kit: X-PLFXSPLUG
Optional Plug Kit Cord Length: 72"
Wi-Fi Required for App Control: Yes
Pre-Installed Trim: Yes
Trimless Recessed Installation: Yes

Model PLF6014-XS - 60"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted
Style: Linear
BTU Output: 5,118 BTU
Heating Capacity: Heats up to 1,000 sq. Ft.
Electrical Requirements: 120V Hardwired
Voltage: 120V
Amps: 12.5 Amps
Watts: 1,500W
Flame Technology: LED Flame Technology
Flame Themes: 7
Flame Speed: 5 Settings
Flame Brightness: Adjustable
Brightness Modes: Solid Low, Solid High, Cycle Low, Cycle High
Media Bed Lighting Moods: White, Blue, Violet, Red, Green, Prism, Fast Prism, Midnight
Custom Media Bed Color: Yes
Heat-Free Operation: Yes
Heat-Only Operation: Yes
Temperature Range: 45°F to 86°F
Thermostat Control: Yes
Timer: 30 Minutes to 8 Hours
Ambient Light Sensor: Yes
Control Methods: Flame Connect App, Multi-Function IR Remote, Hidden Touch Controls
Heating Type: Louver-Less Fan-Forced Circulation
Liner: Steel
Optional Plug Kit: X-PLFXSPLUG
Optional Plug Kit Cord Length: 72"
Wi-Fi Required for App Control: Yes
Pre-Installed Trim: Yes
Trimless Recessed Installation: Yes

Technical Drawings

Specification Sheet PLF3614-XS - 36" Specification Sheet PLF4214-XS - 42" Specification Sheet PLF5014-XS - 50" Specification Sheet PLF6014-XS - 60"

Installation Manual

Installation Manual Dimplex Slim Linear Built In Electric Fireplace

Warranty Policy

Warranty Policy Dimplex Slim Linear Built In Electric Fireplace Warranty
