Empire Blackburn 54" Built-In Wood-Burning Firebox
Empire Blackburn 54" Built-In Wood-Burning Firebox
Empire Blackburn 54" Built-In Wood-Burning Firebox

Empire Blackburn 54" Built-In Wood-Burning Firebox

by Empire Comfort Systems
SKU WB54FB0F
$3,389.00 - $3,389.00
$3,389.00
$3,389.00 - $3,389.00
$3,389.00

Order With Confidence: We’ll call you before processing your order to confirm the fireplace and required components are compatible with your project.

We Call Before Processing
We Confirm Compatibility
Fireplace Experts Available
Empire Blackburn 54" Built-In Wood-Burning Firebox
Empire Blackburn 54" Built-In Wood-Burning Firebox
$3,389.00
Description

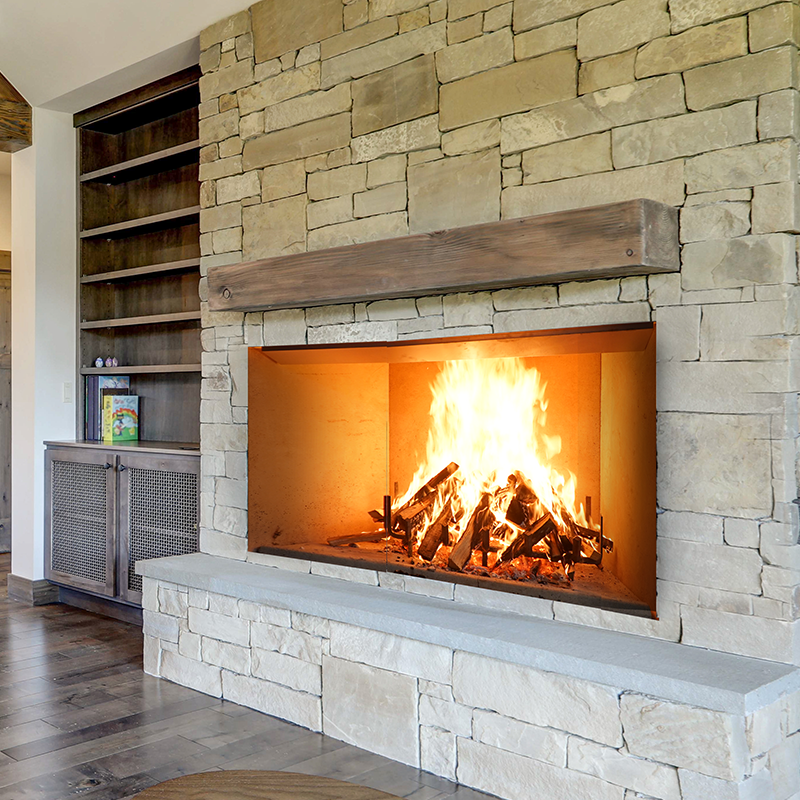

The Empire Blackburn 54" Built-In Wood-Burning Firebox is a factory-built indoor firebox designed around an expansive 54" W x 34" H opening for a wide, traditional open-hearth presentation. It installs within framed construction and connects to a dedicated 14" chimney system. Choose from brick, herringbone, or smooth refractory liners in black, mocha, concrete, or white to coordinate the firebox interior with the surrounding design.

The Blackburn 54 includes a firescreen, log grate, attic insulation shield, and installation hardware. The refractory liner, hearth extension, chimney components, termination cap, and non-combustible finishing materials are selected separately. This firebox is UL 127 listed and may also be used with compatible vented or vent-free decorative gas log systems when installed according to the manufacturer’s instructions and applicable codes.

Product Brochure

What’s Included
  • Two-panel firescreen assembly, log grate, attic insulation shield, framing brackets, refractory liner brackets, grate retainer brackets, and installation hardware.
Features
  • Built-In Factory-Built Firebox – Installs within framed construction using the specified clearances, hearth extension, and 14" chimney system.
  • Selectable Refractory Interiors – Choose brick, herringbone, or smooth liner patterns in black, mocha, concrete, or white.
  • 54" W x 34" H Firebox Opening – Provides an expansive traditional opening for a clear, unobstructed view of the fire.
  • Included Firescreen and Log Grate – Standard components help contain sparks and securely position firewood inside the firebox.
  • Optional Bi-Fold Glass Doors – Available doors add a finished appearance while allowing the firebox opening to be fully accessed.
  • Optional Outside Combustion Air – The WBOAK outside air kit can supply combustion air through an exterior connection.
  • Decorative Gas Compatibility – Compatible vented or vent-free decorative gas log systems may be installed according to the applicable instructions and codes.
  • Flexible Installation Layouts – May be installed along a wall, across a corner, in a cabinet enclosure, within a room-divider layout, or in an exterior chase.
  • UL 127 Listed – Tested and listed for installation and operation in the United States.
Dimensions
Overall Dimensions
66 7/8" W x 73 3/8" H x 31" D
Framing Dimensions
67 5/8" W x 74 1/8" H x 30 1/2" D
Viewing Area
54" W x 34" H
Width
54"
Specifications
Fuel Type
Wood
Vent Type
Chimney
Installation Type
Built In
Style
Traditional
Appliance Type
Factory-Built Wood-Burning Firebox
Model Number
WB54FB0F
Approved Fuel
Solid Wood and Approved Processed Solid-Fuel Firelogs
Firebox Opening
54" W x 34" H
Firebox Depth
25"
Chimney Diameter
14"
Liner Patterns
Brick, Herringbone, Smooth
Liner Colors
Black, Mocha, Concrete, White
Firescreen
Included
Log Grate
Included
Bi-Fold Glass Doors
Optional
Outside Air Kit
Optional WBOAK
Decorative Gas Appliance Compatibility
Approved Compatible Vented or Vent-Free Systems
Sleeping Room Installation
Approved
Manufactured Housing Installation
Not Approved
Floor Clearance
0"
Firebox-to-Back-Wall Clearance
1 1/2"
Firebox-to-Sidewall Clearance
1 1/2"
Opening-to-Sidewall Clearance
24"
Minimum Mantel Height
18" Above Firebox Opening
Maximum Mantel Depth
10"
Minimum Chimney Clearance
2"
Rear Firebox Width
35 7/16"
Firebox Floor Depth Behind Lip
21 3/4"
Firebox Floor Width Behind Lip
51 1/4"
Width of Firebox Opening at Floor
53 1/2"
Gas Line Knockouts
Both Sides for 1/2" Iron Pipe
Technical Drawings
Specification Sheet WB54FB0F
Installation Manual
Installation Manual Empire Blackburn 54" Built-In Wood-Burning Firebox
Warranty Policy
Warranty Policy Empire Blackburn 54" Built-In Wood-Burning Firebox Warranty
