Modern Flames Landscape Pro Multi Linear Electric Fireplace

Modern Flames Landscape Pro Multi Linear Electric Fireplace

Name: Modern Flames Landscape Pro Multi Linear Electric Fireplace
Brand: Modern Flames
SKU: LPM-4416
Price: 2779.0 USD
Availability: InStock

by Modern Flames

SKU LPM-4416

$2,779.00 - $6,399.00

$2,779.00

$2,779.00 - $6,399.00

$2,779.00

Quantity

Order With Confidence: We’ll call you before processing your order to confirm the fireplace and required components are compatible with your project.

We Call Before Processing

We Confirm Compatibility

Fireplace Experts Available

Modern Flames Landscape Pro Multi Linear Electric Fireplace

$2,779.00

Description

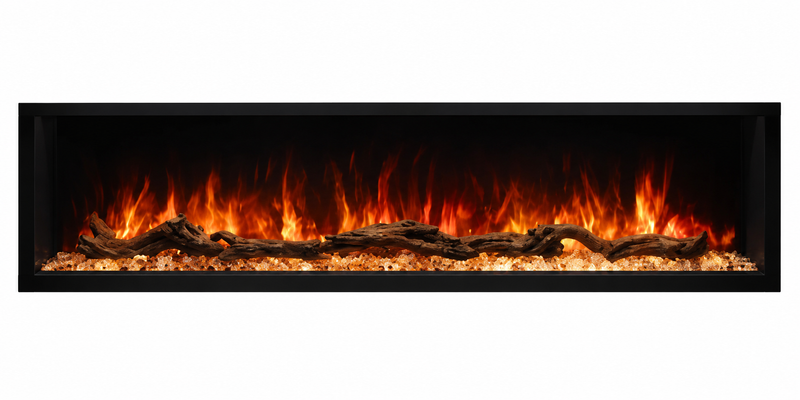

The Modern Flames Landscape Pro Multi Linear Electric Fireplace is a multi-configuration electric fireplace available in 44", 56", 68", 80", 96", and 120" sizes. The same firebox can be configured as a single-sided fireplace, left or right corner fireplace, or three-sided bay installation. It supports built-in clean-face and partial recessed installations, with wall-mounted applications available using separately sold wall-mount components. The series is approved for indoor use and qualifying covered-outdoor installations.

Independent RGB lighting allows the flame, ember bed, and downlighting to be adjusted across the full color spectrum, with four flame-speed settings and adjustable brightness. Standard media includes clear acrylic stones, black smoke acrylic crystals, and a hand-painted Canyon Driftwood log set. Operation is available through onboard controls, the included full-function remote, or the Modern Flames app, with Wi-Fi connectivity and Alexa and Google Home compatibility.

The integrated ceramic heater provides 5,000 BTU at 120V and can be configured for 240V operation to provide 10,000 BTU. Modern Flames rates heating coverage up to 400 sq. ft. at 120V and up to 800 sq. ft. at 240V. A dedicated 20A or higher circuit is required. Outdoor installations must follow the manufacturer's covered-installation requirements and remain protected from direct water contact and direct sunlight.

Product Brochure

What’s Included

Front glass
Two side glass panels
Two metal side panels
Canyon Driftwood log set
Clear acrylic stone media
Black smoke acrylic crystal media
Full-function remote control
CR2032 remote battery
Battery tool
One-piece trim kit
L-metal mounting brackets – quantity varies by model
Six mounting screws
Two suction cups
Installation manual

Features

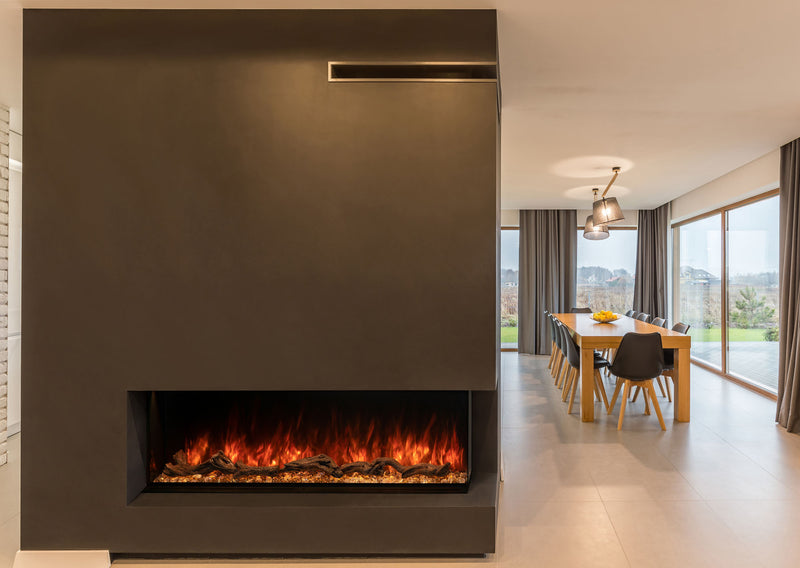

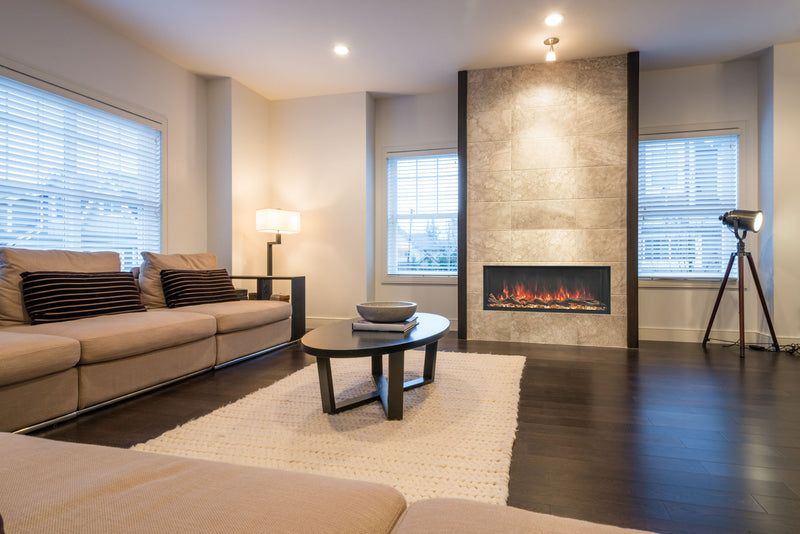

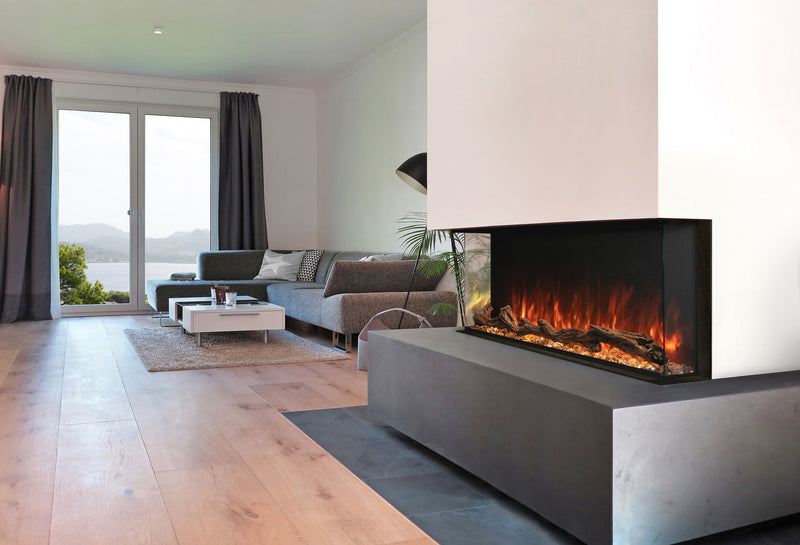

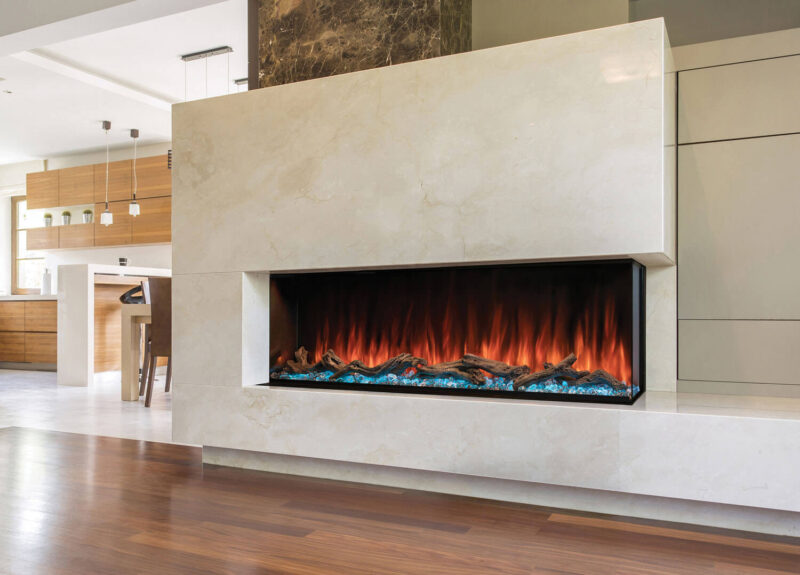

Multi-Configuration Design – Configure the same firebox as single-sided, left corner, right corner, or three-sided bay.
Multiple Installation Methods – Supports built-in clean-face and partial recessed installations, with wall-mounted applications available using optional mounting components.

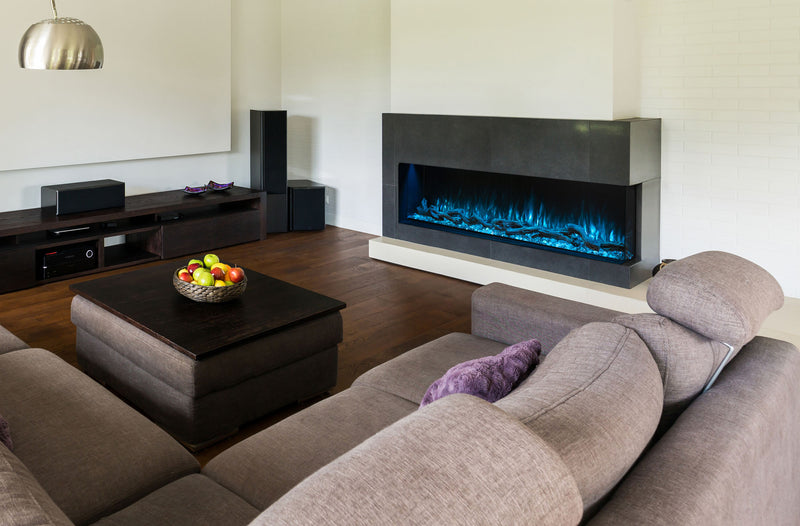

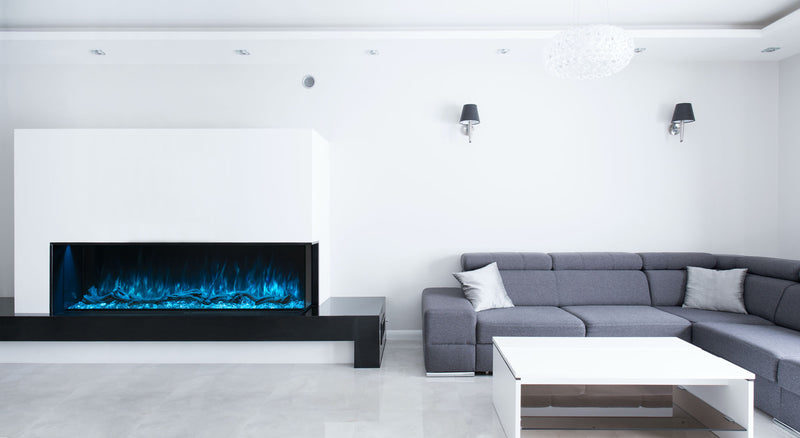

Independent RGB Lighting – Flame, ember bed, and downlighting can each be adjusted across the full RGB color spectrum.
Four Flame Speeds – Adjustable flame movement provides four speed settings.
Dual-Voltage Heating – Provides 5,000 BTU at 120V or 10,000 BTU when configured for 240V operation.
Supplemental Ceramic Heat – Manufacturer-rated for spaces up to 400 sq. ft. at 120V and up to 800 sq. ft. at 240V.
Three Control Methods – Operate the fireplace using onboard controls, the included full-function remote, or the Modern Flames app.
Wi-Fi and Smart Home Control – Wi-Fi connectivity supports app operation and compatibility with Alexa and Google Home.
Indoor and Covered-Outdoor Approved – Suitable for indoor installations and qualifying covered-outdoor applications when manufacturer requirements are followed.
Included Decorative Media – Includes clear acrylic stones, black smoke acrylic crystals, and a Canyon Driftwood log set.

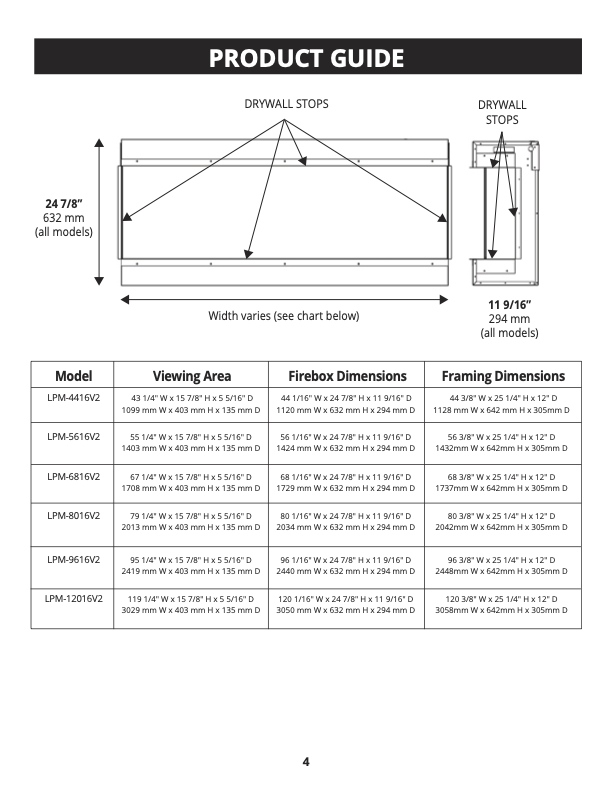

Dimensions

Model LPM-4416 - 44"

Overall Dimensions: 44 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 44 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 43 1/4 in. W × 15 7/8 in. H
Width: 44"

Model LPM-5616 - 56"

Overall Dimensions: 56 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 56 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 55 1/4 in. W × 15 7/8 in. H
Width: 56"

Model LPM-6816 - 68"

Overall Dimensions: 68 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 68 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 67 1/4 in. W × 15 7/8 in. H
Width: 68"

Model LPM-8016 - 80"

Overall Dimensions: 80 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 80 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 79 1/4 in. W × 15 7/8 in. H
Width: 80"

Model LPM-9616 - 96"

Overall Dimensions: 96 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 96 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 95 1/4 in. W × 15 7/8 in. H
Width: 96"

Model LPM-12016 - 120"

Overall Dimensions: 120 1/16 in. W × 24 7/8 in. H × 11 9/16 in. D
Framing Dimensions: 120 3/8 in. W × 25 1/4 in. H × 12 in. D
Viewing Area: 119 1/4 in. W × 15 7/8 in. H
Width: 120"

Specifications

Model LPM-4416 - 44"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Model LPM-5616 - 56"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Model LPM-6816 - 68"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Model LPM-8016 - 80"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Model LPM-9616 - 96"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Model LPM-12016 - 120"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Right-Corner, Left-Corner, Bay, Multi-Sided
Style: Linear
BTU Output: 5,000 BTU at 120V 10,000 BTU at 240V
Heating Capacity: Up to 400 sq. ft. at 120V, Up to 800 sq. ft. at 240V
Electrical Requirements: 120V AC standard or optional 240V hardwired configuration; dedicated 20A or higher circuit required; extension cords and relocatable power taps prohibited
Voltage: 120V AC, 240V AC
Amps: 13A at 120V
Watts: 1,465W at 120V , 2,930W at 240V
Viewing Configurations: Single-Sided, Left Corner, Right Corner, Three-Sided Bay
Built-In Installations: Clean Face, Partial 2x4 Recess
Flame Speed: 4 Settings
Lighting Zones: Flame, Ember Bed, Downlighting
Lighting Colors: Full RGB Spectrum
Heat Settings: Off, Low, High
Control Methods: Manual Controls, Full-Function Remote, Modern Flames App
Smart Home Compatibility: Alexa, Google Home
Wi-Fi Requirement: 2.4 GHz Network for Wi-Fi Pairing
Outdoor Installation: Covered outdoor installation protected from direct water contact and direct sunlight
Wall Mount Components: Sold Separately

Technical Drawings

Specification Sheet LPM-4416 - 44" Specification Sheet LPM-5616 - 56" Specification Sheet LPM-6816 - 68" Specification Sheet LPM-8016 - 80" Specification Sheet LPM-9616 - 96" Specification Sheet LPM-12016 - 120"

Installation Manual

Installation Manual Modern Flames Landscape Pro Multi Linear Electric Fireplace
