Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

Name: Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace
Brand: Modern Flames
SKU: OR52-MULTI-V2
Price: 4799.0 USD
Availability: InStock

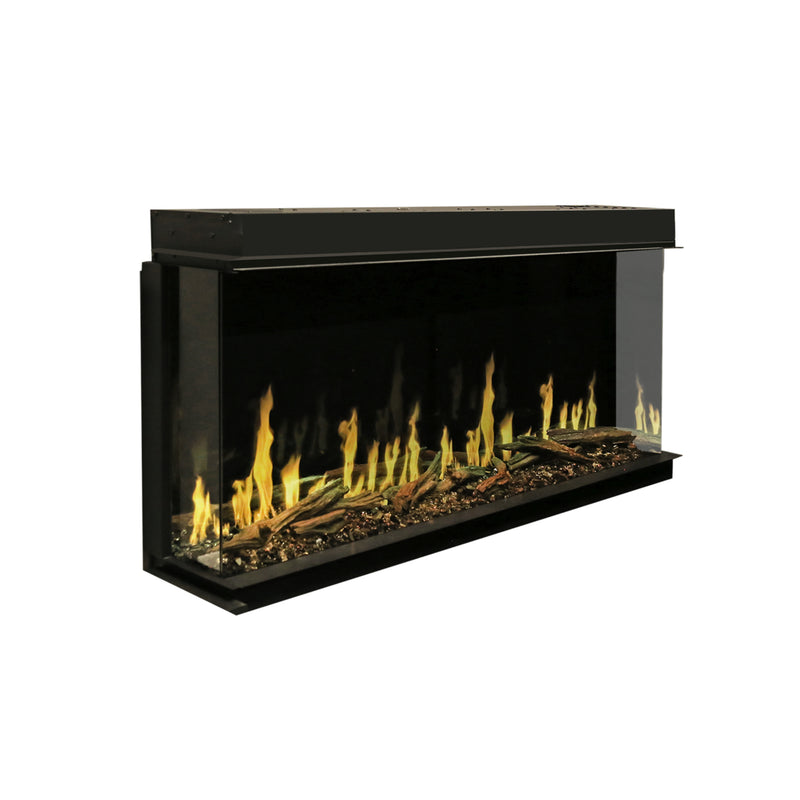

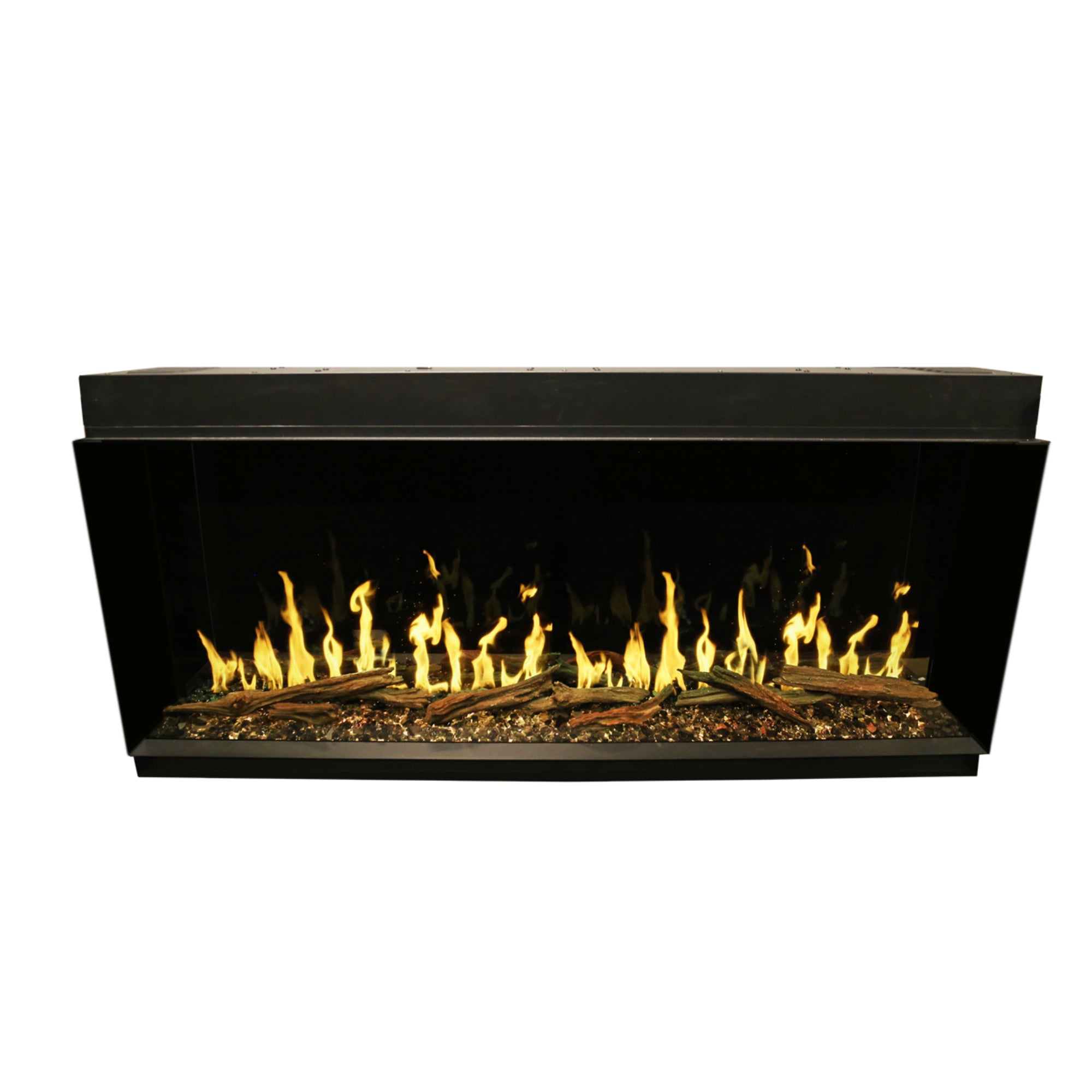

Modern Flames Orion V2 Multi electric fireplace, front view

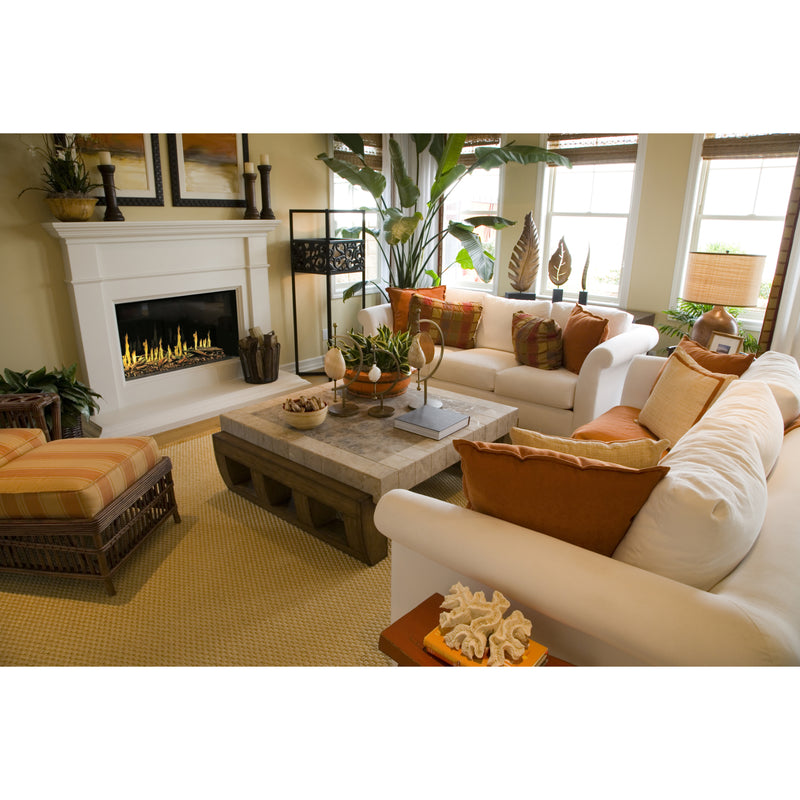

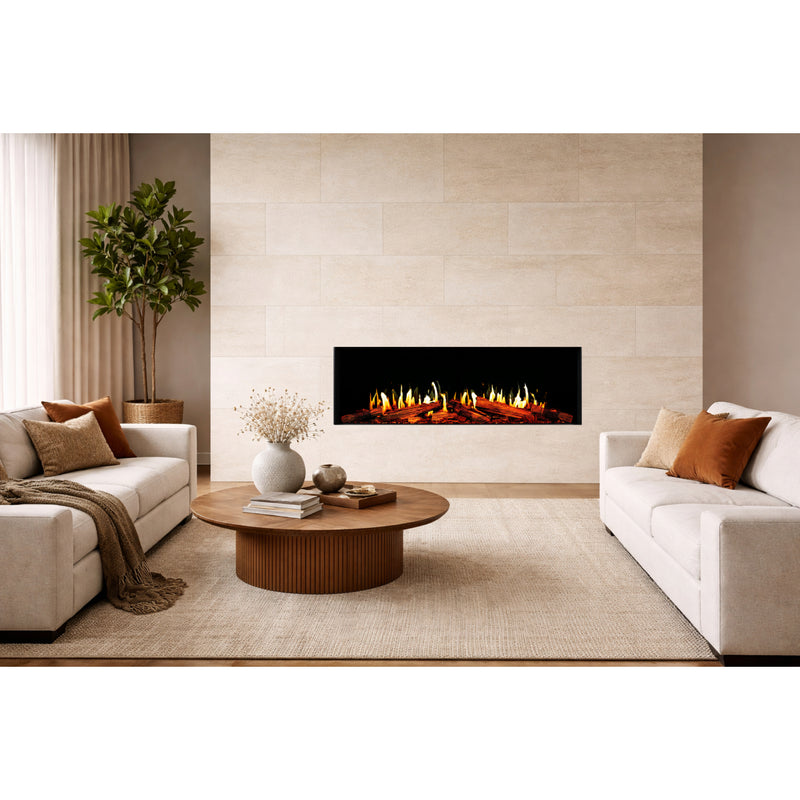

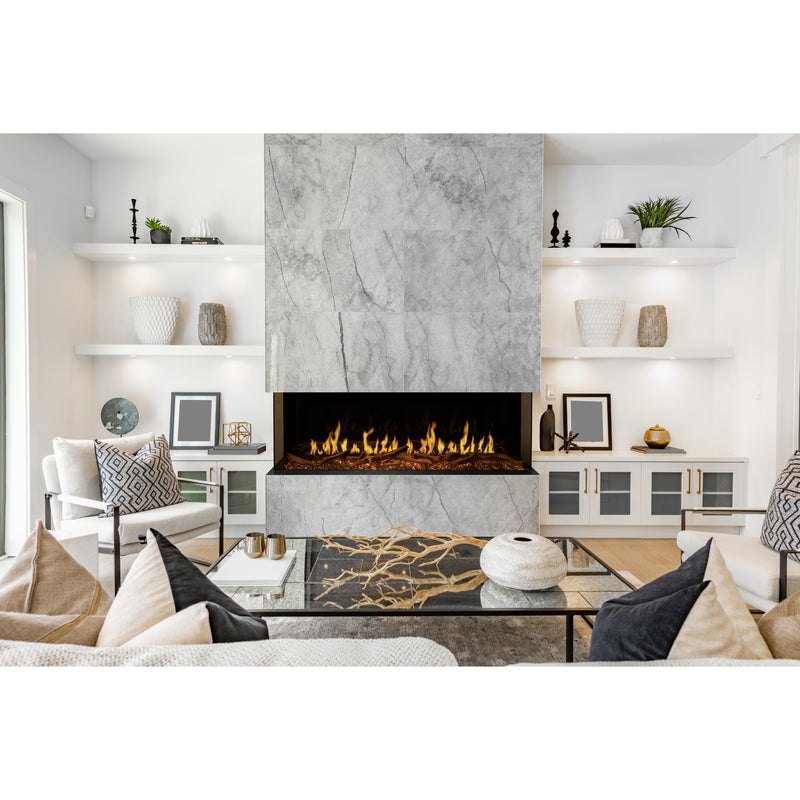

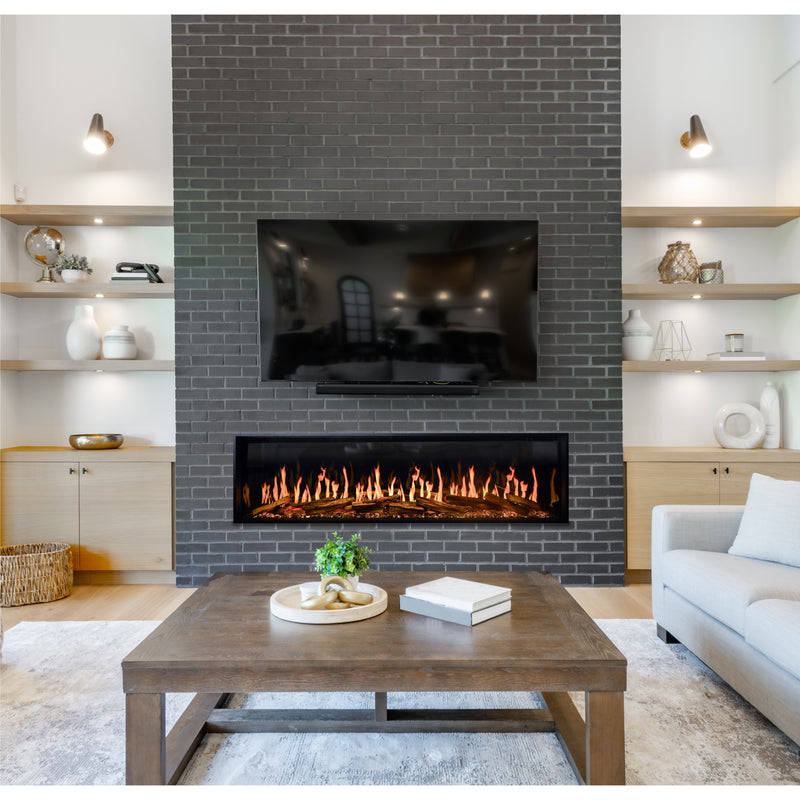

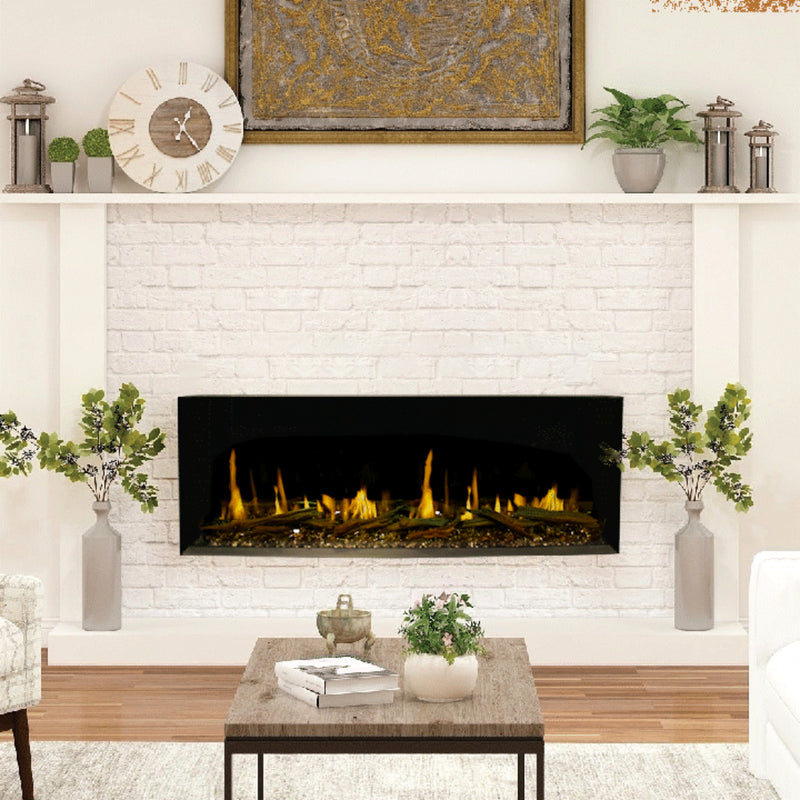

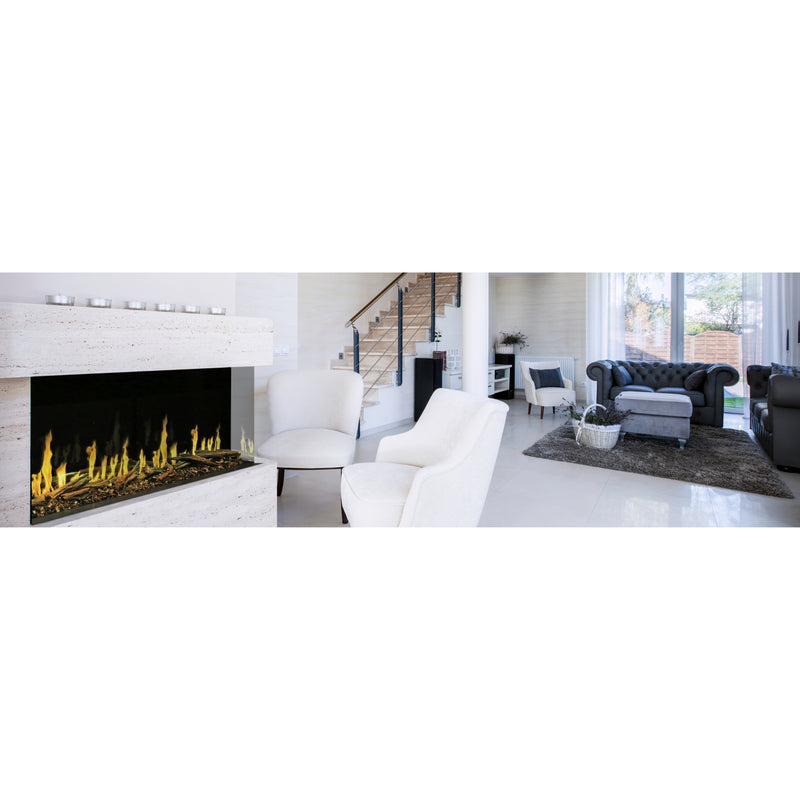

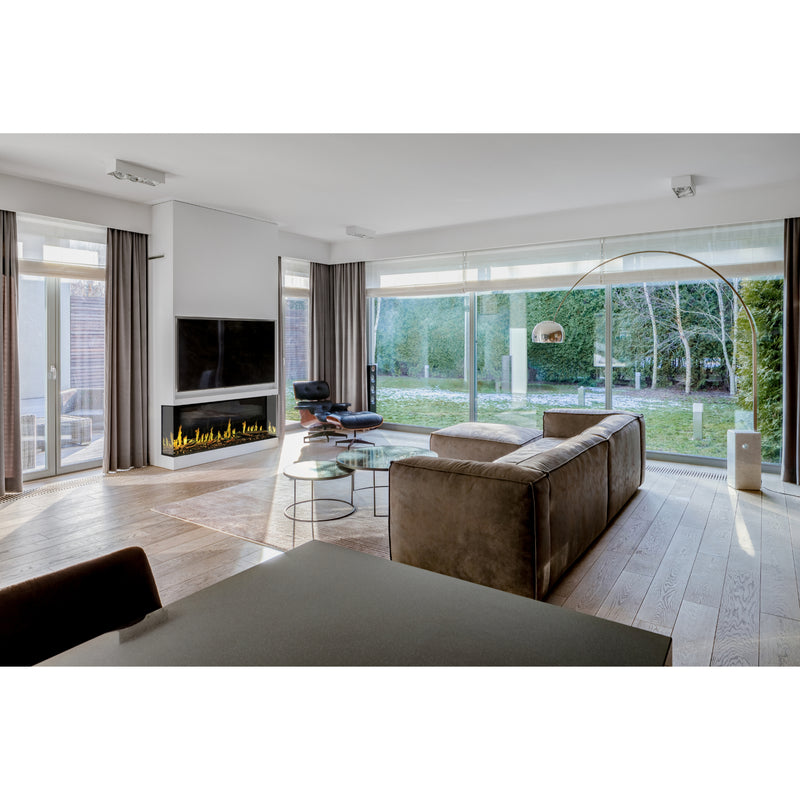

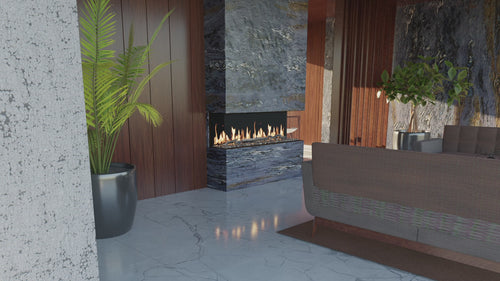

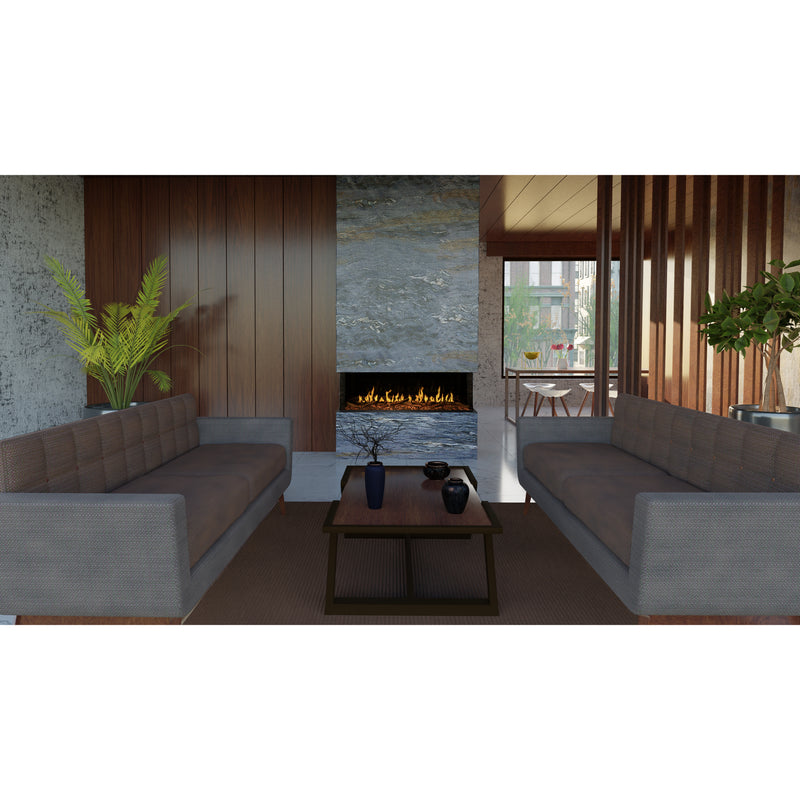

Modern Flames Orion V2 Multi electric fireplace installed in a covered outdoor patio

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

$4,799.00 - $12,999.00

$4,799.00

$4,799.00 - $12,999.00

$4,799.00

Combines flexible single-sided, corner, bay, partial-recessed, or wall-mounted installation with 24 virtual LCD flame options, lit real-wood logs, smart controls, premium audio, and up to 10,000 BTU of heat.

Available to order

Quantity

Talk to a Specialist Now

Speak with a product specialist before you order.

Description

The Modern Flames Orion V2 Multi Electric Fireplace is a built in or wall mounted virtual LCD electric fireplace available in 52", 60", 76", 100", and 120" models. Its deeper firebox accommodates a full-size lit real-wood log set, while the Multi design can be configured as single sided, left corner, right corner, or three sided/bay. It is approved for indoor use and qualifying covered outdoor built in installations.

Orion V2 includes 24 flame options, next-generation LCD visuals with adaptive brightness, an active ember bed, multi-color downlighting, built-in audio with Bluetooth streaming, and three ambient crackling sound modes. Control is available from the touch panel, premium remote, or Modern Flames + app, which also supports downloadable flame styles and visual experiences. Dual 120V / 240V operation provides 5,000–10,000 BTU of supplemental heat for up to 800 sq. ft.

Product Brochure

What’s Included

Remote control, lit log set, crushed glass and wood chips, wall mount bracket, drywall stops, long screws, short screws, drywall anchors and suction cups.

Features

Flexible Multi Installation – Configures as a single-sided built in fireplace, left or right corner, three sided/bay, partially recessed, or wall mounted.
24 Virtual LCD Flame Options – Includes 24 flame options out of the box with additional flame styles and visual experiences available through the Modern Flames + app.
Next-Generation LCD Display – Updated LCD technology provides sharper contrast, deeper blacks, richer colors, and improved viewing from different angles.

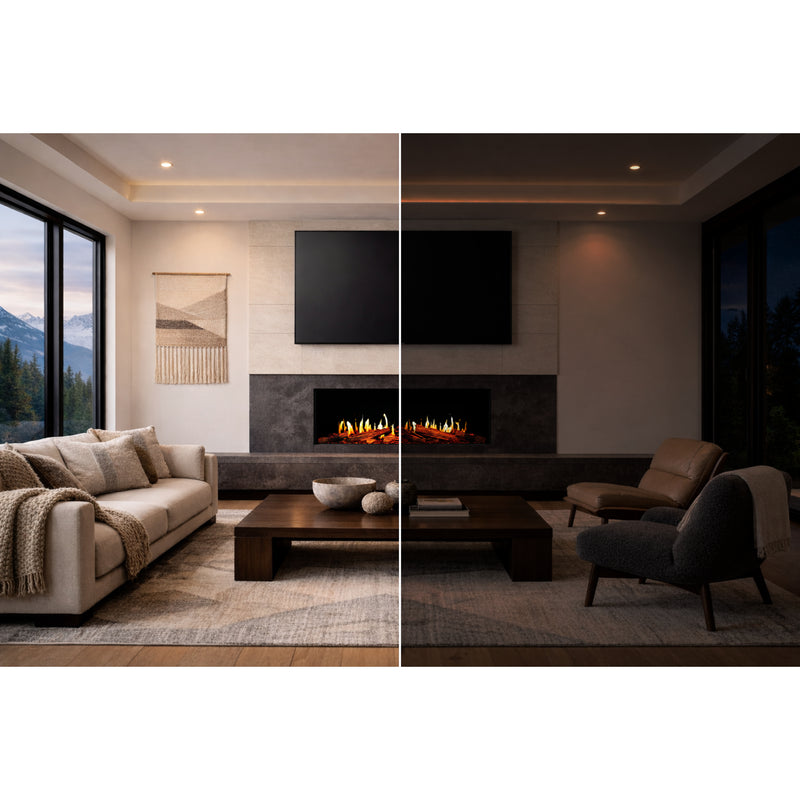

Adaptive Flame Brightness – Automatically adjusts flame brightness as ambient room lighting changes.

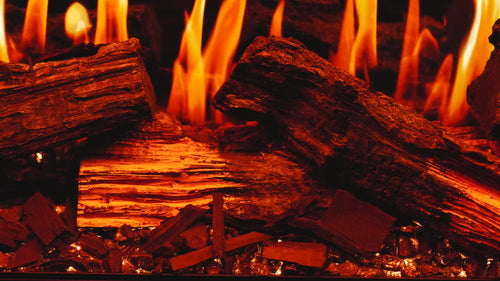

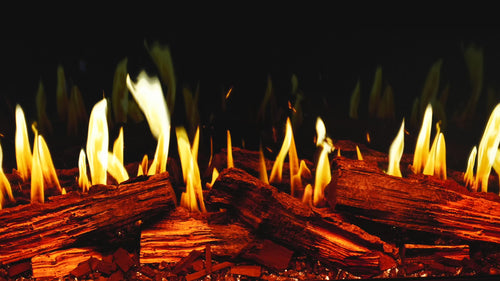

Real Split-Wood Lit Log Set – The Multi uses an illuminated log set crafted from real split wood for added depth around the virtual flame display.
Active Ember Bed and Downlighting – Adjustable ember-bed and downlight colors, brightness levels, and fade effects provide layered lighting beneath and above the log set.
Integrated Premium Audio – Built-in speakers provide fireplace sound effects and Bluetooth audio streaming from compatible devices.
Multiple Ambient Sound Modes – Includes Normal, Starry Night, and Stormy Night fireplace sound experiences.

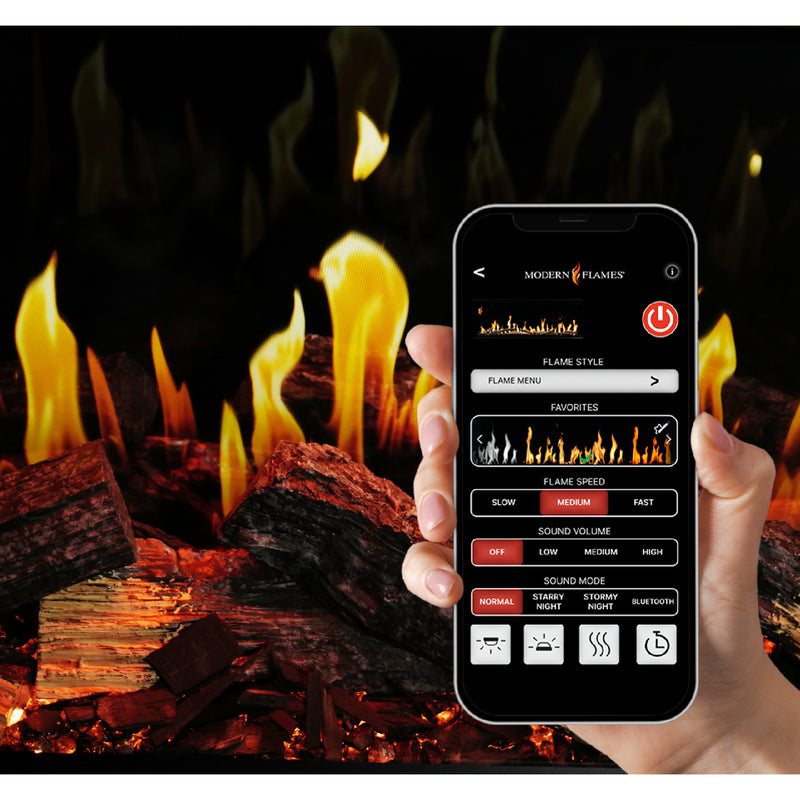

Remote, Touch and App Controls – Operates from the built-in touch panel, included remote control, or Modern Flames app.
5,000–10,000 BTU Heating – Dual-voltage PTC ceramic heating provides 5,000 BTU at 120V or up to 10,000 BTU when connected for 240V operation.
Indoor and Covered Outdoor Use – Approved for indoor use and qualifying covered outdoor built in installations when installed according to the manufacturer’s outdoor requirements.
5-Year Warranty – Orion V2 documentation states a 5-year warranty with dedicated support.

Dimensions

Model OR52-MULTI-V2 - 52"

Overall Dimensions: 51 1/2" W X 25 1/16" H X 9 7/16" D
Framing Dimensions: 50 15/16" W X 24 9/16" H X 8 15/16" D
Viewing Area: 50 1/8" W X 18 7/16" H
Width: 52"

Model OR60-MULTI-V2 - 60"

Overall Dimensions: 60" W X 25 1/16" H X 9 7/16" D
Framing Dimensions: 59 7/16" W X 24 9/16" H X 8 15/16" D
Viewing Area: 58 5/8" W X 18 7/16" H
Width: 60"

Model OR76-MULTI-V2 - 76"

Overall Dimensions: 75 3/4" W X 25 1/16" H X 9 7/16" D
Framing Dimensions: 75 3/16" W X 24 9/16" H X 8 15/16" D
Viewing Area: 74 7/16" W X 18 7/16" H
Width: 76"

Model OR100-MULTI-V2 - 100"

Overall Dimensions: 100" W X 25 1/16" H X 9 7/16" D
Framing Dimensions: 99 1/2" W X 24 9/16" H X 8 15/16" D
Viewing Area: 98 3/4" W X 18 7/16" H
Width: 100"

Model OR120-MULTI-V2 - 120"

Overall Dimensions: 124 3/8" W X 25 1/16" H X 9 7/16" D
Framing Dimensions: 123 13/16" W X 24 9/16" H X 8 15/16" D
Viewing Area: 123" W X 18 7/16" H
Width: 120"

Specifications

Model OR52-MULTI-V2 - 52"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,000–10,000 BTU
Heating Capacity: Heats up to 800 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired
Voltage: 120V / 240V
Watts: 1,465W / 2,930W
Flame Technology: Virtual LCD
Included Flame Options: 24
Flagship Multi-Dimensional Flame Styles: 3
Custom Flame Style: 1 customizable style
Flame Colors: 6 per flame style
Flame Speed: 3 levels
Downlight Colors: 10 colors and 1 fade mode
Downlight Brightness: 5 levels
Ember Bed Colors: 10 colors and 1 fade mode
Ember Bed Brightness: 5 levels
Adaptive Brightness: Yes
Log Lighting Modes: Static and Reactive
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Bluetooth Audio Streaming: Yes
Control Methods: Built-In Touch Control Panel, Remote Control, Modern Flames App
App Flame Downloads: Yes
App Storage: Up to 6 flame styles or visual experiences at one time
Heating Technology: PTC Ceramic
Heat-Free Flame Operation: Yes
Primary Heat Source: No, supplemental heat only
Frequency: 60Hz
Circuit Requirement: Dedicated 20 Amp circuit
10,000 BTU Circuit Requirement: Dedicated 20 Amp or higher 2-pole breaker
Minimum Top Clearance to Mantel: 11.8"
Minimum Top Clearance to TV: 11.8"
Minimum Top Clearance to Ceiling: 11.8"
Outdoor Installation Requirement: Built In only under a patio cover and away from direct water contact or direct sunlight
Warranty: 5-Year Warranty

Model OR60-MULTI-V2 - 60"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,000–10,000 BTU
Heating Capacity: Heats up to 800 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired
Voltage: 120V / 240V
Watts: 1,465W / 2,930W
Flame Technology: Virtual LCD
Included Flame Options: 24
Flagship Multi-Dimensional Flame Styles: 3
Custom Flame Style: 1 customizable style
Flame Colors: 6 per flame style
Flame Speed: 3 levels
Downlight Colors: 10 colors and 1 fade mode
Downlight Brightness: 5 levels
Ember Bed Colors: 10 colors and 1 fade mode
Ember Bed Brightness: 5 levels
Adaptive Brightness: Yes
Log Lighting Modes: Static and Reactive
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Bluetooth Audio Streaming: Yes
Control Methods: Built-In Touch Control Panel, Remote Control, Modern Flames App
App Flame Downloads: Yes
App Storage: Up to 6 flame styles or visual experiences at one time
Heating Technology: PTC Ceramic
Heat-Free Flame Operation: Yes
Primary Heat Source: No, supplemental heat only
Frequency: 60Hz
Circuit Requirement: Dedicated 20 Amp circuit
10,000 BTU Circuit Requirement: Dedicated 20 Amp or higher 2-pole breaker
Minimum Top Clearance to Mantel: 11.8"
Minimum Top Clearance to TV: 11.8"
Minimum Top Clearance to Ceiling: 11.8"
Outdoor Installation Requirement: Built In only under a patio cover and away from direct water contact or direct sunlight
Warranty: 5-Year Warranty

Model OR76-MULTI-V2 - 76"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,000–10,000 BTU
Heating Capacity: Heats up to 800 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired
Voltage: 120V / 240V
Watts: 1,465W / 2,930W
Flame Technology: Virtual LCD
Included Flame Options: 24
Flagship Multi-Dimensional Flame Styles: 3
Custom Flame Style: 1 customizable style
Flame Colors: 6 per flame style
Flame Speed: 3 levels
Downlight Colors: 10 colors and 1 fade mode
Downlight Brightness: 5 levels
Ember Bed Colors: 10 colors and 1 fade mode
Ember Bed Brightness: 5 levels
Adaptive Brightness: Yes
Log Lighting Modes: Static and Reactive
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Bluetooth Audio Streaming: Yes
Control Methods: Built-In Touch Control Panel, Remote Control, Modern Flames App
App Flame Downloads: Yes
App Storage: Up to 6 flame styles or visual experiences at one time
Heating Technology: PTC Ceramic
Heat-Free Flame Operation: Yes
Primary Heat Source: No, supplemental heat only
Frequency: 60Hz
Circuit Requirement: Dedicated 20 Amp circuit
10,000 BTU Circuit Requirement: Dedicated 20 Amp or higher 2-pole breaker
Minimum Top Clearance to Mantel: 11.8"
Minimum Top Clearance to TV: 11.8"
Minimum Top Clearance to Ceiling: 11.8"
Outdoor Installation Requirement: Built In only under a patio cover and away from direct water contact or direct sunlight
Warranty: 5-Year Warranty

Model OR100-MULTI-V2 - 100"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,000–10,000 BTU
Heating Capacity: Heats up to 800 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired
Voltage: 120V / 240V
Watts: 1,465W / 2,930W
Flame Technology: Virtual LCD
Included Flame Options: 24
Flagship Multi-Dimensional Flame Styles: 3
Custom Flame Style: 1 customizable style
Flame Colors: 6 per flame style
Flame Speed: 3 levels
Downlight Colors: 10 colors and 1 fade mode
Downlight Brightness: 5 levels
Ember Bed Colors: 10 colors and 1 fade mode
Ember Bed Brightness: 5 levels
Adaptive Brightness: Yes
Log Lighting Modes: Static and Reactive
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Bluetooth Audio Streaming: Yes
Control Methods: Built-In Touch Control Panel, Remote Control, Modern Flames App
App Flame Downloads: Yes
App Storage: Up to 6 flame styles or visual experiences at one time
Heating Technology: PTC Ceramic
Heat-Free Flame Operation: Yes
Primary Heat Source: No, supplemental heat only
Frequency: 60Hz
Circuit Requirement: Dedicated 20 Amp circuit
10,000 BTU Circuit Requirement: Dedicated 20 Amp or higher 2-pole breaker
Minimum Top Clearance to Mantel: 11.8"
Minimum Top Clearance to TV: 11.8"
Minimum Top Clearance to Ceiling: 11.8"
Outdoor Installation Requirement: Built In only under a patio cover and away from direct water contact or direct sunlight
Warranty: 5-Year Warranty

Model OR120-MULTI-V2 - 120"

Fuel Type: Electric
Installation Type: Built In, Wall Mounted, Left-Corner, Right-Corner, Bay
Style: Linear
BTU Output: 5,000–10,000 BTU
Heating Capacity: Heats up to 800 sq. Ft.
Electrical Requirements: 120V Hardwired, 240V Hardwired
Voltage: 120V / 240V
Watts: 1,465W / 2,930W
Flame Technology: Virtual LCD
Included Flame Options: 24
Flagship Multi-Dimensional Flame Styles: 3
Custom Flame Style: 1 customizable style
Flame Colors: 6 per flame style
Flame Speed: 3 levels
Downlight Colors: 10 colors and 1 fade mode
Downlight Brightness: 5 levels
Ember Bed Colors: 10 colors and 1 fade mode
Ember Bed Brightness: 5 levels
Adaptive Brightness: Yes
Log Lighting Modes: Static and Reactive
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Bluetooth Audio Streaming: Yes
Control Methods: Built-In Touch Control Panel, Remote Control, Modern Flames App
App Flame Downloads: Yes
App Storage: Up to 6 flame styles or visual experiences at one time
Heating Technology: PTC Ceramic
Heat-Free Flame Operation: Yes
Primary Heat Source: No, supplemental heat only
Frequency: 60Hz
Circuit Requirement: Dedicated 20 Amp circuit
10,000 BTU Circuit Requirement: Dedicated 20 Amp or higher 2-pole breaker
Minimum Top Clearance to Mantel: 11.8"
Minimum Top Clearance to TV: 11.8"
Minimum Top Clearance to Ceiling: 11.8"
Outdoor Installation Requirement: Built In only under a patio cover and away from direct water contact or direct sunlight
Warranty: 5-Year Warranty

Technical Drawings

Specification Sheet OR52-MULTI-V2 - 52" Specification Sheet OR60-MULTI-V2 - 60" Specification Sheet OR76-MULTI-V2 - 76" Specification Sheet OR100-MULTI-V2 - 100" Specification Sheet OR120-MULTI-V2 - 120"

Installation Manual

Installation Manual Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

"Extreme professionalism and knowledgeable staff. We enjoyed working with them and have done many orders !!"

Home Expo Center Residential installation Verified

"They took the time to walk me through the right fireplace options, making sure everything fit my needs, requirements, and local building codes."

Peter D. Commercial installation Verified

"The process was simple from start to finish."

Peter D. Commercial installation Verified

"Highly recommend"

Home Expo Center Residential installation Verified

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

Combines flexible single-sided, corner, bay, partial-recessed, or wall-mounted installation with 24 virtual LCD flame options, lit real-wood logs, smart controls, premium audio, and up to 10,000 BTU of heat.

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

Assigned concierge

Expert support

Order confidence

Nationwide delivery

Trade support

Spec-first guidance

Freight coordination

Assigned concierge

Expert support

Order confidence

Nationwide delivery

Trade support

Spec-first guidance

Freight coordination

Should You Choose Electric, Gas or Wood?

Electric — Easy installation with no venting required
Gas — Realistic flames with stronger heat output
Wood — Traditional fire experience and natural warmth

Do You Need a Built In, Insert or Wall Mounted Fireplace?

Built in — Will have to carve out new framing to create a seamless install
Insert — Fits into an existing fireplace and then has surround to cover gaps
Wall mounted — mount on wall with provided wall mounting

What Size Fireplace Will Fit Your Space?

Measure the available wall, opening or framed space
Compare overall, viewing and framing dimensions
Leave the required clearances around the fireplace

How Much Heat Does Your Room Need?

Compare BTU output or advertised heating coverage
Decide whether you want ambiance or supplemental heat
Larger rooms may require a higher-output fireplace

What Flame Style Best Matches Your Room?

Traditional logs provide a classic fireplace appearance
Glass media creates a cleaner, more contemporary look
Adjustable flame colors and lighting add customization

Are You Mounting a TV Above the Fireplace?

Check the required mantel and television clearances
Look for heat-management or cool-touch options
Confirm finishing-material requirements before framing

What Venting, Power or Utilities Are Required?

Confirm the vent type, gas connection or electrical service
Check voltage, amperage and dedicated-circuit requirements
Review the installation manual before framing begins

Do You Have Every Required Component?

Add all required options in the options list
Our team can review your configuration before processing
Checkout with full confidence thru our secured system

Shop now

ORDER WITH CONFIDENCE

Not sure everything will work together?

We’ll review your order before processing to confirm compatibility, fit, and required components—so you can order with confidence and avoid costly installation surprises.

Speak to one of our fireplace specialist now

Choose your fireplace

Browse the collection and select the style, size, and fuel type that fits your project.

Confirm your options

Reach out to our team to review your order and confirm that the selected components work together.

Place your order

We have secure checkout, so you can place your order with confidence.

Receive your order

Your fireplace ships securely with tracking and freight-delivery coordination.

Shop now

Need clarity before ordering?

Frequently asked questions

What kind of fireplace is this?

Modern Flames

Linear

Built In
Wall Mounted

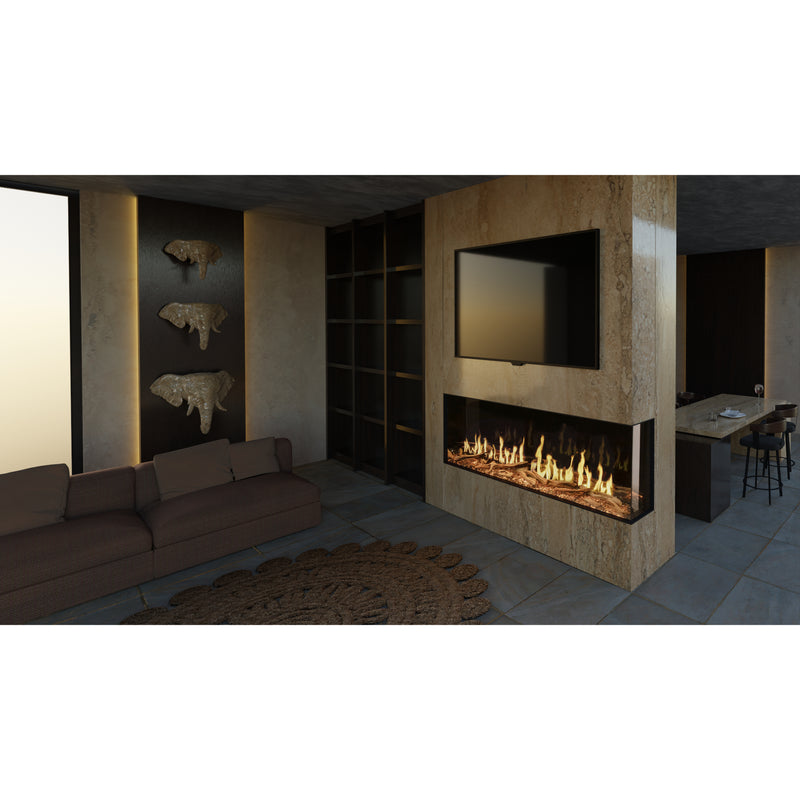

Left-Corner
Right-Corner
Bay

Electric

What is included with the product?

Remote control, lit log set, crushed glass and wood chips, wall mount bracket, drywall stops, long screws, short screws, drywall anchors and suction cups.

How will my order be delivered?

Most large products are delivered by freight with curbside service. Tracking and delivery information will be provided once the order ships. Inspect the shipment upon arrival and report visible or concealed damage within 48 hours.

What is your return policy?

Most unused and uninstalled products may be returned within 30 days with prior authorization. Approved buyer's-remorse returns are subject to a 25% restocking fee, and the customer is responsible for return shipping costs. Products must remain unused, uninstalled, unassembled and in their original packaging. See our full Return & Refund Policy for complete terms.

How do I know if this product is right for my project?

Send us your measurements, project plans, photos, or current model information. Our team can review the product specifications and help confirm whether it is appropriate for your space before you place the order.

Click here to read our full FAQ

Let's get it right the first time

We pride ourselves on making fireplaces sourcing and ordering process as easy as possible.

If we get it wrong, we will make it right. Let's take the next step to a warmer home together.

Call Today for Exclusive Phone-Order Offers

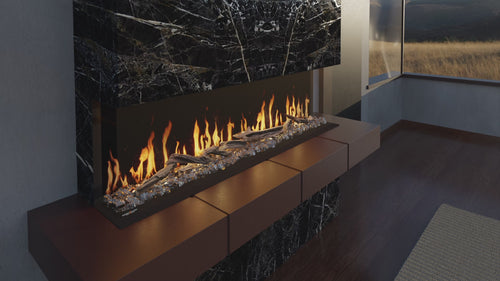

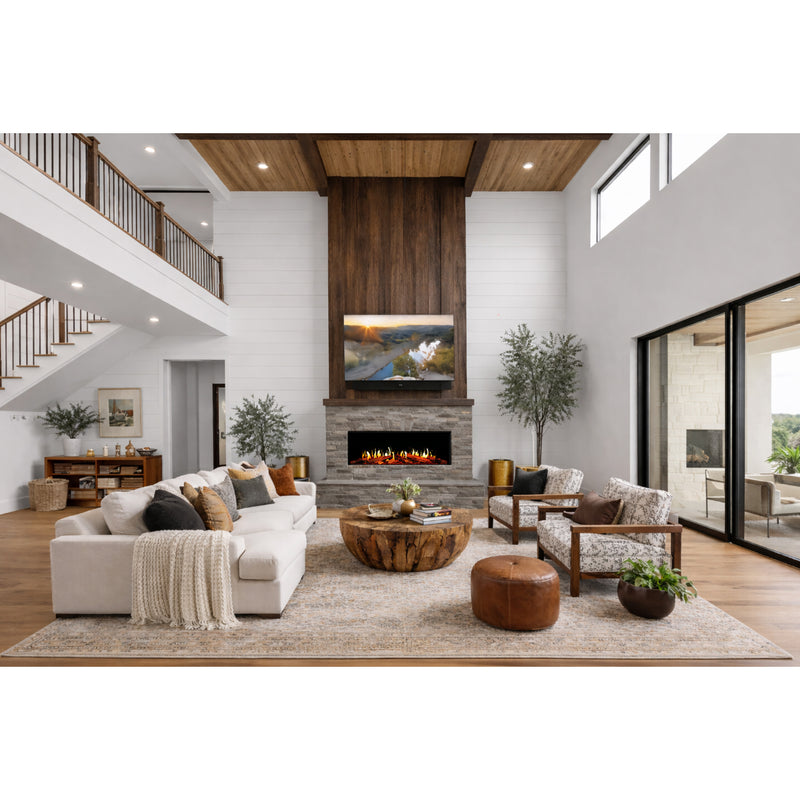

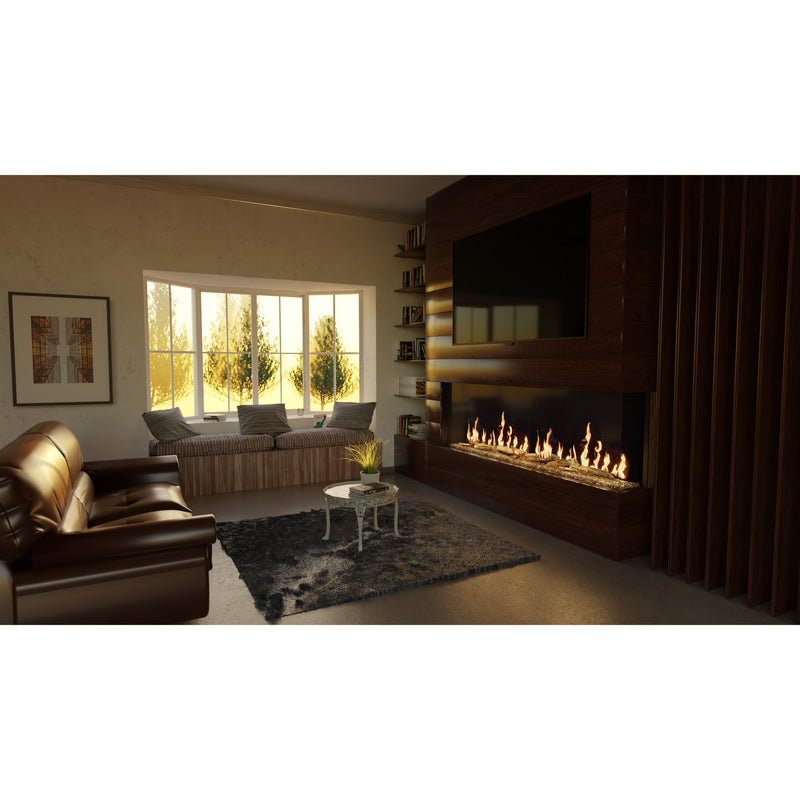

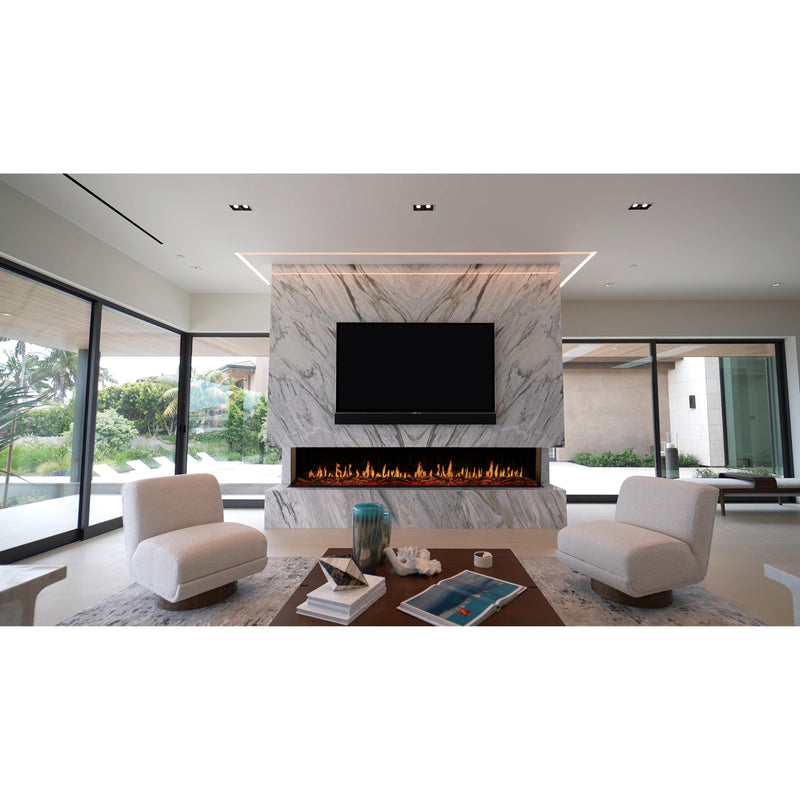

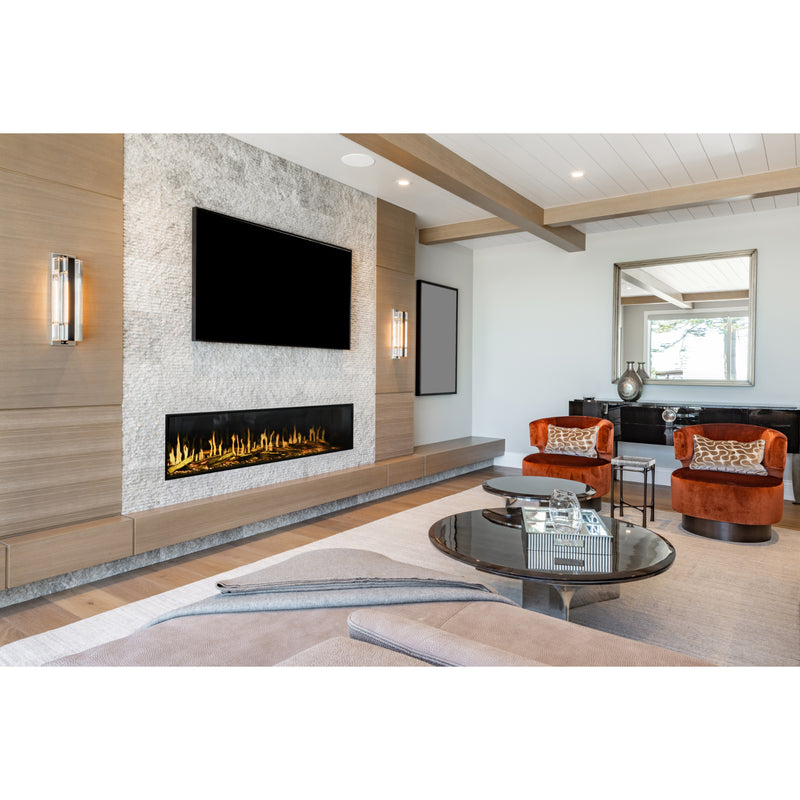

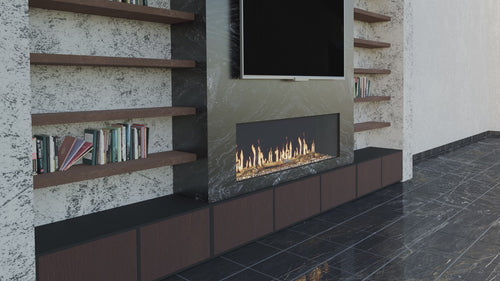

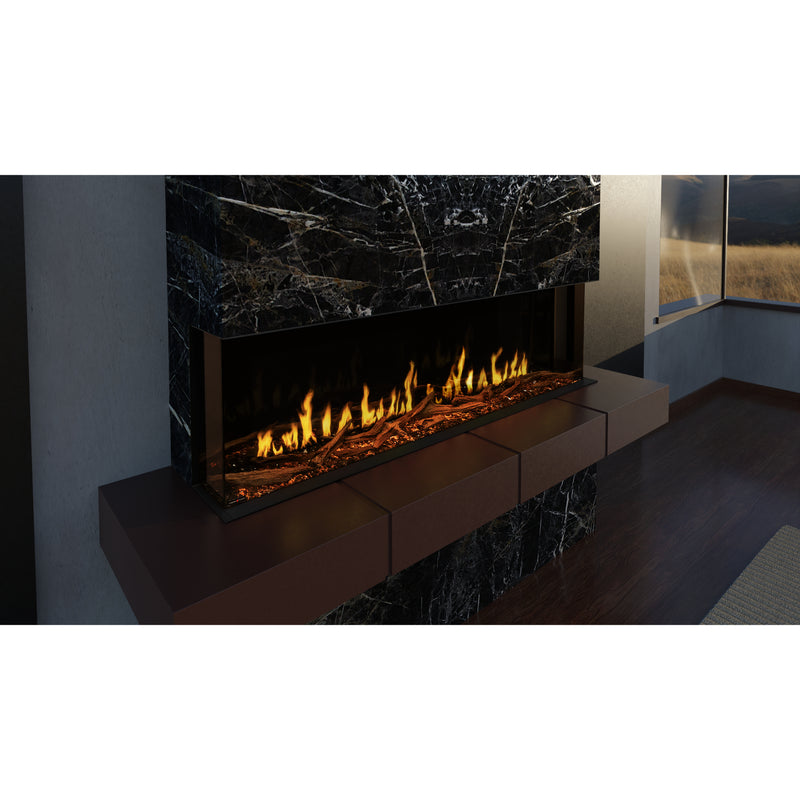

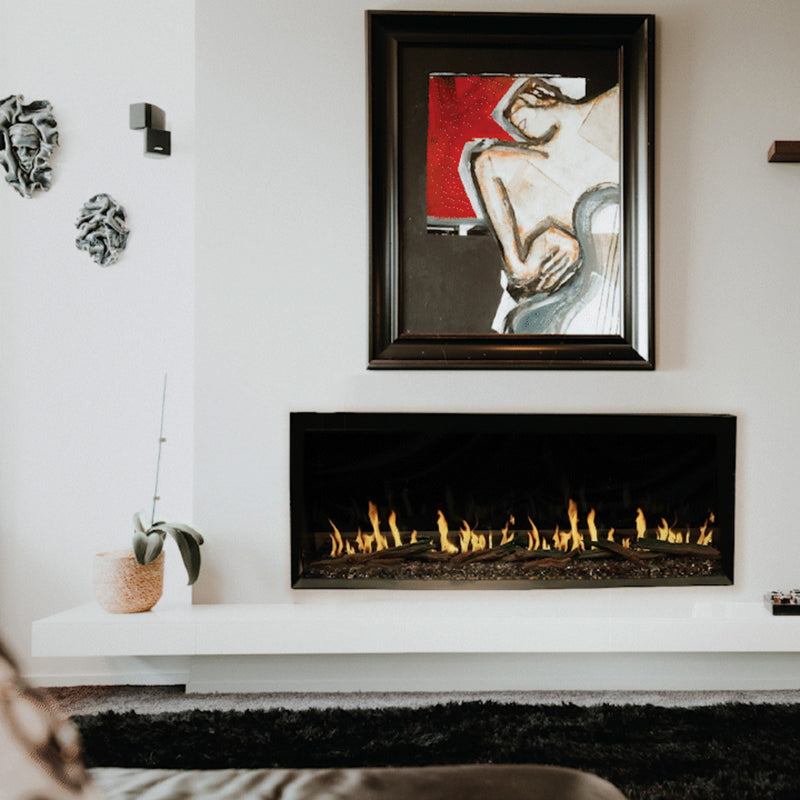

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

$4,799.00

Price: $4,799.00

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

Modern Flames Orion V2 Multi Built In or Wall Mounted Electric Fireplace

What People Say About Us!

Combines flexible single-sided, corner, bay, partial-recessed, or wall-mounted installation with 24 virtual LCD flame options, lit real-wood logs, smart controls, premium audio, and up to 10,000 BTU of heat.
