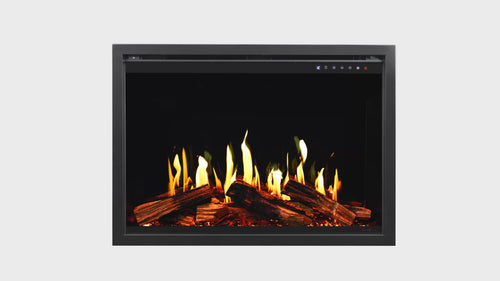

Modern Flames Orion V2 Traditional Built In Electric Fireplace

Name: Modern Flames Orion V2 Traditional Built In Electric Fireplace
Brand: Modern Flames
Price: 2499.0 USD
Availability: InStock

Modern Flames Orion V2 Traditional Built In Electric Fireplace

$2,499.00 - $6,899.00

$2,499.00

$2,499.00 - $6,899.00

$2,499.00

Combines highly realistic virtual LCD flames and a lit wood log set with the flexibility to install as a clean-face built in fireplace or retrofit into an existing fireplace opening.

Available to order

Quantity

Talk to a Specialist Now

Speak with a product specialist before you order.

Description

The Modern Flames Orion V2 Traditional Built In Electric Fireplace combines a traditional fireplace profile with next-generation virtual LCD flame technology. Available in 26", 30", 36", 42" and 54" models, it can be installed as a built-in clean face fireplace, as a self-trimming installation, or retrofitted into an existing fireplace opening. The 26" and 30" models operate on 120V, while the 36", 42" and 54" models support both 120V and 240V power.

Orion V2 features 24 flame options, multidimensional LCD flames, a realistic lit split-wood log set, active ember bed, adaptive brightness and customizable lighting. Built-in speakers provide fireplace sound effects and Bluetooth audio streaming, while the included remote and Modern Flames + app provide control over the fireplace's flame, lighting, heat and audio functions. Supplemental heating reaches up to 400 sq. ft. on the 26" and 30" models and up to 700 sq. ft. on the 36", 42" and 54" models.

Product Brochure

What’s Included

Lit split-wood log set, crushed glass media, wood chips, premium remote control with batteries, installation screws, screw covers, power grommet, power cover, suction cups and installation components.

Features

Virtual LCD Flame Technology – Next-generation LCD displays create multidimensional flames with improved contrast, deeper blacks and richer flame colors.
24 Flame Options – Includes 24 flame options across multiple flame styles and colors for a highly customizable fire presentation.
Over-the-Air Flame Updates – New flame styles, themes and visual experiences can be delivered through the Modern Flames + app.

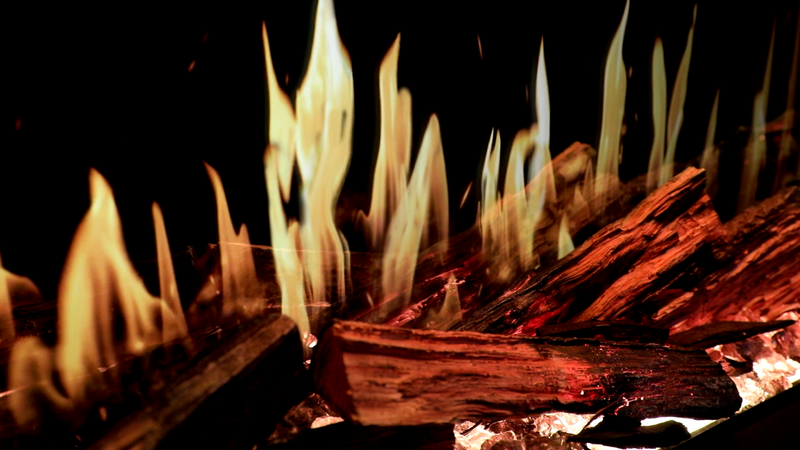

Real Split-Wood Lit Log Set – The Traditional model uses a lit log set crafted from real split wood for additional depth and realism.
Active Glowing Ember Bed – Adds movement, texture and customizable color beneath the log set for a layered fire presentation.
Adaptive Flame Brightness – Automatically adjusts flame brightness in response to changing ambient room lighting.
Built-In Premium Audio – Integrated speakers provide fireplace sound effects and support Bluetooth audio streaming from compatible devices.
Flexible Installation Options – Installs as a built-in clean face fireplace, self-trimming fireplace or retrofit replacement for an existing fireplace.
Smart PTC Ceramic Heating – Provides supplemental heat with thermostat control and output of up to 8,500 BTU on applicable 240V models.

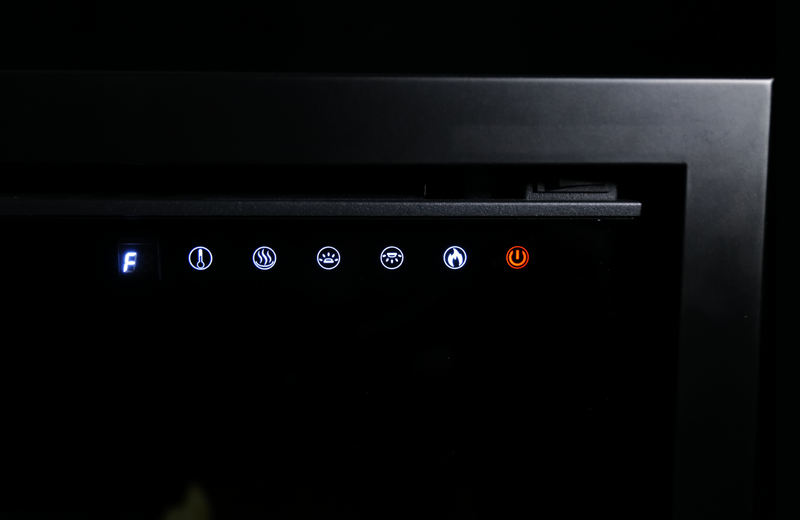

Remote and App Control – Control flame, lighting, heat and audio using the included premium remote or Modern Flames + smartphone app.

Dimensions

Model 26"

Overall Dimensions: 25" W X 19 5/8" H X 9 7/8" D
Framing Dimensions: 23" W X 18 3/4" H X 10 1/2" D Minimum
Viewing Area: 22 7/16" W X 17 1/16" H
Width: 26"

Model 30"

Overall Dimensions: 30 1/2" W X 19 5/8" H X 9 7/8" D
Framing Dimensions: 28 1/4" W X 18 3/4" H X 10 1/2" D Minimum
Viewing Area: 27 5/8" W X 17 1/16" H
Width: 30"

Model 36"

Overall Dimensions: 35" W X 24 13/16" H X 9 7/8" D
Framing Dimensions: 32 5/8" W X 23 7/8" H X 10 1/2" D Minimum
Viewing Area: 32 1/8" W X 22 3/16" H
Width: 36"

Model 42"

Overall Dimensions: 41" W X 27 13/16" H X 9 7/8" D
Framing Dimensions: 38 3/4" W X 26 3/4" H X 10 1/2" D Minimum
Viewing Area: 38 1/8" W X 25 3/16" H
Width: 42"

Model 54

Overall Dimensions: 53 3/8" W X 33 13/16" H X 9 7/8" D
Framing Dimensions: 50 15/16" W X 32 3/4" H X 10 1/2" D Minimum
Viewing Area: 50 3/8" W X 31 3/16" H
Width: 54"

Specifications

Model 26"

Fuel Type: Electric
Installation Type: Built In, Insert
Style: Traditional
BTU Output: 5,000 BTU
Heating Capacity: Heats up to 400 sq. ft.
Electrical Requirements: 26" and 30": 120V Plug-In, 120V Hardwired, 36", 42" and 54": 120V Plug-In, 120V Hardwired, 240V Hardwired
Voltage: 120V
Watts: 1,465W
Flame Technology: Virtual LCD
Flame Options: 24
Flame Styles: 4
Flame Colors Per Style: 6
Flame Speeds: 3
Adaptive Brightness: Yes
Downlight Colors: 10 Colors and Fade Mode
Downlight Brightness Levels: 5
Ember Bed Colors: 10 Colors and Fade Mode
Ember Bed Brightness Levels: 5
Log Set: Real Split-Wood Lit Log Set
Audio System: Built-In Speakers
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Sound Volume: Off, Low, Medium, High
Bluetooth Audio Streaming: Yes
Heater Type: PTC Ceramic Heater
Heat Settings: Off, Fan Only, Low, High
Thermostat Range: 68°F–88°F
Smartphone App: Modern Flames +
Over-the-Air Flame Updates: Yes
Remote Control: Included
Power Frequency: 60Hz
26" and 30" Maximum Heating Area: 400 sq. ft.
36", 42" and 54" Maximum Heating Area: 700 sq. ft.
Optional Surround Trim Kits: Available for 26", 30" and 36" models
26" Small Surround Trim Kit: OTK-OR26-SM
26" Large Surround Trim Kit: OTK-OR26-LG
30" Small Surround Trim Kit: OTK-OR30-SM
30" Large Surround Trim Kit: OTK-OR30-LG
36" Small Surround Trim Kit: OTK-OR36-SM
36" Large Surround Trim Kit: OTK-OR36-LG

Model 30"

Fuel Type: Electric
Installation Type: Built In, Insert
Style: Traditional
BTU Output: 5,000 BTU
Heating Capacity: Heats up to 400 sq. ft.
Electrical Requirements: 26" and 30": 120V Plug-In, 120V Hardwired, 36", 42" and 54": 120V Plug-In, 120V Hardwired, 240V Hardwired
Voltage: 120V
Watts: 1,465W
Flame Technology: Virtual LCD
Flame Options: 24
Flame Styles: 4
Flame Colors Per Style: 6
Flame Speeds: 3
Adaptive Brightness: Yes
Downlight Colors: 10 Colors and Fade Mode
Downlight Brightness Levels: 5
Ember Bed Colors: 10 Colors and Fade Mode
Ember Bed Brightness Levels: 5
Log Set: Real Split-Wood Lit Log Set
Audio System: Built-In Speakers
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Sound Volume: Off, Low, Medium, High
Bluetooth Audio Streaming: Yes
Heater Type: PTC Ceramic Heater
Heat Settings: Off, Fan Only, Low, High
Thermostat Range: 68°F–88°F
Smartphone App: Modern Flames +
Over-the-Air Flame Updates: Yes
Remote Control: Included
Power Frequency: 60Hz
26" and 30" Maximum Heating Area: 400 sq. ft.
36", 42" and 54" Maximum Heating Area: 700 sq. ft.
Optional Surround Trim Kits: Available for 26", 30" and 36" models
26" Small Surround Trim Kit: OTK-OR26-SM
26" Large Surround Trim Kit: OTK-OR26-LG
30" Small Surround Trim Kit: OTK-OR30-SM
30" Large Surround Trim Kit: OTK-OR30-LG
36" Small Surround Trim Kit: OTK-OR36-SM
36" Large Surround Trim Kit: OTK-OR36-LG

Model 36"

Fuel Type: Electric
Installation Type: Built In, Insert
Style: Traditional
BTU Output: 5,000 BTU, 8,500 BTU
Heating Capacity: Heats 400–700 sq. ft.
Electrical Requirements: 26" and 30": 120V Plug-In, 120V Hardwired, 36", 42" and 54": 120V Plug-In, 120V Hardwired, 240V Hardwired
Voltage: 120V, 240V
Watts: 1,465W, 2,500W
Flame Technology: Virtual LCD
Flame Options: 24
Flame Styles: 4
Flame Colors Per Style: 6
Flame Speeds: 3
Adaptive Brightness: Yes
Downlight Colors: 10 Colors and Fade Mode
Downlight Brightness Levels: 5
Ember Bed Colors: 10 Colors and Fade Mode
Ember Bed Brightness Levels: 5
Log Set: Real Split-Wood Lit Log Set
Audio System: Built-In Speakers
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Sound Volume: Off, Low, Medium, High
Bluetooth Audio Streaming: Yes
Heater Type: PTC Ceramic Heater
Heat Settings: Off, Fan Only, Low, High
Thermostat Range: 68°F–88°F
Smartphone App: Modern Flames +
Over-the-Air Flame Updates: Yes
Remote Control: Included
Power Frequency: 60Hz
26" and 30" Maximum Heating Area: 400 sq. ft.
36", 42" and 54" Maximum Heating Area: 700 sq. ft.
Optional Surround Trim Kits: Available for 26", 30" and 36" models
26" Small Surround Trim Kit: OTK-OR26-SM
26" Large Surround Trim Kit: OTK-OR26-LG
30" Small Surround Trim Kit: OTK-OR30-SM
30" Large Surround Trim Kit: OTK-OR30-LG
36" Small Surround Trim Kit: OTK-OR36-SM
36" Large Surround Trim Kit: OTK-OR36-LG

Model 42"

Fuel Type: Electric
Installation Type: Built In, Insert
Style: Traditional
BTU Output: 5,000 BTU, 8,500 BTU
Heating Capacity: Heats 400–700 sq. ft.
Electrical Requirements: 26" and 30": 120V Plug-In, 120V Hardwired, 36", 42" and 54": 120V Plug-In, 120V Hardwired, 240V Hardwired
Voltage: 120V, 240V
Watts: 1,465W, 2,500W
Flame Technology: Virtual LCD
Flame Options: 24
Flame Styles: 4
Flame Colors Per Style: 6
Flame Speeds: 3
Adaptive Brightness: Yes
Downlight Colors: 10 Colors and Fade Mode
Downlight Brightness Levels: 5
Ember Bed Colors: 10 Colors and Fade Mode
Ember Bed Brightness Levels: 5
Log Set: Real Split-Wood Lit Log Set
Audio System: Built-In Speakers
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Sound Volume: Off, Low, Medium, High
Bluetooth Audio Streaming: Yes
Heater Type: PTC Ceramic Heater
Heat Settings: Off, Fan Only, Low, High
Thermostat Range: 68°F–88°F
Smartphone App: Modern Flames +
Over-the-Air Flame Updates: Yes
Remote Control: Included
Power Frequency: 60Hz
26" and 30" Maximum Heating Area: 400 sq. ft.
36", 42" and 54" Maximum Heating Area: 700 sq. ft.
Optional Surround Trim Kits: Available for 26", 30" and 36" models
26" Small Surround Trim Kit: OTK-OR26-SM
26" Large Surround Trim Kit: OTK-OR26-LG
30" Small Surround Trim Kit: OTK-OR30-SM
30" Large Surround Trim Kit: OTK-OR30-LG
36" Small Surround Trim Kit: OTK-OR36-SM
36" Large Surround Trim Kit: OTK-OR36-LG

Model 54

Fuel Type: Electric
Installation Type: Built In, Insert
Style: Traditional
BTU Output: 5,000 BTU, 8,500 BTU
Heating Capacity: Heats 400–700 sq. ft.
Electrical Requirements: 26" and 30": 120V Plug-In, 120V Hardwired, 36", 42" and 54": 120V Plug-In, 120V Hardwired, 240V Hardwired
Voltage: 120V, 240V
Watts: 1,465W, 2,500W
Flame Technology: Virtual LCD
Flame Options: 24
Flame Styles: 4
Flame Colors Per Style: 6
Flame Speeds: 3
Adaptive Brightness: Yes
Downlight Colors: 10 Colors and Fade Mode
Downlight Brightness Levels: 5
Ember Bed Colors: 10 Colors and Fade Mode
Ember Bed Brightness Levels: 5
Log Set: Real Split-Wood Lit Log Set
Audio System: Built-In Speakers
Sound Modes: Normal, Starry Night, Stormy Night, Bluetooth
Sound Volume: Off, Low, Medium, High
Bluetooth Audio Streaming: Yes
Heater Type: PTC Ceramic Heater
Heat Settings: Off, Fan Only, Low, High
Thermostat Range: 68°F–88°F
Smartphone App: Modern Flames +
Over-the-Air Flame Updates: Yes
Remote Control: Included
Power Frequency: 60Hz
26" and 30" Maximum Heating Area: 400 sq. ft.
36", 42" and 54" Maximum Heating Area: 700 sq. ft.
Optional Surround Trim Kits: Available for 26", 30" and 36" models
26" Small Surround Trim Kit: OTK-OR26-SM
26" Large Surround Trim Kit: OTK-OR26-LG
30" Small Surround Trim Kit: OTK-OR30-SM
30" Large Surround Trim Kit: OTK-OR30-LG
36" Small Surround Trim Kit: OTK-OR36-SM
36" Large Surround Trim Kit: OTK-OR36-LG

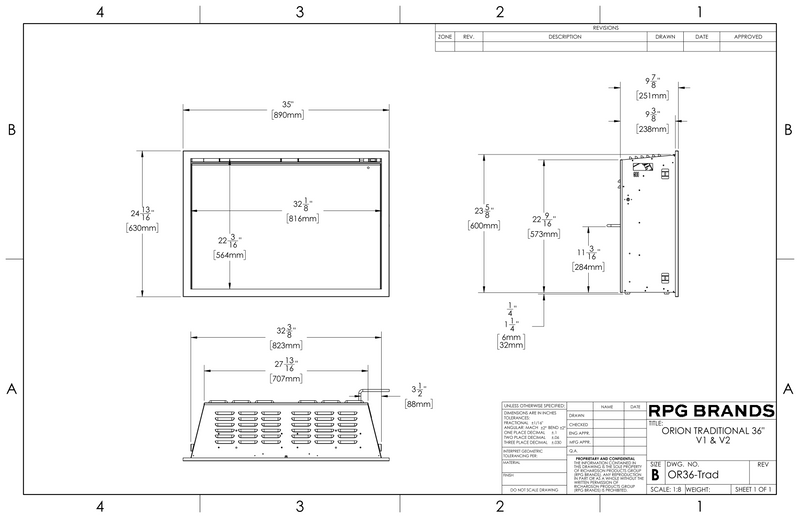

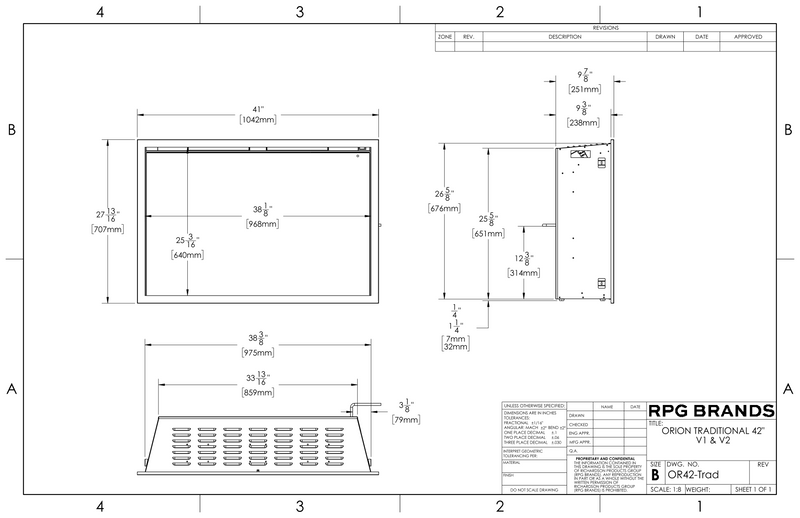

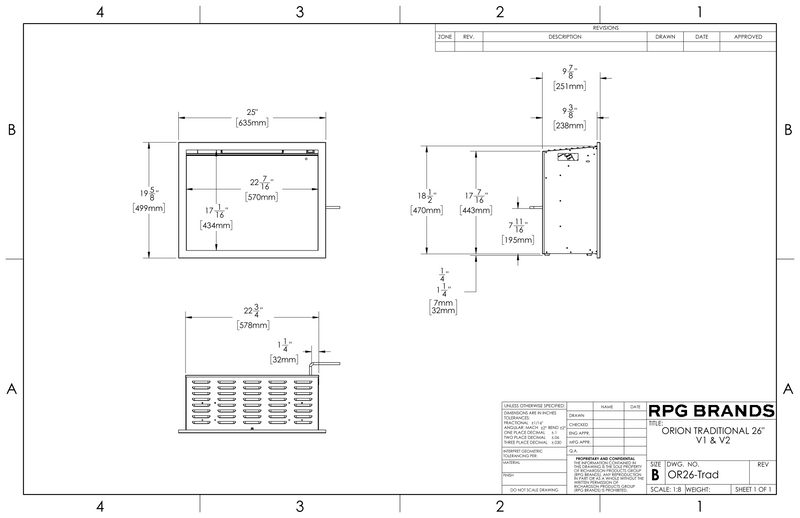

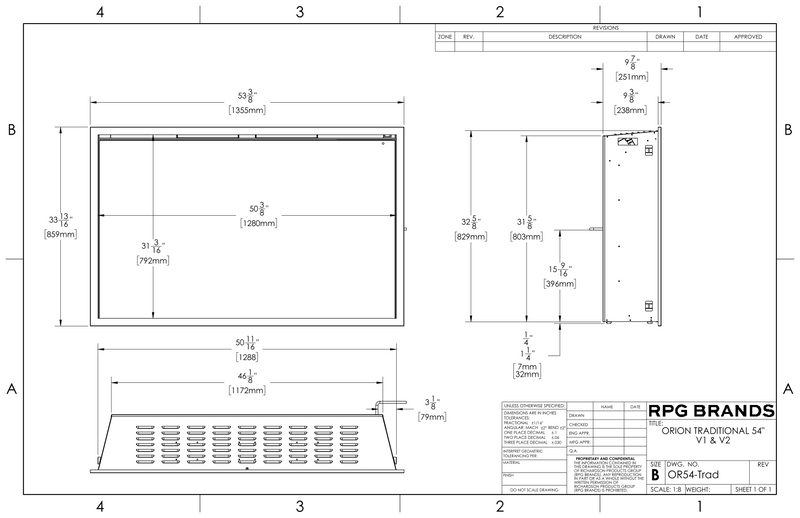

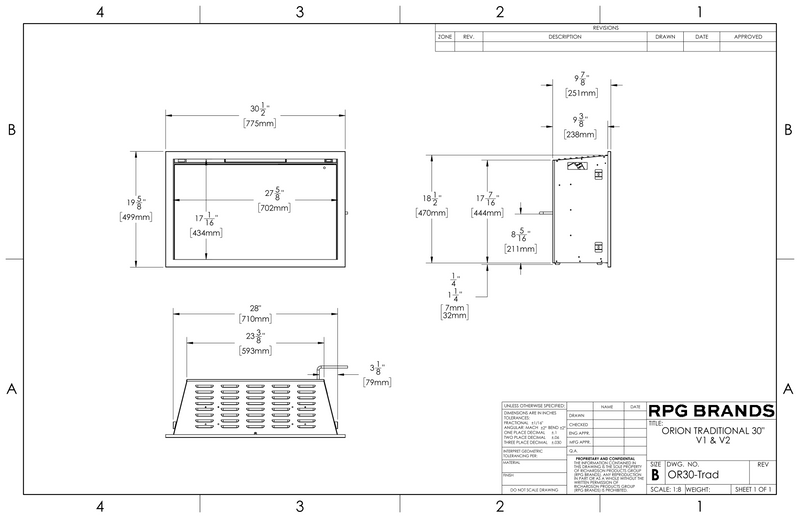

Technical Drawings

Specification Sheet 26" Specification Sheet 30" Specification Sheet 36" Specification Sheet 42" Specification Sheet 54

Installation Manual

Installation Manual Modern Flames Orion V2 Traditional Built In Electric Fireplace

"Extreme professionalism and knowledgeable staff. We enjoyed working with them and have done many orders !!"

Home Expo Center Residential installation Verified

"They took the time to walk me through the right fireplace options, making sure everything fit my needs, requirements, and local building codes."

Peter D. Commercial installation Verified

"The process was simple from start to finish."

Peter D. Commercial installation Verified

"Highly recommend"

Home Expo Center Residential installation Verified

Modern Flames Orion V2 Traditional Built In Electric Fireplace

Combines highly realistic virtual LCD flames and a lit wood log set with the flexibility to install as a clean-face built in fireplace or retrofit into an existing fireplace opening.

Assigned concierge

Expert support

Order confidence

Nationwide delivery

Trade support

Spec-first guidance

Freight coordination

Assigned concierge

Expert support

Order confidence

Nationwide delivery

Trade support

Spec-first guidance

Freight coordination

Should You Choose Electric, Gas or Wood?

Electric — Easy installation with no venting required
Gas — Realistic flames with stronger heat output
Wood — Traditional fire experience and natural warmth

Do You Need a Built In, Insert or Wall Mounted Fireplace?

Built in — Will have to carve out new framing to create a seamless install
Insert — Fits into an existing fireplace and then has surround to cover gaps
Wall mounted — mount on wall with provided wall mounting

What Size Fireplace Will Fit Your Space?

Measure the available wall, opening or framed space
Compare overall, viewing and framing dimensions
Leave the required clearances around the fireplace

How Much Heat Does Your Room Need?

Compare BTU output or advertised heating coverage
Decide whether you want ambiance or supplemental heat
Larger rooms may require a higher-output fireplace

What Flame Style Best Matches Your Room?

Traditional logs provide a classic fireplace appearance
Glass media creates a cleaner, more contemporary look
Adjustable flame colors and lighting add customization

Are You Mounting a TV Above the Fireplace?

Check the required mantel and television clearances
Look for heat-management or cool-touch options
Confirm finishing-material requirements before framing

What Venting, Power or Utilities Are Required?

Confirm the vent type, gas connection or electrical service
Check voltage, amperage and dedicated-circuit requirements
Review the installation manual before framing begins

Do You Have Every Required Component?

Add all required options in the options list
Our team can review your configuration before processing
Checkout with full confidence thru our secured system

Shop now

ORDER WITH CONFIDENCE

Not sure everything will work together?

We’ll review your order before processing to confirm compatibility, fit, and required components—so you can order with confidence and avoid costly installation surprises.

Speak to one of our fireplace specialist now

Choose your fireplace

Browse the collection and select the style, size, and fuel type that fits your project.

Confirm your options

Reach out to our team to review your order and confirm that the selected components work together.

Place your order

We have secure checkout, so you can place your order with confidence.

Receive your order

Your fireplace ships securely with tracking and freight-delivery coordination.

Shop now

Need clarity before ordering?

Frequently asked questions

What kind of fireplace is this?

Modern Flames

Traditional

Built In
Insert

Electric

What is included with the product?

Lit split-wood log set, crushed glass media, wood chips, premium remote control with batteries, installation screws, screw covers, power grommet, power cover, suction cups and installation components.

How will my order be delivered?

Most large products are delivered by freight with curbside service. Tracking and delivery information will be provided once the order ships. Inspect the shipment upon arrival and report visible or concealed damage within 48 hours.

What is your return policy?

Most unused and uninstalled products may be returned within 30 days with prior authorization. Approved buyer's-remorse returns are subject to a 25% restocking fee, and the customer is responsible for return shipping costs. Products must remain unused, uninstalled, unassembled and in their original packaging. See our full Return & Refund Policy for complete terms.

How do I know if this product is right for my project?

Send us your measurements, project plans, photos, or current model information. Our team can review the product specifications and help confirm whether it is appropriate for your space before you place the order.

Click here to read our full FAQ

Let's get it right the first time

We pride ourselves on making fireplaces sourcing and ordering process as easy as possible.

If we get it wrong, we will make it right. Let's take the next step to a warmer home together.

Call Today for Exclusive Phone-Order Offers

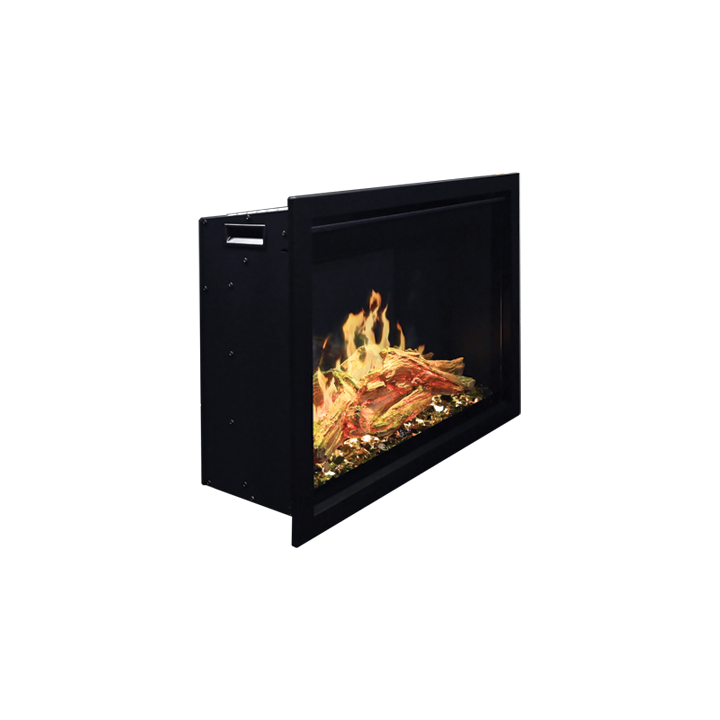

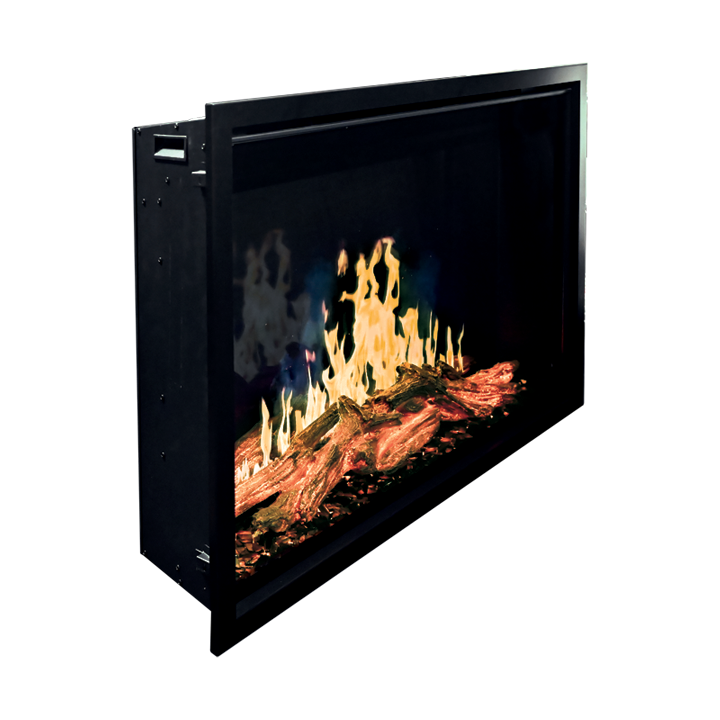

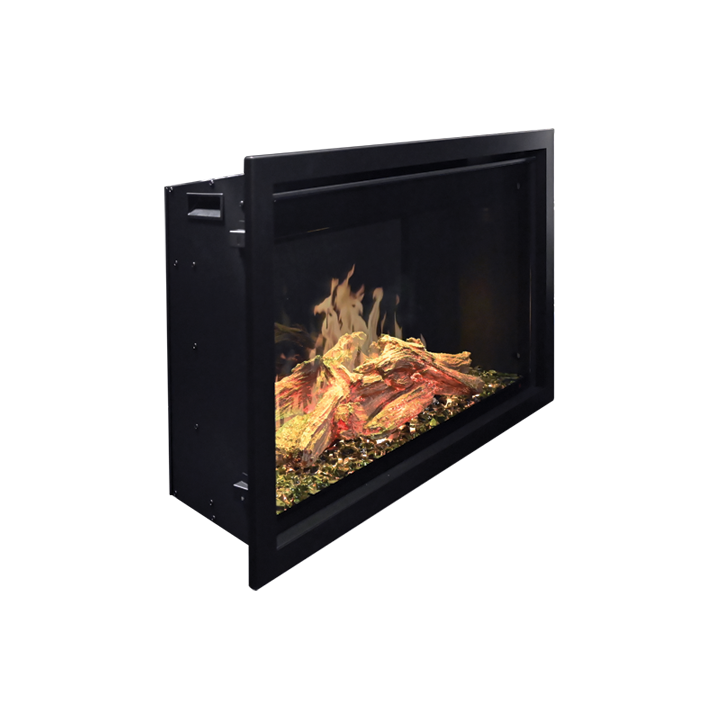

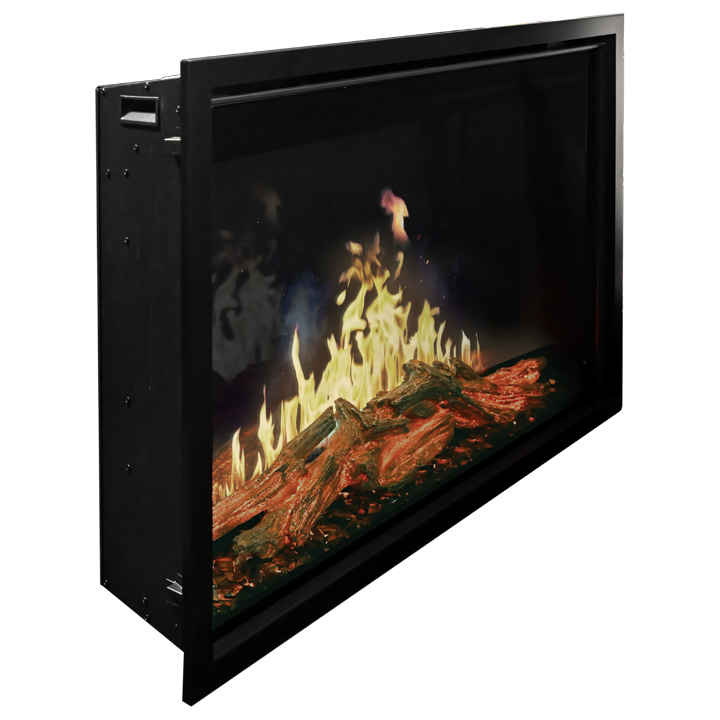

Modern Flames Orion V2 Traditional Built In Electric Fireplace

$2,499.00

Price: $2,499.00

Modern Flames Orion V2 Traditional Built In Electric Fireplace

Modern Flames Orion V2 Traditional Built In Electric Fireplace

What People Say About Us!

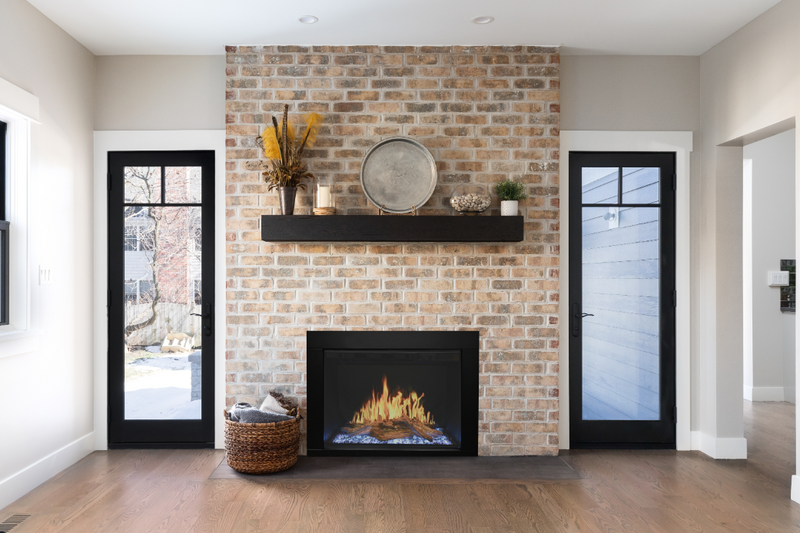

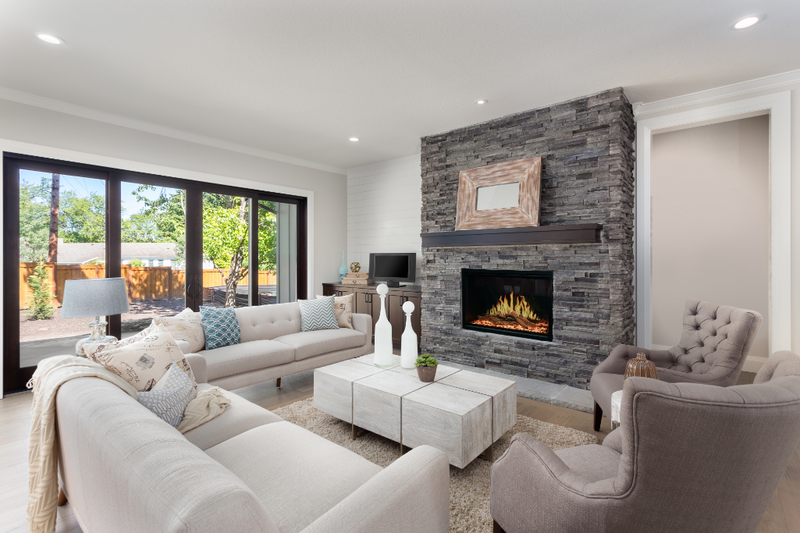

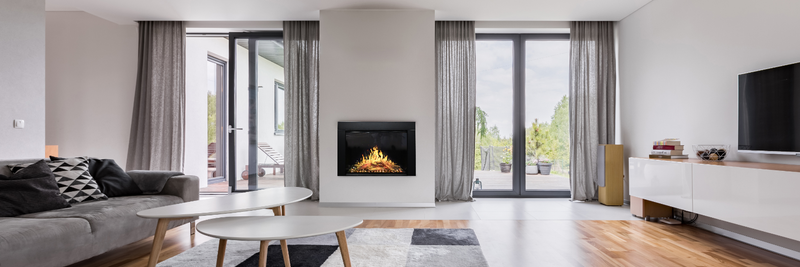

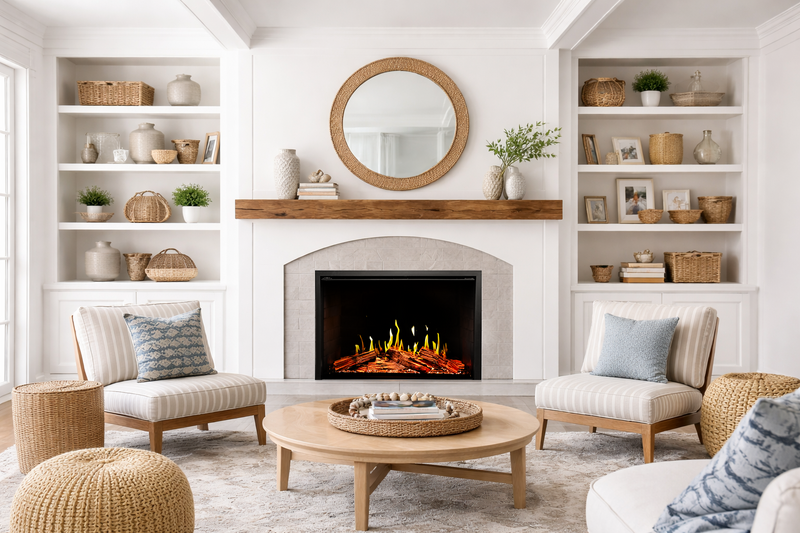

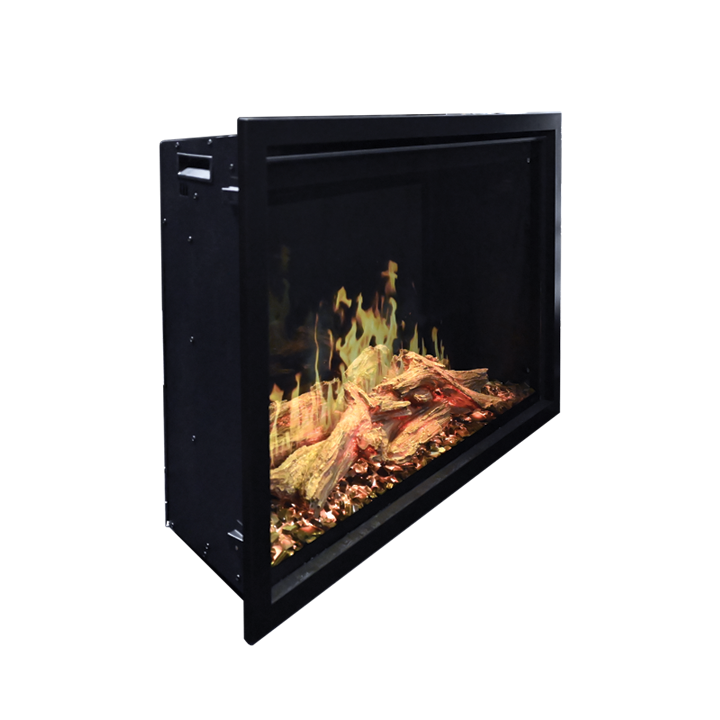

Combines highly realistic virtual LCD flames and a lit wood log set with the flexibility to install as a clean-face built in fireplace or retrofit into an existing fireplace opening.
