Napoleon Elevation X Built In Electric Fireplace
Napoleon Elevation X Built In Electric Fireplace
Original price
$3,889.00
-
Original price
$4,649.00
Original price
$3,889.00
$3,889.00
-
$4,649.00
Current price
$3,889.00
Enjoy the look, depth, and sound of a traditional fire with the Elevation X’s realistic LCD flames, glowing split oak logs, and built-in crackling audio — without the need for gas or venting.
Available to order
Talk to a Specialist Now
Speak with a product specialist before you order.
Description
The Napoleon Elevation X Built In Electric Fireplace is a fully recessed electric fireplace available in 36-inch and 42-inch models. Its LCD rear panel and multi-layered flame technology create wood- and gas-style flame presentations, paired with premium glowing split oak logs, a modulating ember bed, and built-in speakers with crackling fire sounds. No chimney or venting is required, and the fireplace shares rough framing with Elevation Series gas models.
Heating operates on 120V or 240V, delivering 5,000 BTU at 120V and 10,000 BTU at 240V, with ECO and Boost modes for added control. The unit can be plugged in or hardwired, and settings can be managed from the included remote, onboard controls, Napoleon Home app, or compatible Google Home and Alexa devices. Top-light and ember-bed settings provide additional display customization.
What’s Included
- Full-function infrared remote control, premium glowing split oak log set, frameless finishing flange, adjustable finishing trim, manual, gloves, and hardware baggie with wood screws, strain reliefs, ST4x12 metal screws, plastic caps, and cover plate.
Features

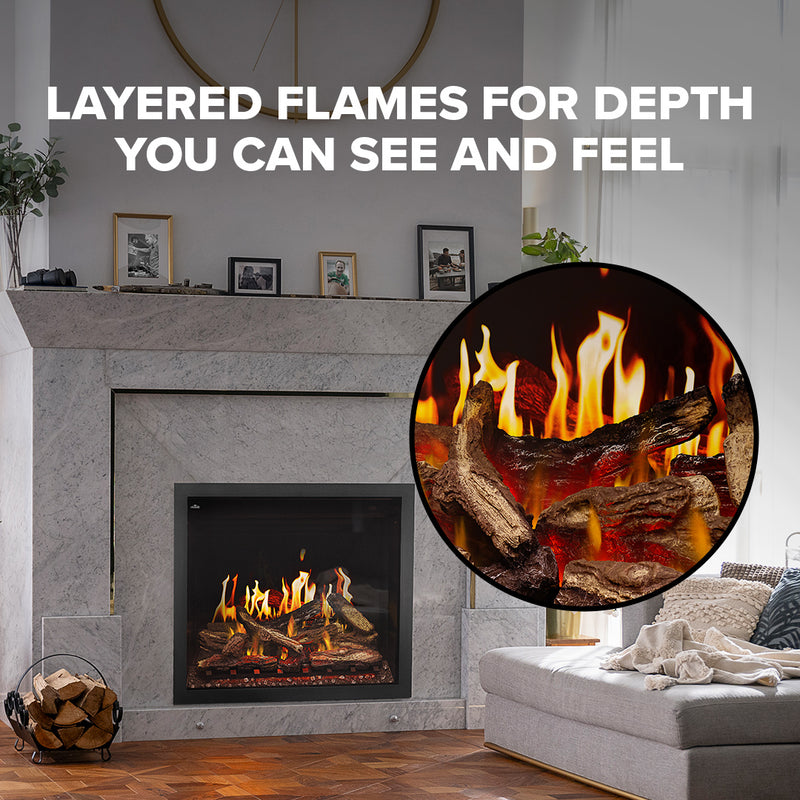

- Advanced LCD Flame Technology – An LCD rear panel and multi-layered flame technology create dimensional flame movement with multiple layers of visual depth.

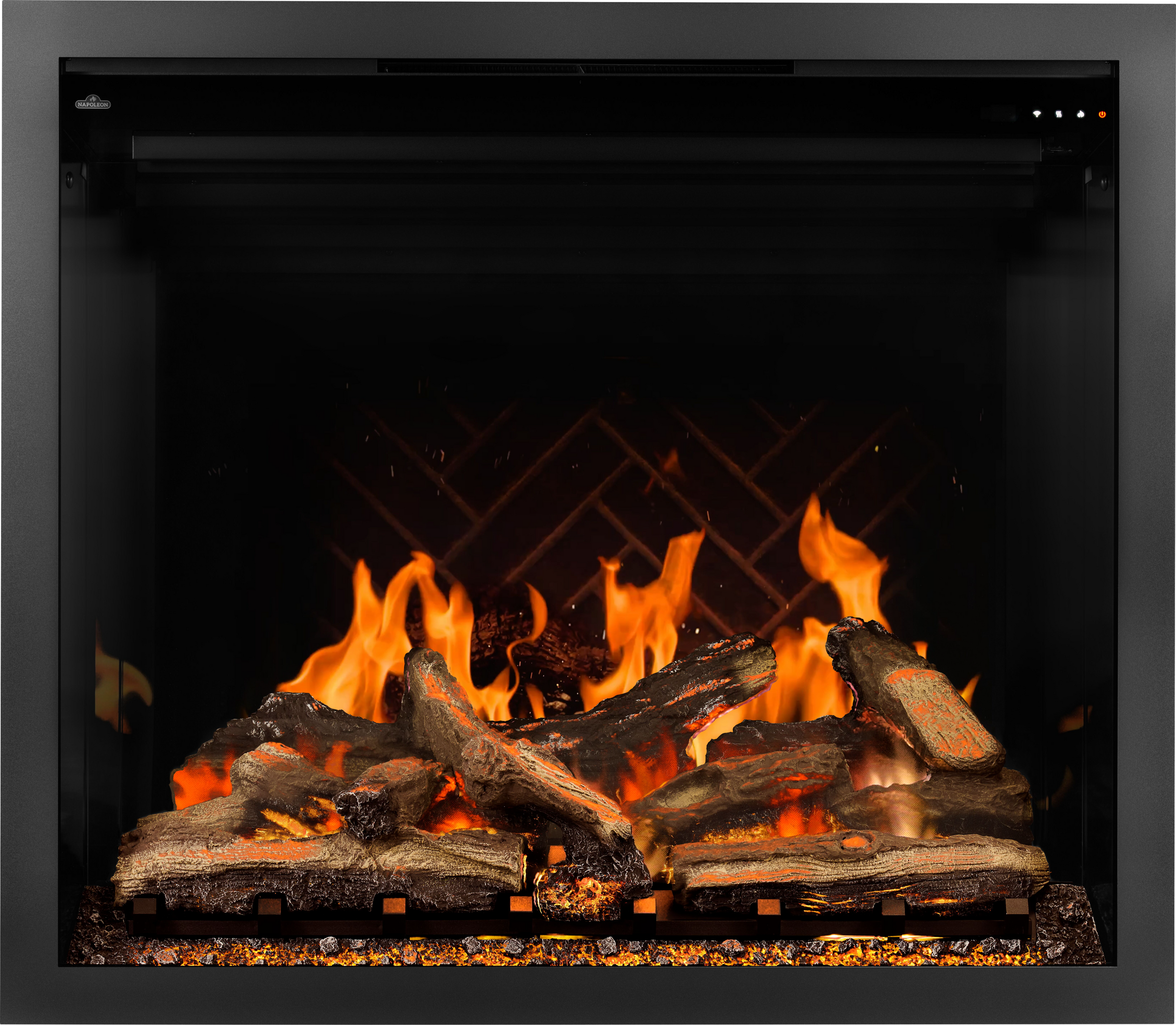

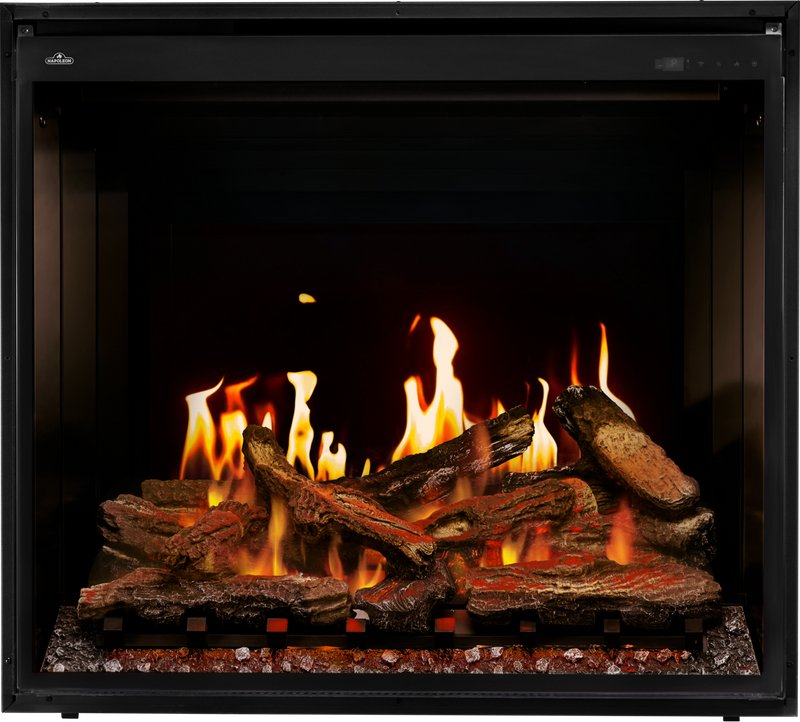

- Wood and Gas Flame Styles – Select between Wood Style and Gas Style flame presentations or turn the flame effect off.

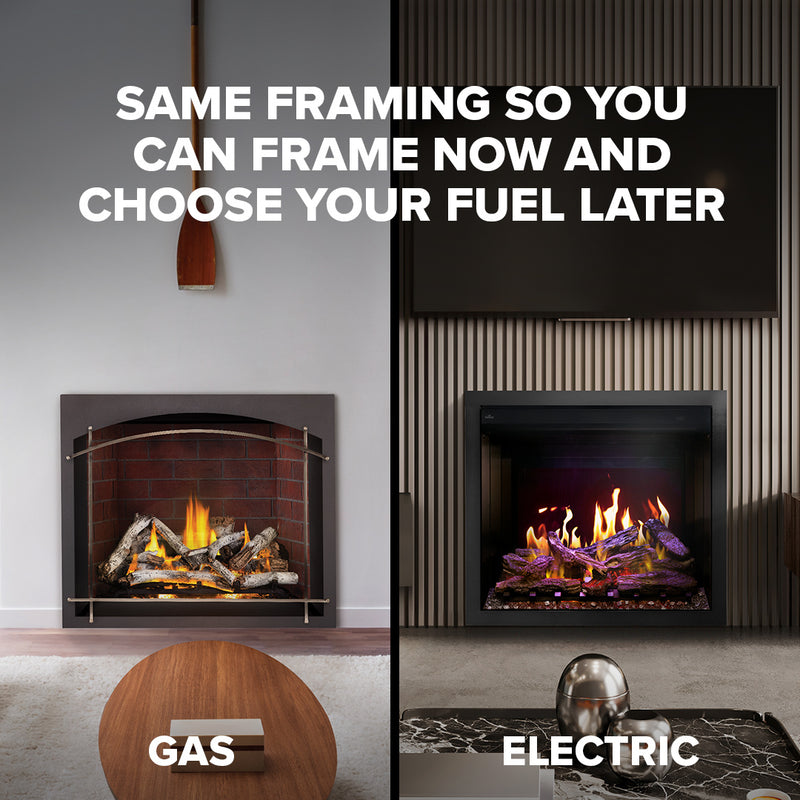

- Shared Elevation Framing – Uses the same rough framing concept as Elevation Series gas fireplaces, allowing the project to be framed before the final fuel choice is made.
- No Venting Required – Electric operation eliminates the need for a chimney or exterior venting.
- 5,000–10,000 BTU Heating – Delivers 5,000 BTU on 120V and 10,000 BTU when connected to 240V.
- ECO and Boost Modes – ECO operates the heater at half output, while Boost runs the heater at maximum output with increased blower speed.

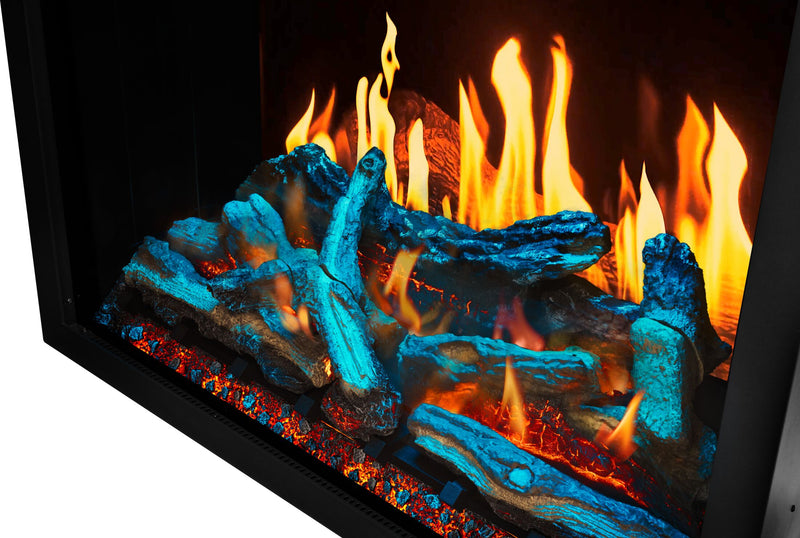

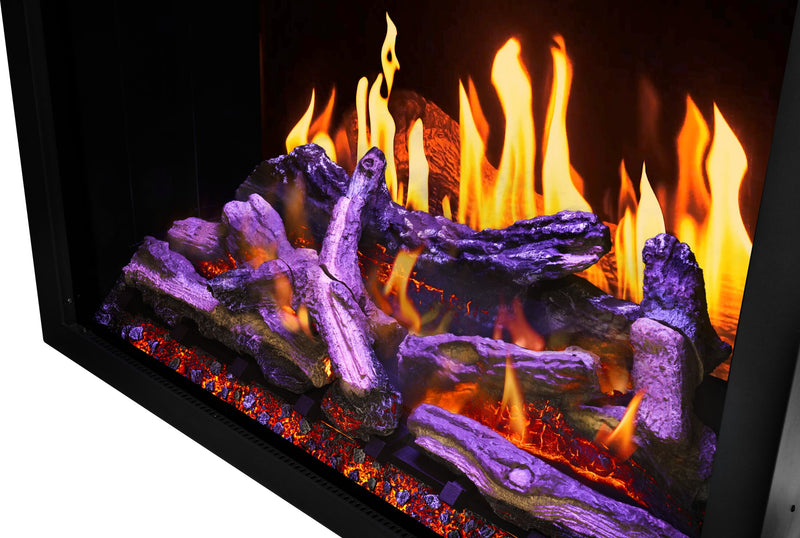

- Customizable Lighting – Choose from 13 top-light color options and multiple ember-bed colors, with additional customization available through the Napoleon Home app.
- Premium Glowing Split Oak Logs – Included split oak media and a modulating ember bed add depth to the fire presentation.
- Built-In Fire Sounds – Integrated speakers reproduce crackling and popping sounds coordinated with the flame presentation.

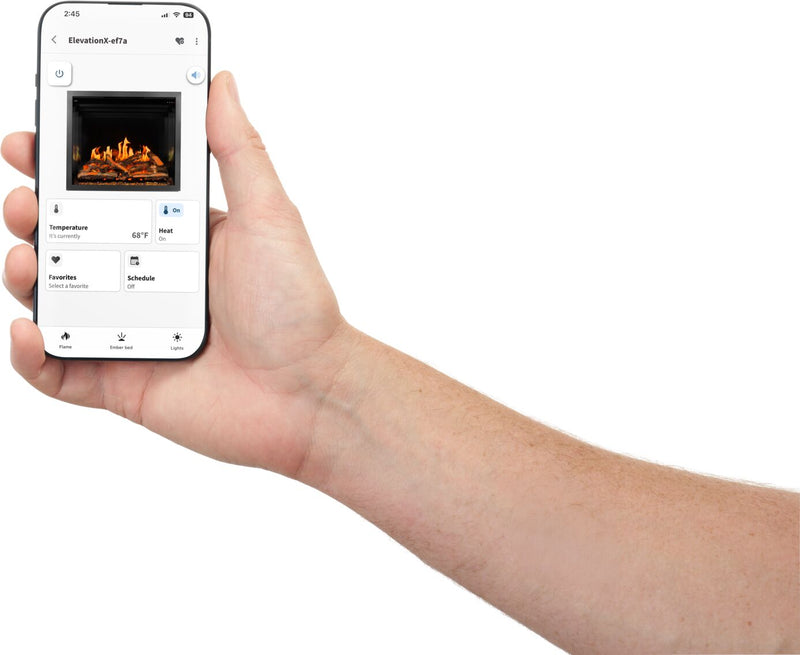

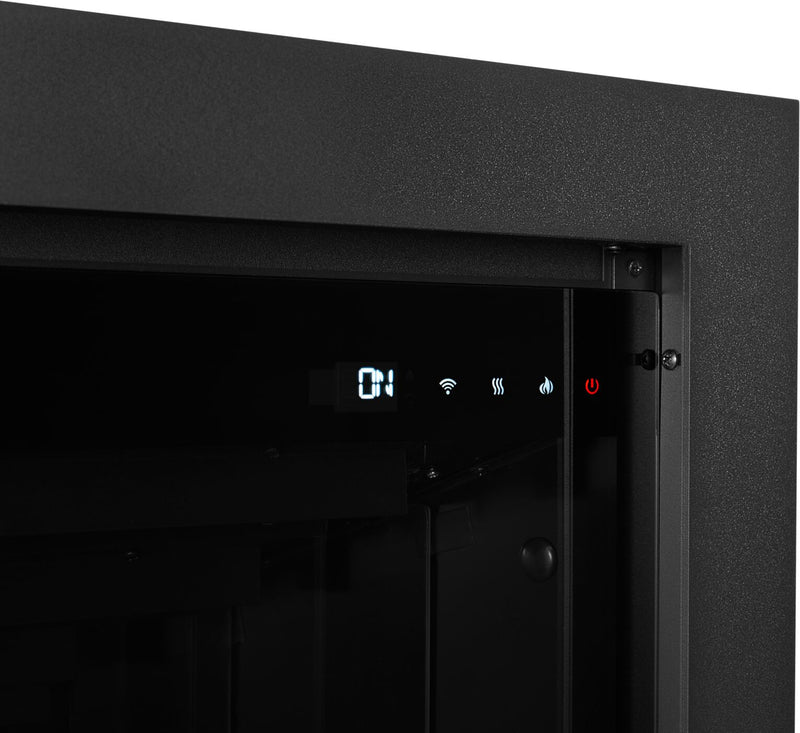

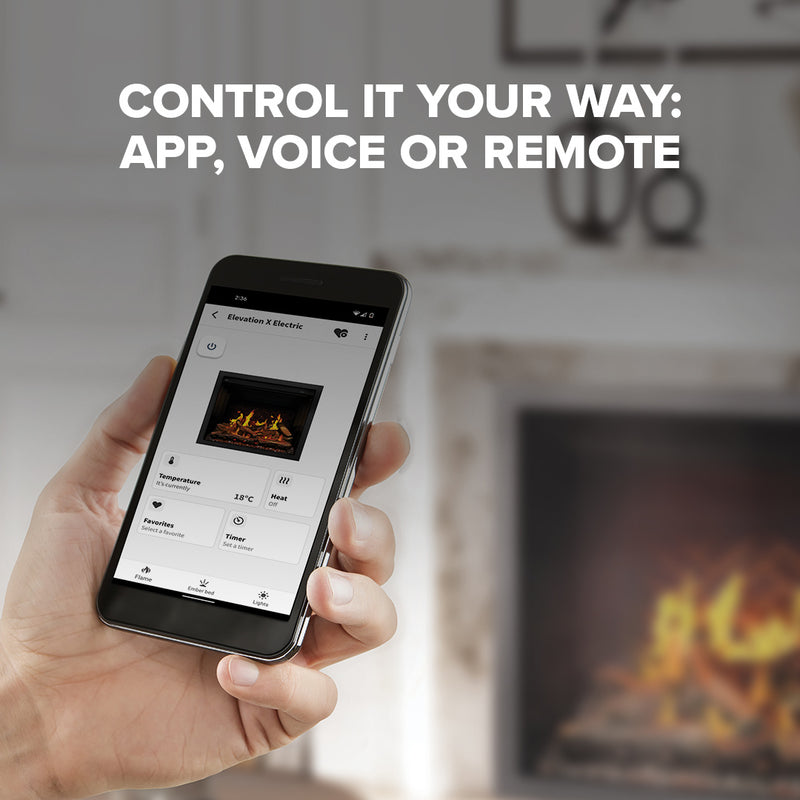

- Multiple Control Methods – Operate the fireplace using the onboard controls, included infrared remote, Napoleon Home app, or select voice functions through Google Home and Alexa.

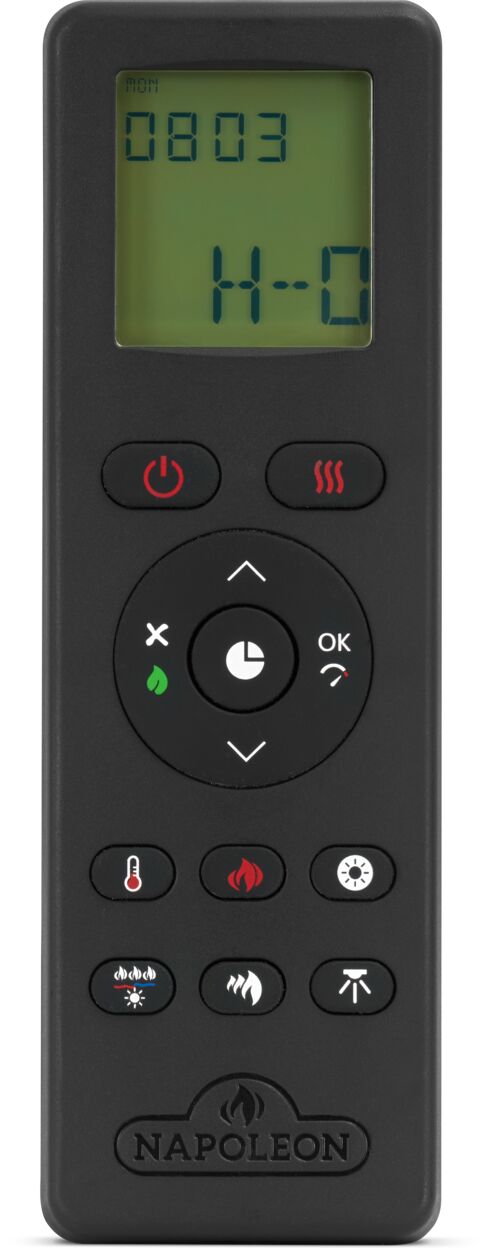

- Programmable Comfort Controls – The remote provides thermostat adjustment, 7-day scheduling, ECO and Boost operation, lighting controls, and an open-window alert.
Dimensions
Model NEFB36LCD-MF - 36"
- Overall Dimensions
- 39" W X 35 3/16" H X 16 5/8" D
- Framing Dimensions
- 39 3/4" W X 35 9/16" H X 16 7/8" D
- Viewing Area
- 35 3/4" W X 29 1/16" H
- Width
- 36"
Model NEFB42LCD-MF - 42"
- Overall Dimensions
- 44 13/16" W X 39 5/16" H X 16 7/8" D
- Framing Dimensions
- 45 3/4" W X 39 9/16" H X 16 7/8" D
- Viewing Area
- 41 3/4" W X 33 1/16" H
- Width
- 42"
Specifications
Model NEFB36LCD-MF - 36"
- Fuel Type
- Electric
- Vent Type
- Vent Free
- Installation Type
- Built In
- Style
- Traditional
- Weight
- 170.4 lbs
- BTU Output
- 5,000 BTU, 10,000 BTU
- Electrical Requirements
- 120V Plug-In, 240V Hardwired
- Voltage
- 120V, 240V
- Amps
- 15 Amps
- Watts
- 1,465W, 2,930W
- Flame Styles
- Gas Style, Wood Style, Flame Off
- Flame Layers
- 1–3 Active Layers
- Flame Brightness
- 3 Levels Plus Off
- Ember Bed Colors
- Scarlet, Tangerine, Red, Dark Orange, Yellow
- Ember Bed Brightness
- 4 Levels, Pulsing, or Off
- Top Light Colors
- 13 Color Options Plus Cycle
- Heat Modes
- Off, Fan Only, On, ECO, Boost
- Thermostat Range
- 64°F–82°F
- Timer Programming
- 7-Day / 24-Hour
- Open Window Alert
- Yes
- Audio
- Built-In Crackling and Popping Fire Sounds
- Audio Volume Control
- Napoleon Home App Only
- Mobile App Compatibility
- Android 9.0 or iOS 15.0
- Optional Controller
- Wall-Mount Controller
- Frequency
- 60Hz
- Warranty
- 5 Year Limited Warranty
Model NEFB42LCD-MF - 42"
- Fuel Type
- Electric
- Vent Type
- Vent Free
- Installation Type
- Built In
- Style
- Traditional
- Weight
- 208.1 lbs
- BTU Output
- 5,000 BTU, 10,000 BTU
- Electrical Requirements
- 120V Plug-In, 240V Hardwired
- Voltage
- 120V, 240V
- Amps
- 15 Amps
- Watts
- 1,465W, 2,930W
- Flame Styles
- Gas Style, Wood Style, Flame Off
- Flame Layers
- 1–3 Active Layers
- Flame Brightness
- 3 Levels Plus Off
- Ember Bed Colors
- Scarlet, Tangerine, Red, Dark Orange, Yellow
- Ember Bed Brightness
- 4 Levels, Pulsing, or Off
- Top Light Colors
- 13 Color Options Plus Cycle
- Heat Modes
- Off, Fan Only, On, ECO, Boost
- Thermostat Range
- 64°F–82°F
- Timer Programming
- 7-Day / 24-Hour
- Open Window Alert
- Yes
- Audio
- Built-In Crackling and Popping Fire Sounds
- Audio Volume Control
- Napoleon Home App Only
- Mobile App Compatibility
- Android 9.0 or iOS 15.0
- Optional Controller
- Wall-Mount Controller
- Frequency
- 60Hz
- Warranty
- 5 Year Limited Warranty
