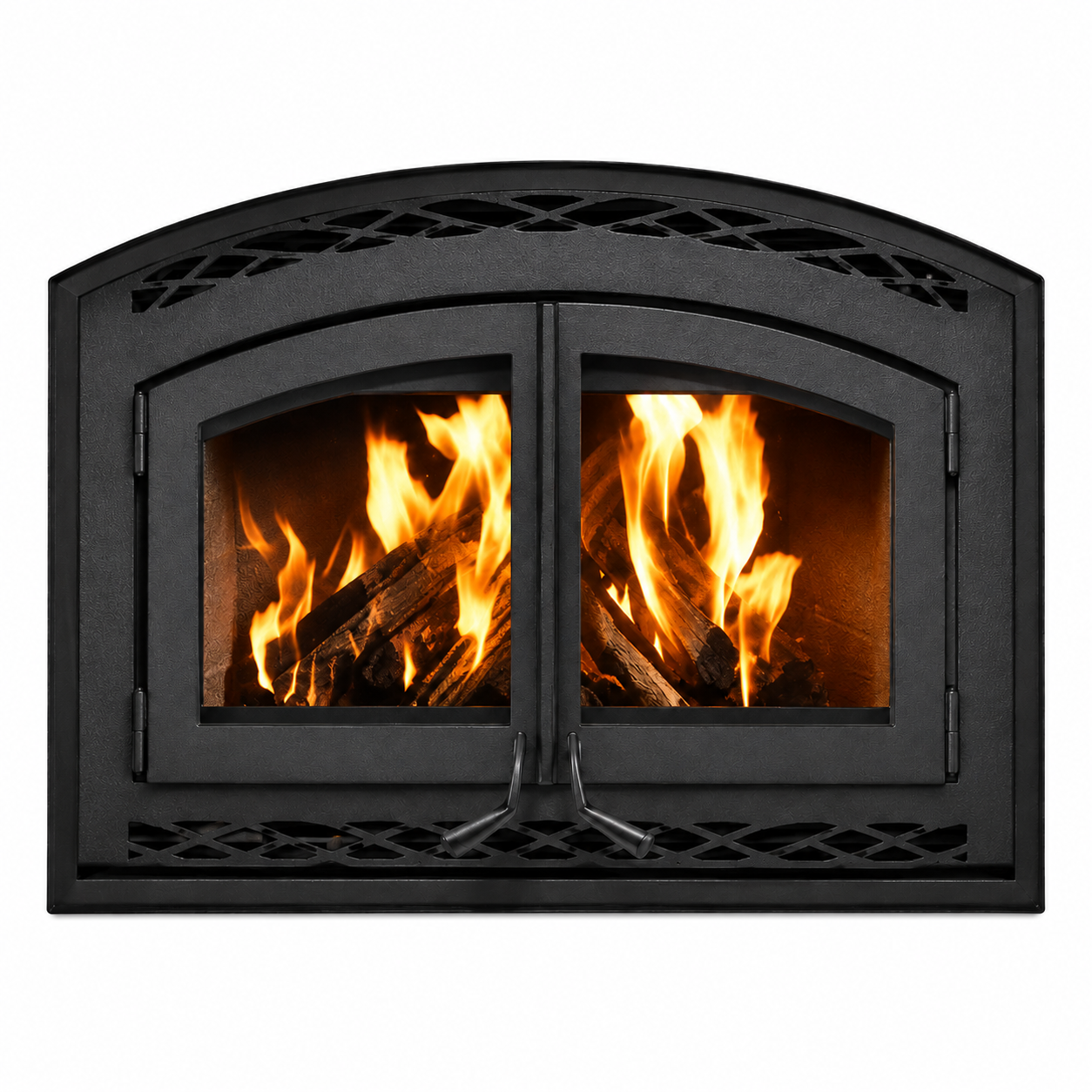

Superior WCT6940 High-Efficiency Wood-Burning Fireplace
Superior WCT6940 High-Efficiency Wood-Burning Fireplace
Original price
$9,349.00
-
Original price
$9,349.00
Original price
$9,349.00
$9,349.00
-
$9,349.00
Current price
$9,349.00
A spacious 4.0 cu. ft. insulated firebox accepts logs up to 30" and produces up to 80,000 BTU of supplemental wood heat for spaces up to approximately 2,500 sq. ft.
Available to order
Talk to a Specialist Now
Speak with a product specialist before you order.
Description
What’s Included
- WCT6940WS fireplace, catalytic combustor, catalytic bypass system and gauge, stacked textured refractory interior, decorative cast iron log retainers, ceramic glass system, UZY5 heat-activated blower, VRUW variable-speed blower control, insulated outside-air kit, factory burner/combustion components, and fireplace installation hardware.

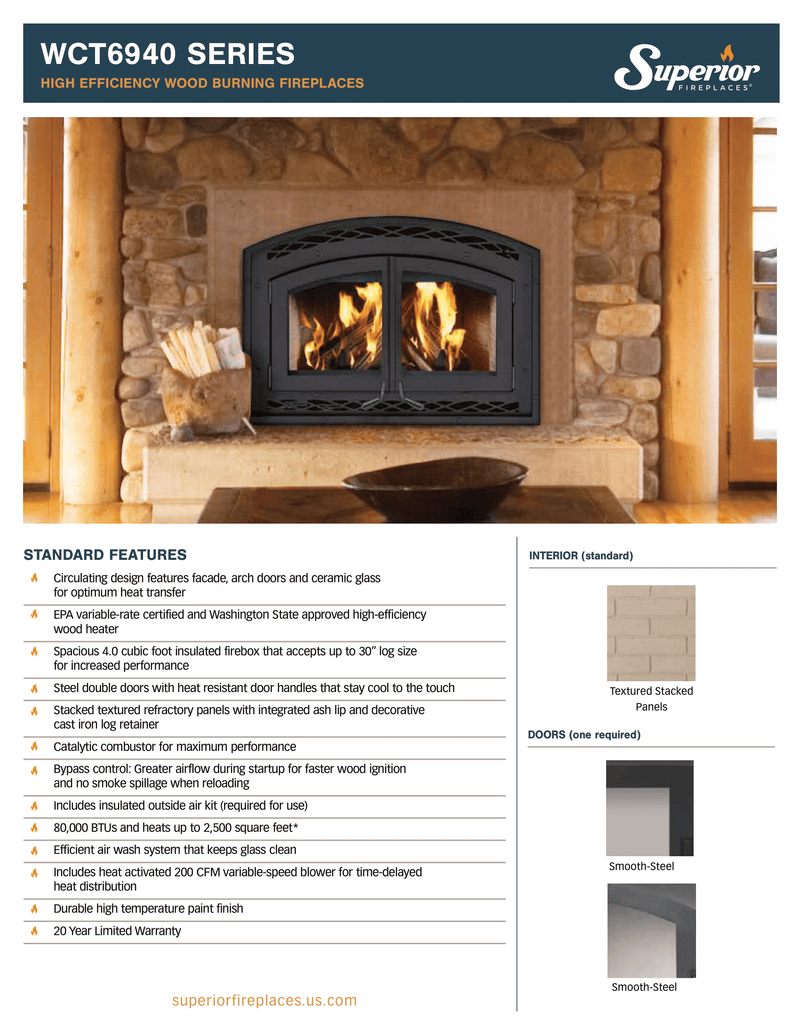

Features
- 4.0 Cu. Ft. Insulated Firebox – Spacious firebox accommodates logs up to 30" long.
- Up to 80,000 BTU – Delivers substantial supplemental wood heat for larger living areas.
- Heats Up To Approximately 2,500 Sq. Ft. – Designed for substantial supplemental heating depending on home design, climate, fuel, and operating conditions.
- Catalytic Combustion System – Burns unburned wood-fire byproducts at lower temperatures to reduce pollution, reduce creosote, and improve efficiency.
- Bypass Control – Increases draft during cold startup and helps prevent smoke spillage when the doors are opened for reloading.
- Heat-Activated Variable-Speed Blower Included – Automatically helps distribute warm air from the fireplace into the room.
- Stacked Textured Refractory – Creates a traditional masonry-inspired firebox appearance with an integrated ash lip.
- Air-Wash System – Helps reduce deposits on the ceramic glass for a cleaner view of the fire.
- Variable Burn Control – Adjustable combustion control allows the fire and heat output to be regulated for different heating needs.
- Outside Air Kit Included – Required outside combustion-air components are supplied with the fireplace.
Dimensions
- Overall Dimensions
- 46-1/4" W X 49-3/8" H X 27" D
- Framing Dimensions
- 46-1/4" W X 50" H X 28-1/4" D
- Viewing Area
- 31" W X 15" H
Specifications
- Fuel Type
- Wood
- Vent Type
- Chimney
- Installation Type
- Built In
- Style
- Traditional
- Weight
- 520 lbs
- BTU Output
- Up To 80,000 BTU
- Heating Capacity
- Up To Approximately 2,500 Sq. Ft.
- Electrical Requirements
- 120V Hardwired
- Voltage
- 120V
- Series
- WCT6940
- Model
- WCT6940WS
- Catalog Number
- F2846
- Fireplace Type
- EPA High-Efficiency Wood-Burning Fireplace
- Combustion Type
- Closed Combustion
- Combustion System
- Catalytic and Secondary Air Combustion
- Firebox Type
- Insulated
- Firebox Volume
- 4.0 Cu. Ft.
- Maximum Log Size
- 30"
- Maximum Heat Output
- 80,000 BTU
- Heating Capacity
- Up To Approximately 2,500 Sq. Ft.
- Thermal Efficiency
- 70%
- EPA Emissions
- 1.3 g/hr
- Glass Type
- Ceramic Glass
- Viewing Area
- 31" W X 15" H
- Firebox Interior
- 31" W X 14-1/2" H X 14" D
- Catalytic Combustor
- Included
- Bypass Control
- Included
- Catalytic Bypass Gauge
- Included
- Combustion Control
- Variable
- Air-Wash System
- Included
- Refractory
- Stacked Textured Panels
- Ash Lip
- Integrated
- Log Retainer
- Decorative Cast Iron
- Outside Air Kit
- Included and Required
- Blower
- Included
- Blower Type
- Heat-Activated Variable-Speed
- Blower CFM
- Leave Blank – Manufacturer Documentation Conflict
- Blower Speed Control
- Included
- Electrical Supply
- 120V, 60 Hz
- Electrical Connection
- Hardwired
- Chimney Diameter
- 7"
- Gas Log Compatibility
- No
- Manufactured Home Approved
- No
- Forced Air Kit
- Optional
- Weight
- 520 lbs
